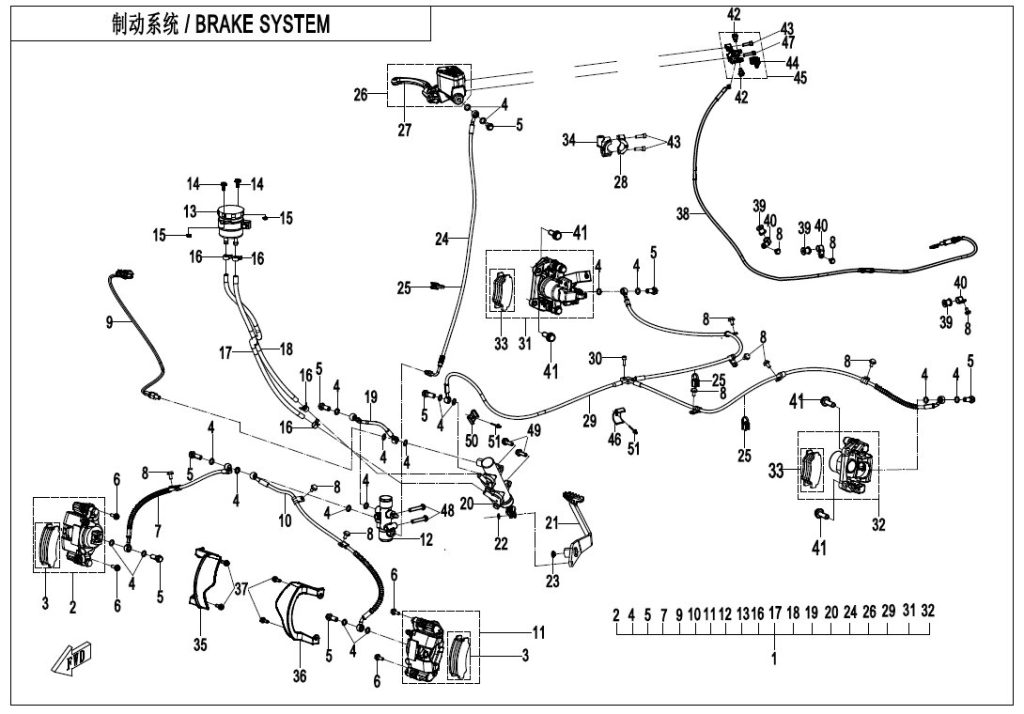

F08-B-V5 BRAKE SYSTEM(EU168)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HYDRAULIC BRAKE ASSY 9CQV-081000-3400 | Skladem | |||
| 2 | FRONT RH BRAKE CALIPER ASSY 9DQV-081400-3400 | Skladem | 3 884,10 Kč | ||
| 3 | BRAKE PAD ASSY 9DQV-0813A1 | Není skladem | 1 118,62 Kč | ||
| 4 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 5 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 6 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 7 | RH FRONT BRAKE FLUID HOSE 9DQV-080150-3400 | Skladem | 807,89 Kč | ||
| 8 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 9 | HYDRAULIC SINDUCTIVE SWITCH 7020-080010-40000 | Skladem | 699,14 Kč | ||
| 10 | LH FRONT BRAKE FLUID HOSE 9DQV-080140-3400 | Skladem | 807,89 Kč | ||
| 11 | FRONT LH BRAKE CALIPER ASSY 9DQV-081300-3400 | Skladem | 3 884,10 Kč | ||
| 12 | Rozdělovač brzd 9AWV-081070-4000 | Skladem | 2 283,85 Kč | ||
| 13 | FLUID RESERVOIR 9GQ0-080110 | Skladem | 543,77 Kč | ||
| 14 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 15 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 16 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 17 | RESERVOIR HOSE 2 9DQV-080102-3200 | Není skladem | 357,34 Kč | ||
| 18 | RESERVOIR HOSE 1 9DQV-080101-3200 | Není skladem | 170,90 Kč | ||
| 19 | FLUID HOSE, BRAKE MASTER CYLINDER 9DQV-080170-3400 | Skladem | 761,28 Kč | ||
| 20 | MASTER CYLINDER 9DQV-081800-3200 | Skladem | 2 967,45 Kč | ||
| 21 | BRAKE PEDAL ASSY 9DQV-080210-3200 | Není skladem | 450,56 Kč | ||
| 22 | Podložka 30304-140410 | Skladem | 15,54 Kč | ||
| 23 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 24 | FLUID HOSE, HAND BRAKE 9DQV-080130-3400 | Skladem | 916,65 Kč | ||
| 25 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 26 | MASTER CYLINDER ASSY., RH HAND BRAKE 9AY0-081200 | Skladem | 2 687,80 Kč | ||
| 27 | Brzdová páčka 9AY0-081225 | Skladem | 357,34 Kč | ||
| 28 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9AY0-080005 | Skladem | 174,24 Kč | ||
| 28 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9DQV-080005-3000 | Skladem | 124,29 Kč | ||
| 29 | REAR BRAKE FLUID HOSE 9CQV-080160-3400 | Skladem | 3 666,59 Kč | ||
| 30 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 31 | REAR RH BRAKE CALIPER 9DQV-081600-3201 | Skladem | 5 795,08 Kč | ||
| 32 | REAR LH BRAKE CALIPER 9DQV-081500-3201 | Skladem | 3 884,10 Kč | ||
| 33 | BRAKE PAD ASSY 9DQV-0815A1 | Skladem | 854,50 Kč | ||
| 34 | REAR VIEW MIRROR BRACKET 9DQV-080006-3400 | Skladem | 186,44 Kč | ||
| 35 | GUARD, FRONT RH CV JOINT 9DS#-080002-6001 | Skladem | 87,05 Kč | ||
| 36 | GUARD, FRONT LH CV JOINT 9DS#-080001-6001 | Skladem | 87,05 Kč | ||
| 37 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 38 | PARKING CABLE, REAR BRAKE 9CQV-080300-3400 | Skladem | 761,28 Kč | ||
| 39 | RUBBER, FUEL PIPE 9030-180008 | Skladem | 15,54 Kč | ||
| 40 | FIXING CLIP 9AWA-080004 | Skladem | 62,15 Kč | ||
| 41 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 42 | PIN, PARKING BRAKE LEVER 9DSV-080260-6H03-23 | Skladem | 46,61 Kč | ||
| 43 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 44 | PARKING HANDLE 9DSV-080260-6H02-20 | Není skladem | 1 152,42 Kč | ||
| 45 | RH PARKING HANDLE 9DSV-080260-6H03 | Skladem | 1 351,67 Kč | ||
| 46 | PLASTIC CLASP 1 9DQV-080001-3000 | Skladem | 31,07 Kč | ||
| 47 | INNER HEX SCREW 30102-060030870 | Není skladem | 15,54 Kč | ||
| 48 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 49 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 50 | PLASTIC CLASP 3 9DQV-080003-3000 | Skladem | 31,07 Kč | ||
| 51 | BLIND RIVET 30902-0400820 | Skladem | 15,54 Kč | ||
