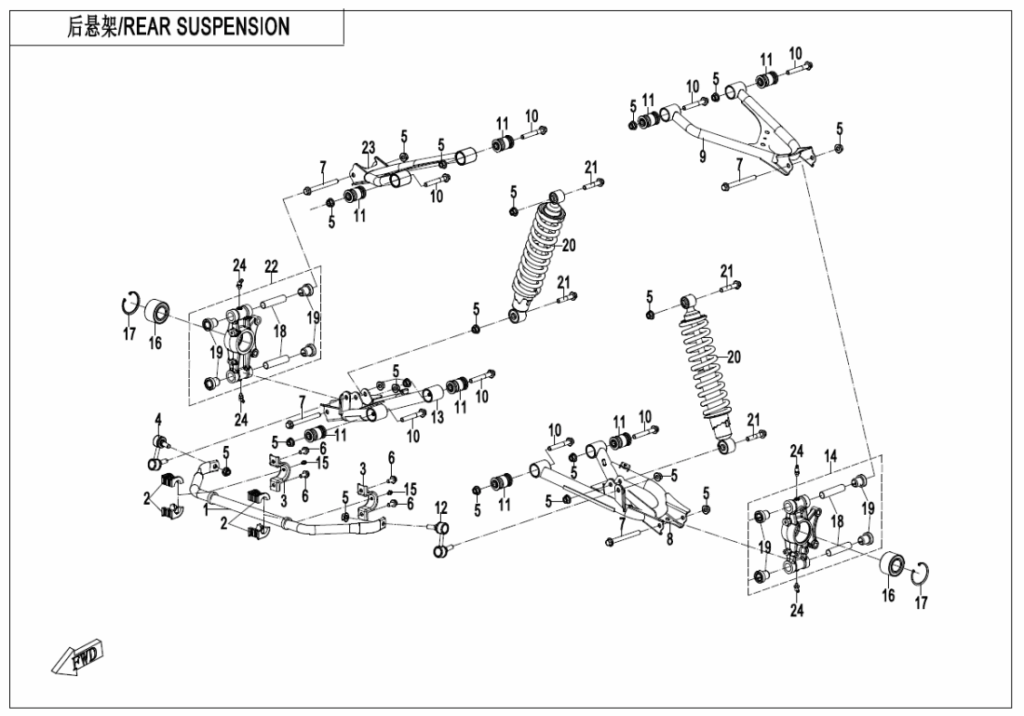

F06 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | REAR SWAY BAR ASSY 9DQV-060610-3000 | Skladem | 1 227,38 Kč | ||
| 2 | SUPPORT, STABILIZER BAR 9GQ0-060003 | Skladem | 87,05 Kč | ||
| 3 | COVER, STABILIZER BAR 9GQ0-060601-00001 | Skladem | 62,15 Kč | ||
| 4 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 4 | RH BALL PIN ASSY 9DQV-060800-3000-M2 | Není skladem | 699,14 Kč | ||
| 5 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 6 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 7 | Šroub 30006-102100810 | Skladem | 72,54 Kč | ||
| 8 | REAR LH LOWER SWING ARM ASSY 9DQV-060210-3000-0BP00 | Skladem | |||
| 9 | REAR LH UPPER SWING ARM ASSY 9DQV-060110-3000-0BP00 | Skladem | |||
| 10 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 11 | DAMPING SLEEVE ASSY 9DQV-050900-3000 | Skladem | 130,68 Kč | ||
| 12 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 12 | LH BALL PIN ASSY 9DQV-060700-3000-M2 | Není skladem | 699,14 Kč | ||
| 13 | REAR RH LOWER SWING ARM ASSY 9DQV-060410-3000-0BP00 | Skladem | |||
| 14 | LH REAR BEARING CARRIER ASSY 7020-0607B0 | Skladem | 3 060,67 Kč | ||
| 15 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 16 | BEARING, HUB 9GQ0-050710 | Skladem | 683,60 Kč | ||
| 17 | CIRCLIP FOR HOLE 55 30800-05505 | Skladem | 31,07 Kč | ||
| 18 | MIDDLE SPACER, REAR BEARING CARRIER 7020-060702-00001 | Skladem | 101,56 Kč | ||
| 19 | SHORT BUSHING 5ASV-050002-6001 | Skladem | 130,68 Kč | ||
| 20 | REAR SHOCK ABSORBER ASSY 9DQV-060500-3000 | Není skladem | 3 713,20 Kč | ||
| 21 | Šroub 30006-102055810 | Skladem | 58,03 Kč | ||
| 22 | RH REAR BEARING CARRIER ASSY 7020-0608B0 | Skladem | 3 060,67 Kč | ||
| 23 | REAR RH UPPER SWING ARM ASSY 9DQV-060310-3000-0BP00 | Skladem | |||
| 24 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
