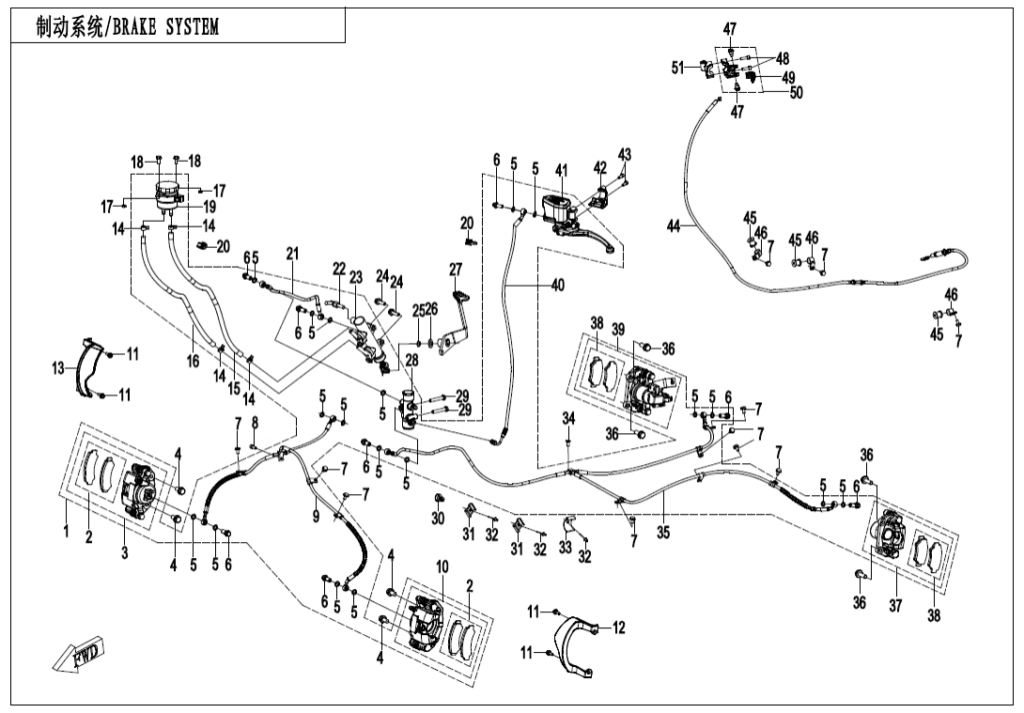

F08-A-V3 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HYDRAULIC BRAKE ASSY 9DQV-081000-7002 | Skladem | |||
| 2 | BRAKE PAD ASSY 9DQV-0813A1 | Není skladem | |||
| 3 | FRONT RH BRAKE CALIPER 9DQV-081400-3201 | Skladem | |||
| 4 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 5 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 6 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 7 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 8 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 9 | FLUID HOSE, FRONT BRAKE 9DQV-080150-3201 | Skladem | 2 206,17 Kč | ||
| 10 | FRONT LH BRAKE CALIPER 9DQV-081300-3201 | Skladem | |||
| 11 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 12 | GUARD, FRONT LH CV JOINT 9DS#-080001-6001 | Skladem | 87,05 Kč | ||
| 13 | GUARD, FRONT RH CV JOINT 9DS#-080002-6001 | Skladem | 87,05 Kč | ||
| 14 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 15 | RESERVOIR HOSE 1 9DQV-080101-3200 | Není skladem | |||
| 16 | RESERVOIR HOSE 2 9DQV-080102-3200 | Není skladem | |||
| 17 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 18 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 19 | RESERVIOR TANK ASSY 9GQS-081010-20000 | Skladem | 590,38 Kč | ||
| 20 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 21 | FLUID HOSE, BRAKE MASTER CYLINDER 9DQV-080170-3201 | Skladem | |||
| 22 | HYDRAULIC SENSOR SWITCH 9DQV-080010-3000 | Skladem | 543,77 Kč | ||
| 23 | MASTER CYLINDER 9DQV-081800-3200 | Skladem | 2 967,45 Kč | ||
| 24 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 25 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 26 | Podložka 30304-140410 | Skladem | |||
| 27 | BRAKE PEDAL ASSY 9DQV-080210-3200 | Není skladem | |||
| 28 | Rozdělovač brzd 9AWV-081070-4000 | Skladem | 2 283,85 Kč | ||
| 29 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 30 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 31 | PLASTIC CLASP 3 9DQV-080003-3000 | Skladem | 31,07 Kč | ||
| 32 | BLIND RIVET 30902-0400820 | Skladem | 15,54 Kč | ||
| 33 | PLASTIC CLASP 1 9DQV-080001-3000 | Skladem | |||
| 34 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 35 | REAR BRAKE FLUID HOSE 9DQV-080160-3200 | Skladem | 3 484,04 Kč | ||
| 36 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 37 | REAR LH BRAKE CALIPER 9DQV-081500-3201 | Skladem | 3 884,10 Kč | ||
| 38 | BRAKE PAD ASSY 9DQV-0815A1 | Skladem | 854,50 Kč | ||
| 39 | REAR RH BRAKE CALIPER 9DQV-081600-3201 | Skladem | 5 795,08 Kč | ||
| 40 | FLUID HOSE, HAND BRAKE 9DQV-080130-3202 | Skladem | |||
| 41 | MASTER CYLINDER ASSY, LH HAND BRAKE 9DQV-081100-7000 | Skladem | 2 920,84 Kč | ||
| 42 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9AY0-080005 | Skladem | 174,24 Kč | ||
| 42 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9DQV-080005-3000 | Skladem | 124,29 Kč | ||
| 43 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 44 | PARKING CABLE, REAR BRAKE 9DQV-080300-3200 | Skladem | 497,16 Kč | ||
| 45 | RUBBER, FUEL PIPE 9030-180008 | Skladem | 15,54 Kč | ||
| 46 | FIXING CLIP 9AWA-080004 | Skladem | 62,15 Kč | ||
| 47 | PIN, PARKING BRAKE LEVER 9050-080263-10000 | Skladem | 77,68 Kč | ||
| 48 | Šroub 30001-060020870 | Skladem | |||
| 49 | PARKING BRAKE LEVER 9DSV-080260-6H01-20 | Skladem | 761,28 Kč | ||
| 50 | RH PARKING LEVER 9DSV-080260-6H01 | Není skladem | 1 351,67 Kč | ||
| 51 | MOUNTING SEAT, REAR VIEW MIRROR 9DQV-080006-3201 | Skladem | 246,84 Kč | ||
