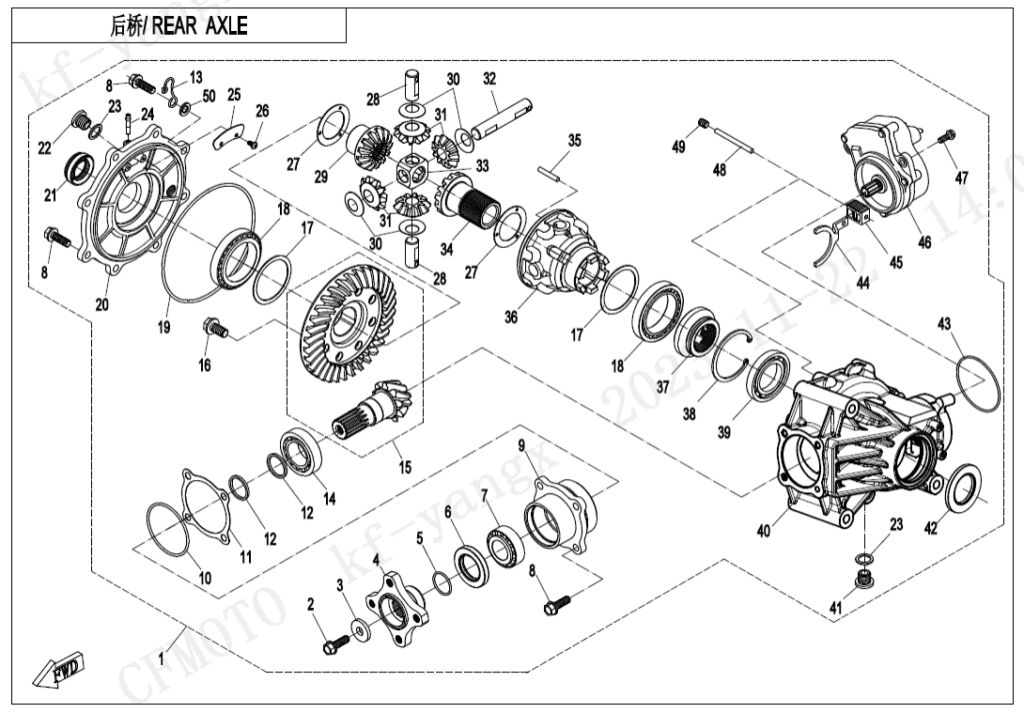

F33-B-V2 REAR AXLE(WITH DIFFERENTIAL)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR GEAR CASE ASSY Q820-330000-20001 | Skladem | |||
| 01 | REAR GEAR CASE ASSY Q820-330000-20002 | Skladem | 27 825,69 Kč | ||
| 02 | Šroub Q860-331002 | Skladem | 31,07 Kč | ||
| 03 | WHASHER 0180-331008-00001 | Skladem | 46,61 Kč | ||
| 04 | COUPLER Q850-331002 | Skladem | 699,14 Kč | ||
| 05 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 06 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 07 | Ložisko 30409-02500 | Skladem | 543,77 Kč | ||
| 08 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 09 | BEARING SEAT Q830-311002-00001 | Skladem | 636,99 Kč | ||
| 10 | O-RING 55*2.5 Q830-310006-10000 | Skladem | 77,68 Kč | ||
| 11 | ADJUSTING WASHER Q830-310023-00200 | Skladem | 46,61 Kč | ||
| 11 | ADJUSTING WASHER Q830-310023-00100 | Skladem | 46,61 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00401 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00501 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00601 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00701 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00801 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00901 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01001 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01101 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01201 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01301 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01401 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00101 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00201 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00301 | Skladem | 31,07 Kč | ||
| 13 | CLIP, REAR PARKING CABLE(RH) 9CRB-082001 | Není skladem | |||
| 14 | Ložisko 30409-03000 | Skladem | 481,63 Kč | ||
| 15 | REAR GEAR CASE BEVEL GEAR ASSY Q820-3300C0 | Není skladem | |||
| 16 | BOLT M10×1.25×22 0181-313100-0010 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00900 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00800 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00700 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00600 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00500 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00400 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00300 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00200 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00100 | Skladem | 31,07 Kč | ||
| 18 | Ložisko 30409-05000 | Skladem | 1 538,10 Kč | ||
| 19 | O-RING φ141×2.4 0180-310005 | Skladem | 43,52 Kč | ||
| 20 | COVER, REAR GEAR CASE Q820-330002-00001 | Není skladem | |||
| 21 | OIL SEAL 24×38×8 0180-311001 | Skladem | 62,15 Kč | ||
| 22 | Šroub 0180-021008-00001 | Skladem | 58,03 Kč | ||
| 23 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 24 | JOINT , BREATHER HOSE 0180-311004-0020 | Skladem | 31,07 Kč | ||
| 25 | OIL BAFFLE Q820-330007-10000 | Skladem | 31,07 Kč | ||
| 26 | Šroub (vrut) 30105-040008410 | Skladem | 15,54 Kč | ||
| 27 | GASKET,SEMIAXIS GEAR Q820-333003-00200 | Skladem | 46,61 Kč | ||
| 27 | GASKET,SEMIAXIS GEAR Q820-333003-00100 | Skladem | 46,61 Kč | ||
| 28 | PLANT GEAR SHAFT,SHORT Q820-333005 | Skladem | 108,75 Kč | ||
| 29 | SHAFT GEAR, RH Q820-333007 | Skladem | 807,89 Kč | ||
| 30 | WEARING RING 0181-313011 | Skladem | 31,07 Kč | ||
| 31 | GEAR(CENTER), DIFFERENTIAL 0180-313003-00004 | Skladem | 233,05 Kč | ||
| 32 | PLANET GEAR AXLE Q820-333006 | Skladem | 170,90 Kč | ||
| 33 | CROSS BUSHING Q820-333008 | Skladem | 295,19 Kč | ||
| 34 | GEAR, LH SHAFT Q820-333001 | Skladem | 1 180,77 Kč | ||
| 35 | PIN 30906-0503000 | Skladem | 29,02 Kč | ||
| 36 | DIFFERENTIAL HOUSING Q820-333002-00001 | Skladem | 1 817,76 Kč | ||
| 37 | RECTANGLUAR SLEEVE Q820-330006 | Skladem | 341,80 Kč | ||
| 38 | RETAINER 62 30800-06200 | Skladem | 31,07 Kč | ||
| 39 | BEARING 16007 30400-03501 | Skladem | 233,05 Kč | ||
| 40 | REAR GEAR CASE Q820-330001-00002 | Skladem | |||
| 40 | REAR GEAR CASE Q820-330001-00003 | Skladem | 3 930,71 Kč | ||
| 41 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 42 | OIL SEAL 35×58×5 0120-061000 | Skladem | 108,75 Kč | ||
| 43 | O-RING 67.5*2 Q830-310012-10000 | Skladem | 62,15 Kč | ||
| 44 | SHIFT FORK Q820-330005 | Skladem | 46,61 Kč | ||
| 45 | RACK Q830-310004 | Skladem | 290,16 Kč | ||
| 46 | MOTOR ASSY, FRONT GEAR CASE Q830-314000-20000 | Skladem | 3 697,66 Kč | ||
| 47 | Šroub 0010-023008-00001 | Skladem | 15,54 Kč | ||
| 48 | PIN SHAFT Q820-330004 | Skladem | 31,07 Kč | ||
| 49 | Šroub (vrut) 30130-080010810 | Skladem | 15,54 Kč | ||
| 50 | Podložka 30306-080112 | Skladem | 15,54 Kč | ||
