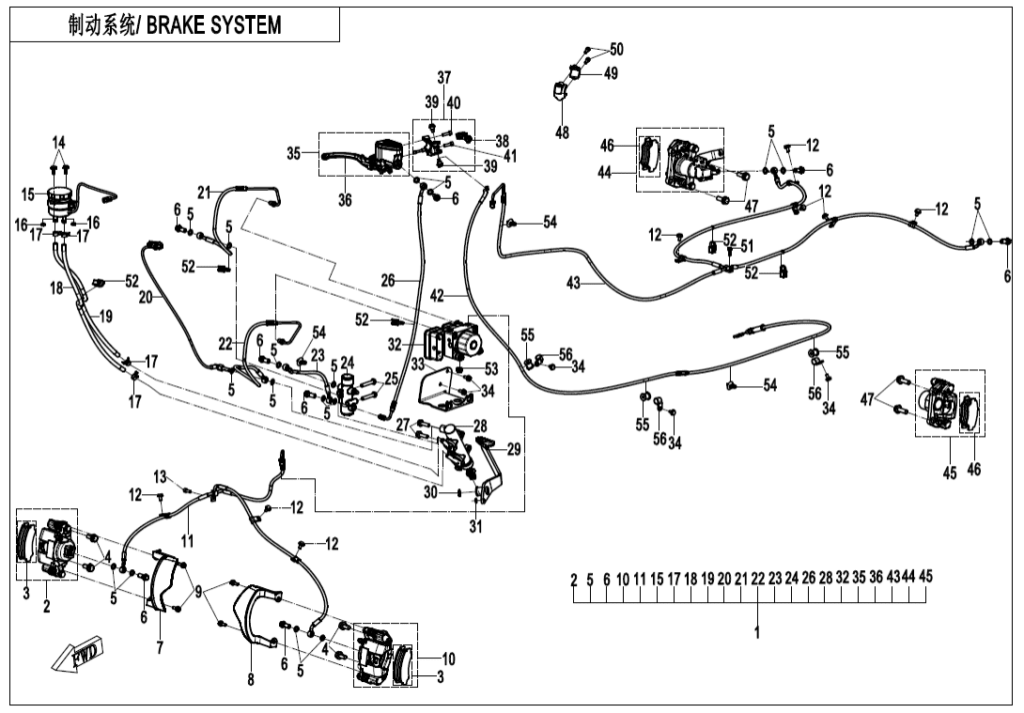

F08-B-V2 BRAKE SYSTEM(ABS)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | ABS HYDRAULIC BRAKE ASSY 9DQV-082000-8701 | Skladem | |||
| 2 | FRONT RH BRAKE CALIPER 9DQV-081400-3201 | Skladem | |||
| 3 | BRAKE PAD ASSY 9DQV-0813A1 | Není skladem | |||
| 4 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 5 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 6 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 7 | GUARD, FRONT RH CV JOINT 9DS#-080002-6001 | Skladem | 87,05 Kč | ||
| 8 | GUARD, FRONT LH CV JOINT 9DS#-080001-6001 | Skladem | 87,05 Kč | ||
| 9 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 10 | FRONT LH BRAKE CALIPER 9DQV-081300-3201 | Skladem | |||
| 11 | ABS FRONT BRAKE OUTLET PIPE 9DQV-082400-8700 | Skladem | |||
| 12 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 13 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 14 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 15 | RESERVIOR TANK ASSY 9GQS-081010-20000 | Skladem | 590,38 Kč | ||
| 16 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 17 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 18 | RESERVOIR HOSE 1 9DQV-080101-3200 | Není skladem | |||
| 19 | RESERVOIR HOSE 2 9DQV-080102-3200 | Není skladem | |||
| 20 | HYDRAULIC SENSOR SWITCH 9DQV-080010-3000 | Skladem | 543,77 Kč | ||
| 21 | ABS FRONT BRAKE INLET PIPE 9DQV-082200-8701 | Skladem | |||
| 22 | ABS REAR BRAKE INLET PIPE 9DQV-082300-8701 | Skladem | |||
| 23 | BRAKE MASTER CYLINDER FLUID HOSE 9DQV-082600-8700 | Skladem | |||
| 24 | Rozdělovač brzd 9AWV-081070-4000 | Skladem | 2 283,85 Kč | ||
| 25 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 26 | FLUID HOSE, HAND BRAKE 9DQV-080130-3400 | Skladem | 916,65 Kč | ||
| 27 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 28 | BRAKE MASTER CYLINDER ASSY 9DQV-081C00-8701 | Skladem | |||
| 29 | BRAKE PEDAL ASSY 9DQV-080210-3200 | Není skladem | |||
| 30 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 31 | Podložka 30304-140410 | Skladem | |||
| 32 | ABS CONTROLLER 9DQV-082100-8700 | Skladem | |||
| 33 | ABS CONTROLLER BRACKET 9DQV-08000H-8701 | Skladem | |||
| 34 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 35 | RH HAND BRAKE MASTER CYLINDER ASSY 9DQV-081200-8700 | Skladem | |||
| 36 | Brzdová páčka 9AY0-081225 | Skladem | 357,34 Kč | ||
| 37 | RH PARKING HANDLE 9DSV-080260-6H03 | Skladem | 1 351,67 Kč | ||
| 38 | PARKING HANDLE 9DSV-080260-6H02-20 | Není skladem | 1 152,42 Kč | ||
| 39 | PIN, PARKING BRAKE LEVER 9DSV-080260-6H03-23 | Skladem | 46,61 Kč | ||
| 41 | INNER HEX SCREW 30102-060030870 | Není skladem | |||
| 42 | PARKING CABLE, REAR BRAKE 9DQV-080300-3400 | Skladem | |||
| 43 | ABS REAR BRAKE OUTLET PIPE 9DQV-082500-8701 | Skladem | |||
| 44 | REAR RH BRAKE CALIPER 9DQV-081600-3201 | Skladem | 5 795,08 Kč | ||
| 45 | REAR LH BRAKE CALIPER 9DQV-081500-3201 | Skladem | 3 884,10 Kč | ||
| 46 | BRAKE PAD ASSY 9DQV-0815A1 | Skladem | 854,50 Kč | ||
| 47 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 48 | REAR VIEW MIRROR BRACKET 9DQV-080006-3400 | Skladem | |||
| 49 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9AY0-080005 | Skladem | 174,24 Kč | ||
| 49 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9DQV-080005-3000 | Skladem | 124,29 Kč | ||
| 50 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 51 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 52 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 53 | DAMPING RUBBER SLEEVE, MSC CONTROLLER 6L30-080008 | Skladem | 62,15 Kč | ||
| 54 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 55 | RUBBER, FUEL PIPE 9030-180008 | Skladem | 15,54 Kč | ||
| 56 | FIXING CLIP 9AWA-080004 | Skladem | 62,15 Kč | ||
