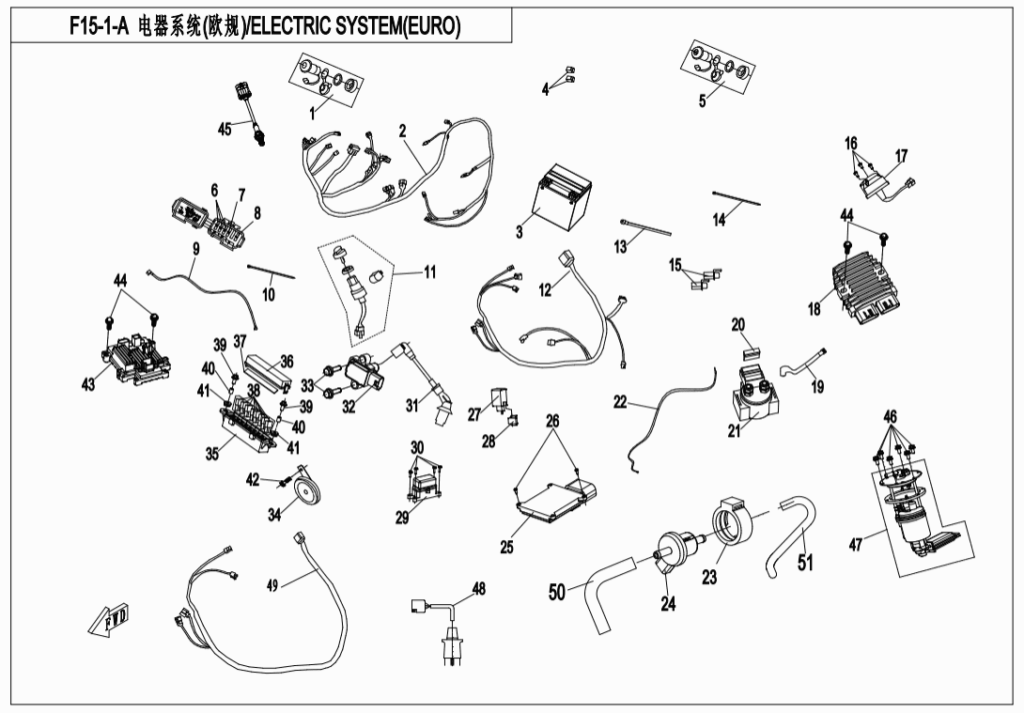

F15-1-A ELECTRIC SYSTEM(EURO)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | OUTPUT SEAT,POWER 9GQ0-150500 | Skladem | 372,87 Kč | ||
| 02 | Hlavní kabel 9GQL-150100-00001 | Skladem | 7 473,01 Kč | ||
| 03 | BATTERY 31023002 | Skladem | |||
| 03 | BATTERY 31023000 | Skladem | 3 848,73 Kč | ||
| 04 | PLUG, PDA 905B-150103 | Skladem | 31,07 Kč | ||
| 05 | OUTPUT SEAT, USB 9GQ0-150600 | Skladem | 528,24 Kč | ||
| 06 | FUSE 806A-151303 | Skladem | 15,54 Kč | ||
| 07 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 08 | FUSE (5A) 8080-151301 | Skladem | |||
| 09 | NEGATIVE WIRE,BATTERY 9GQL-150230 | Skladem | |||
| 10 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 11 | LOCK KIT 9GQ0-010100 | Skladem | 854,50 Kč | ||
| 12 | AUXILIARY CABLE, EFI 9GQL-150300-00001 | Skladem | 4 101,61 Kč | ||
| 13 | CABLE CLIP 9010-150005 | Skladem | |||
| 14 | TIE BAND 9010-150004 | Skladem | 15,54 Kč | ||
| 15 | DIODE, STARTER 6090-150500 | Skladem | 58,03 Kč | ||
| 16 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 17 | POWER SOCKET，TRAILER 7020-150800 | Skladem | 419,48 Kč | ||
| 18 | REGULATOR 0800-177000-10000 | Skladem | 3 977,32 Kč | ||
| 18 | REGULATOR 01AA-177000 | Skladem | 3 146,00 Kč | ||
| 19 | POSITIVE WIRE,BATTERY 9GQL-150210 | Skladem | |||
| 20 | CHIP-TYPE FUSE(30A) 7020-150111 | Skladem | 108,75 Kč | ||
| 21 | STARTER RELAY 9CR6-150310 | Skladem | 450,56 Kč | ||
| 22 | CABLE,STARTING MOTOR 9GQ0-150220 | Skladem | 652,53 Kč | ||
| 23 | RUBBER SLEEVE,IDEL VALVE 901F-000005 | Skladem | |||
| 24 | AIR CONTROL VALVE,IDLE 018B-172000 | Skladem | 2 066,34 Kč | ||
| 25 | Řídící jednotka ECU 0GR0-174000-20000 | Skladem | 8 063,39 Kč | ||
| 26 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 27 | Přerušovač blinkrů 8010-151000 | Skladem | 188,60 Kč | ||
| 28 | CUSHION WASHER, FLASHER 8010-150002 | Skladem | 15,54 Kč | ||
| 30 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 31 | HIGH-TENSION CABLE 0GRB-178000 | Skladem | 295,19 Kč | ||
| 32 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 33 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 34 | ELECTRIC HORN 5020-150700 | Skladem | 290,16 Kč | ||
| 35 | RELAY BOX 7020-040411 | Skladem | 139,83 Kč | ||
| 36 | COVER,RELAY BOX 7020-040412 | Skladem | 93,22 Kč | ||
| 37 | RUBBER WASHER,RELAY BOX COVER 7020-040414 | Skladem | |||
| 38 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 39 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 40 | Pouzdro 6090-040303 | Skladem | 15,54 Kč | ||
| 41 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 42 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 43 | EPS CONTROLLER 9GQ0-151000 | Skladem | 11 605,69 Kč | ||
| 44 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 45 | OXYGEN SENSOR 018B-176000 | Skladem | 3 045,13 Kč | ||
| 46 | Šroub 30006-050014810 | Skladem | 15,54 Kč | ||
| 47 | FUEL PUMP 901F-150900 | Skladem | 3 122,82 Kč | ||
| 48 | JOINT SEAT, TRAILER POWER 9010-151020 | Skladem | 481,63 Kč | ||
| 49 | LINK CABLE, FOG LIGHT 9GQ0-150120 | Skladem | |||
| 50 | INLET HOSE,IDLE VALVE 9CR6-001007 | Skladem | 275,65 Kč | ||
| 51 | OUTLET HOSE,IDLE VALVE 9CR6-001008 | Skladem | 159,59 Kč | ||
