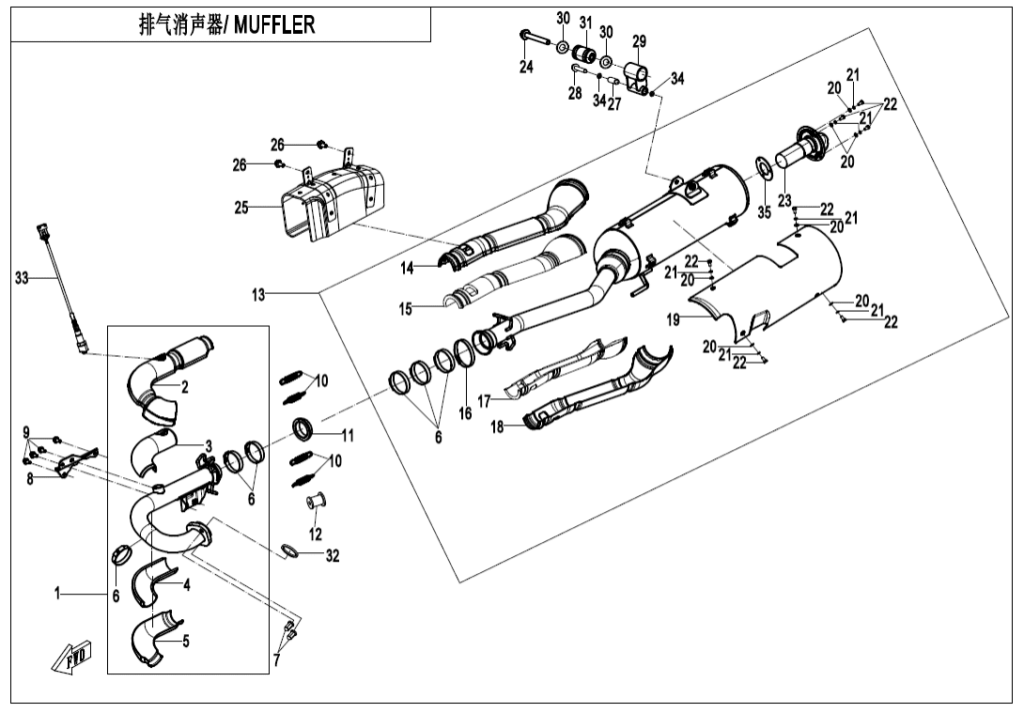

F02-V3 MUFFLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | EXHAUST PIPE ASSY 9DR7-021100-10000 | Skladem | 2 889,77 Kč | ||
| 02 | UPPER HEAT INSULATOR, FRONT EXHAUST PIPE 9DS#-021101-6000 | Skladem | 372,87 Kč | ||
| 03 | UPPER HEAT INSULATOR 9DS#-021100-6000-20 | Skladem | 159,59 Kč | ||
| 04 | LOWER HEAT INSULATOR 9DS#-021100-6000-21 | Skladem | 159,59 Kč | ||
| 05 | LOWER HEAT INSULATOR, FRONT EXHAUST PIPE 9DS#-021102-6000 | Skladem | 372,87 Kč | ||
| 06 | SCREW CLAMP，A-TYPE 7030-021305 | Skladem | 108,75 Kč | ||
| 07 | NUT M8, MUFFLER JOINT 8010-020001 | Skladem | 15,54 Kč | ||
| 08 | SUPPORT PLATE, FRONT EXHAUST PIPE 9GQ0-020001-00002 | Skladem | 116,06 Kč | ||
| 09 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 10 | DRAG SPRING,MUFFLER 9CR6-020002-00001 | Skladem | 77,68 Kč | ||
| 11 | SMALL GRAPHITE RING 9AWA-021003-00001 | Skladem | 155,36 Kč | ||
| 11 | SMALL GRAPHITE RING 9AWA-021003-00002 | Skladem | 155,36 Kč | ||
| 12 | RUBBER BUSH,MUFFLER 9GQ0-020002 | Skladem | 62,15 Kč | ||
| 13 | MUFFLER ASSY 9GQL-021200-30002 | Skladem | 40 192,67 Kč | ||
| 14 | UPPER HEAT INSULATOR, RAER EXHAUST PIPE 9GQL-021201 | Skladem | 497,16 Kč | ||
| 15 | UPPER HEAT INSULATOR 9GQL-021204 | Skladem | 348,48 Kč | ||
| 16 | SCREW CLAMP，A-TYPE 9030-000109 | Skladem | 116,06 Kč | ||
| 17 | LOWER HEAT INSULATOR 9GQL-021205 | Skladem | 333,96 Kč | ||
| 18 | LOWER HEAT INSULATOR, RAER EXHAUST PIPE 9GQL-021203 | Skladem | 497,16 Kč | ||
| 19 | HEAT INSULATOR, MUFFLER BODY 9GQ0-021201-20000 | Skladem | 479,16 Kč | ||
| 20 | Podložka 30303-060900 | Skladem | 15,54 Kč | ||
| 21 | WASHER 6 30306-060800 | Skladem | 31,07 Kč | ||
| 22 | Šroub 30000-060012700 | Není skladem | |||
| 23 | SPAPK ARRESTOR 9GQ0-021320 | Skladem | 362,70 Kč | ||
| 24 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 25 | SPRING HEAT INSULATION PLATE ASSY 9GQ0-020010 | Skladem | 916,65 Kč | ||
| 26 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 27 | LINER, MUFFLER 7020-020001 | Skladem | 62,15 Kč | ||
| 28 | Šroub 30006-080065810 | Skladem | 31,07 Kč | ||
| 29 | MOUNT ASSY., MUFFLER 9CR6-020020 | Skladem | 139,83 Kč | ||
| 30 | CAP, CUSHION SLEEVE 9010-050003 | Skladem | 31,07 Kč | ||
| 31 | CUSHION SLEEVE 9010-050500 | Skladem | 116,06 Kč | ||
| 32 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 33 | OXYGEN SENSOR 0HU0-176000 | Skladem | 3 045,13 Kč | ||
| 34 | WIRE WASHER 9CR6-020003 | Skladem | 46,61 Kč | ||
| 35 | SEAL GASKET,GRAPHITE 9DS#-021001-6000 | Skladem | 201,97 Kč | ||
