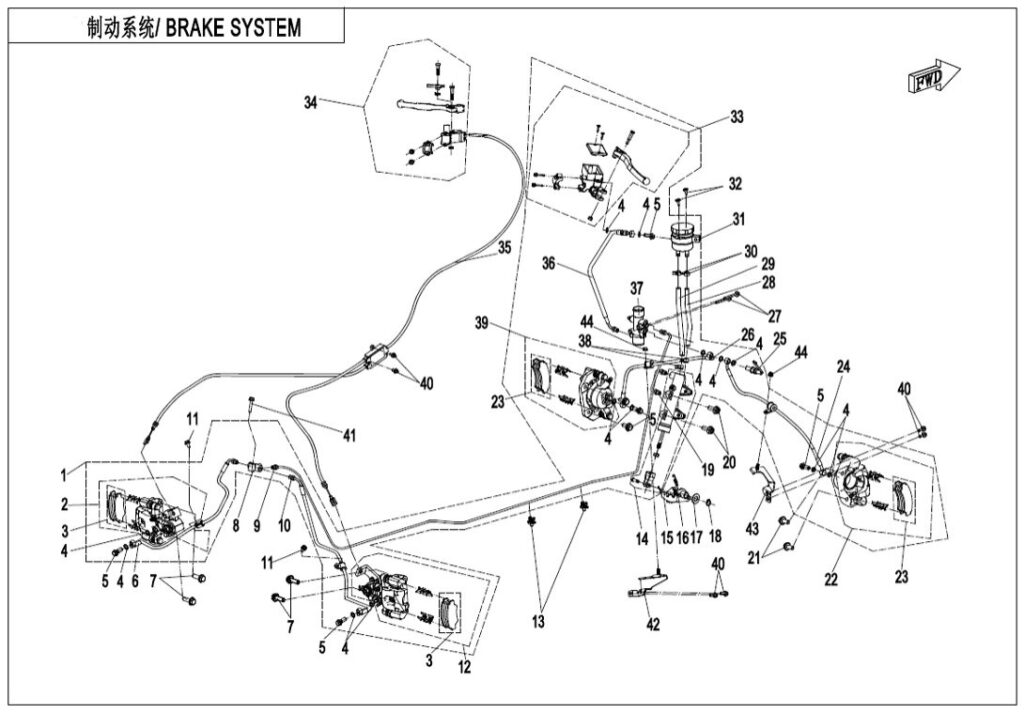

Brzdový systém (LH,SPLIT)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Brzdový systém 9GQA-081000 | Není skladem | |||
| 01 | HYDRAULIC BRAKE 9GQA-081000-50000 | Není skladem | |||
| 02 | REAR BRAKE CALIPER,LH 7020-081050-10000 | Skladem | 7 208,89 Kč | ||
| 03 | REAR BRAKE PAD ASSY 7020-0810A0 | Skladem | 1 040,94 Kč | ||
| 04 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 05 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 06 | SOFT FLUID HOSE, REAR BRAKE(LH) 9GQA-080130 | Skladem | 807,89 Kč | ||
| 07 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 08 | T-JOINT, HYDRAULIC BRAKE 7020-081001 | Skladem | 304,67 Kč | ||
| 09 | FLUID PIPE,REAR BRAKE 9GQA-080160 | Není skladem | |||
| 10 | SOFT FLUID HOSE, REAR BRAKE(RH) 9GQA-080140 | Skladem | 807,89 Kč | ||
| 11 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 12 | REAR BRAKE CALIPER, RH 7020-081060-10000 | Skladem | 7 208,89 Kč | ||
| 13 | CLIP,BRAKE HOSE 9GQA-080001 | Skladem | 31,07 Kč | ||
| 14 | MASTER CYLINDER 9CRB-081010-00001 | Skladem | 2 485,82 Kč | ||
| 15 | BRACKET, OIL PIPE 9GQ0-080010 | Skladem | 108,75 Kč | ||
| 15 | PEDAL, BRAKE 9GQ0-080210-10000 | Skladem | 362,70 Kč | ||
| 16 | PEDAL, BRAKE 9GQ0-080210-10000 | Skladem | 362,70 Kč | ||
| 16 | RETURN SPRING,BRAKE PEDAL 9GQ0-080202 | Skladem | 31,07 Kč | ||
| 17 | Podložka 30304-140410 | Skladem | |||
| 17 | RETURN SPRING,BRAKE PEDAL 9GQ0-080202 | Skladem | 31,07 Kč | ||
| 18 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 18 | Podložka 30304-140410 | Skladem | |||
| 19 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 19 | FLUID PIPE,FRONT BRAKE 9GQA-080150 | Není skladem | |||
| 20 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 20 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 21 | FLUID PIPE,FRONT BRAKE 9GQA-080150 | Není skladem | |||
| 22 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 23 | BRACKET, OIL PIPE 9GQ0-080020 | Skladem | 108,75 Kč | ||
| 24 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 25 | FRONT BRAKE CALIPER,RH 7020-081040-10000 | Skladem | 3 464,62 Kč | ||
| 25 | HYDRAULIC INDUCTION SWITCH 7020-080010-10000 | Skladem | 699,14 Kč | ||
| 25 | HYDRAULIC INDUCTION SWITCH 7020-080010 | Skladem | 699,14 Kč | ||
| 26 | FRONT BRAKE PAD ASSY 7020-0810B0 | Skladem | 1 180,77 Kč | ||
| 26 | SOFT FLUID HOSE, FRONT BRAKE(LH) 9GQA-080110-00001 | Skladem | 807,89 Kč | ||
| 27 | BOLT M6x45 30006-060045810 | Skladem | 15,54 Kč | ||
| 27 | SOFT FLUID HOSE, FRONT BRAKE(RH) 9GQA-080120-00001 | Skladem | 807,89 Kč | ||
| 28 | HOSE 1,FLUID RESERVOIR 9GQ0-080101 | Skladem | 77,68 Kč | ||
| 28 | NUT M6 30202-060830 | Není skladem | |||
| 29 | HOSE 2,FLUID RESERVOIR 9GQ0-080102 | Skladem | 77,68 Kč | ||
| 29 | HYDRAULIC INDUCTION SWITCH 7020-080010 | Skladem | 699,14 Kč | ||
| 29 | HYDRAULIC INDUCTION SWITCH 7020-080010-10000 | Skladem | 699,14 Kč | ||
| 30 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 30 | SOFT FLUID HOSE, FRONT BRAKE(LH) 9GQA-080110-00001 | Skladem | 807,89 Kč | ||
| 31 | BOLT M6x45 30006-060045810 | Skladem | 15,54 Kč | ||
| 31 | FLUID RESERVOIR 9GQ0-080110 | Skladem | 543,77 Kč | ||
| 32 | HOSE 1,FLUID RESERVOIR 9GQ0-080101 | Skladem | 77,68 Kč | ||
| 32 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 33 | HOSE 2,FLUID RESERVOIR 9GQ0-080102 | Skladem | 77,68 Kč | ||
| 33 | MASTER CYLINDER. HAND BRAKE 7020-081020 | Skladem | 1 942,05 Kč | ||
| 34 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 34 | PARKING BRAKE LEVER 7020-083010 | Skladem | 668,07 Kč | ||
| 35 | CABLE, REAR BRAKE 9GQA-080300 | Skladem | 1 059,08 Kč | ||
| 35 | FLUID RESERVOIR 9GQ0-080110 | Skladem | 543,77 Kč | ||
| 36 | FLUID HOSE, HAND BRAKE 7020-082010 | Skladem | 916,65 Kč | ||
| 36 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 37 | HYDRAULICDISTRIBUTIONVALVE 7020-081070 | Skladem | 1 258,45 Kč | ||
| 37 | MASTER CYLINDER, HAND BRAKE 7020-081020-10000 | Skladem | 1 942,05 Kč | ||
| 38 | MOUNTING SEAT,REAR VIEW MIRROR 9CR6-080400 | Skladem | 139,83 Kč | ||
| 38 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 39 | FRONT BRAKE CALIPER, LH 7020-081030-10000 | Skladem | 3 464,62 Kč | ||
| 39 | PARKING BRAKE LEVER ASSY 9050-080260-10000 | Skladem | 1 134,16 Kč | ||
| 39 | PARKING LEVER ASSY. 9050-080260 | Skladem | 543,77 Kč | ||
| 40 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 40 | CABLE, REAR BRAKE 9GQA-080300-10000 | Není skladem | |||
| 41 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 41 | FLUID HOSE, HAND BRAKE 7020-082010 | Skladem | 916,65 Kč | ||
| 42 | BRACKET, OIL PIPE 9GQ0-080010 | Skladem | 108,75 Kč | ||
| 42 | HYDRAULICDISTRIBUTIONVALVE 7020-081070 | Skladem | 1 258,45 Kč | ||
| 43 | BRACKET, OIL PIPE 9GQ0-080020 | Skladem | 108,75 Kč | ||
| 43 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 44 | FRONT BRAKE CALIPER, LH 7020-081030-10000 | Skladem | 3 464,62 Kč | ||
| 44 | NUT M6 30202-060830 | Není skladem | |||
| 45 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
