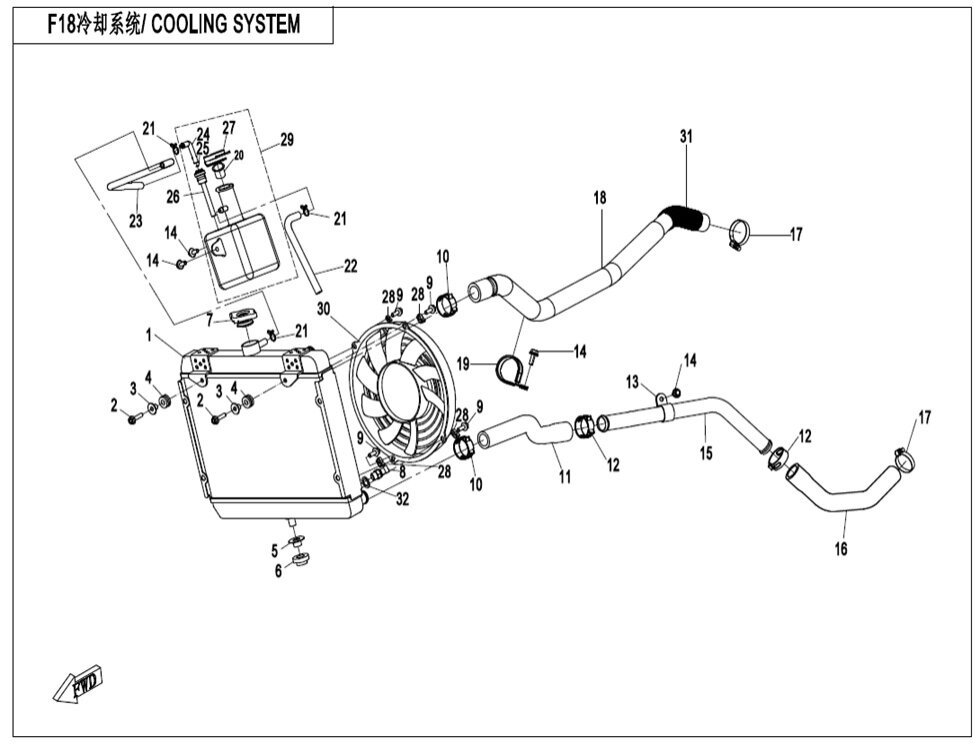

Chladící systém (OLD)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RADIATOR 9010-180100-1000 | Skladem | 4 521,09 Kč | ||
| 02 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 03 | RUBBER SLEEVE LINER, FRONT LICENSE BRACKET 5020-031002 | Skladem | 29,02 Kč | ||
| 04 | RUBBER CUSHION 9010-030047 | Skladem | 31,07 Kč | ||
| 05 | STEEL COLLAR，RADIATIOR 9010-180010 | Skladem | 31,07 Kč | ||
| 06 | RUBBER COLLAR，RADIATOR 9010-180004 | Skladem | 15,54 Kč | ||
| 07 | CAP，WATER FILLER 8010-180024 | Skladem | 232,13 Kč | ||
| 08 | THERMO SWITCH 7020-150600 | Skladem | 419,48 Kč | ||
| 09 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 10 | CLAMP B30 A000-180006 | Skladem | 87,05 Kč | ||
| 11 | WATER OUTLET HOSE,RADIATOR 9GQ0-180006 | Skladem | 248,58 Kč | ||
| 12 | STEEL BAND CLAMP 34 7000-180007-00001 | Skladem | 101,56 Kč | ||
| 13 | CLIP,WATER HOSE 9GQ0-180007 | Skladem | 72,54 Kč | ||
| 14 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 15 | WATER INLET PIPE,ENGINE 9GQ0-180001 | Skladem | 279,66 Kč | ||
| 16 | WATER INLET PIPE,ENGINE 9GQ0-180005 | Skladem | 248,58 Kč | ||
| 17 | CLAMP ，WATER HOSE 9010-180007 | Skladem | 62,15 Kč | ||
| 18 | WATER INLET PIPE, RADIATOR 9GQ0-180011 | Skladem | 574,85 Kč | ||
| 19 | CLIP,WATER HOSE 9AWA-180020 | Skladem | 130,68 Kč | ||
| 20 | GASKET, RESERVOIR 9060-180903 | Skladem | 29,02 Kč | ||
| 21 | CLAMP A12 30601-112010 | Skladem | 15,54 Kč | ||
| 22 | WATER HOSE, RESERVOIR TANK 9GQ0-180009 | Skladem | 46,61 Kč | ||
| 23 | OVERFLOW HOSE, RADIATOR 9GQ0-180008 | Skladem | 58,08 Kč | ||
| 24 | JOINT, RESERVOIR TANK 8030-180302 | Skladem | 31,07 Kč | ||
| 25 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 26 | HOSE, RESERVOIR TANK 8010-180028 | Skladem | 46,61 Kč | ||
| 27 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
| 28 | JOINT, CLIP 9030-180071 | Skladem | 15,54 Kč | ||
| 29 | RESERVOIR TANK ASSY. 9GQ0-180900 | Skladem | 435,24 Kč | ||
| 30 | RADIATOR FAN 9010-180200-3000 | Skladem | 4 008,39 Kč | ||
| 31 | JACKET, WATER HOSE 0110-023009 | Skladem | 31,07 Kč | ||
| 32 | RUBBER WASHER 16×23×2 6050-180006 | Skladem | 31,07 Kč | ||
