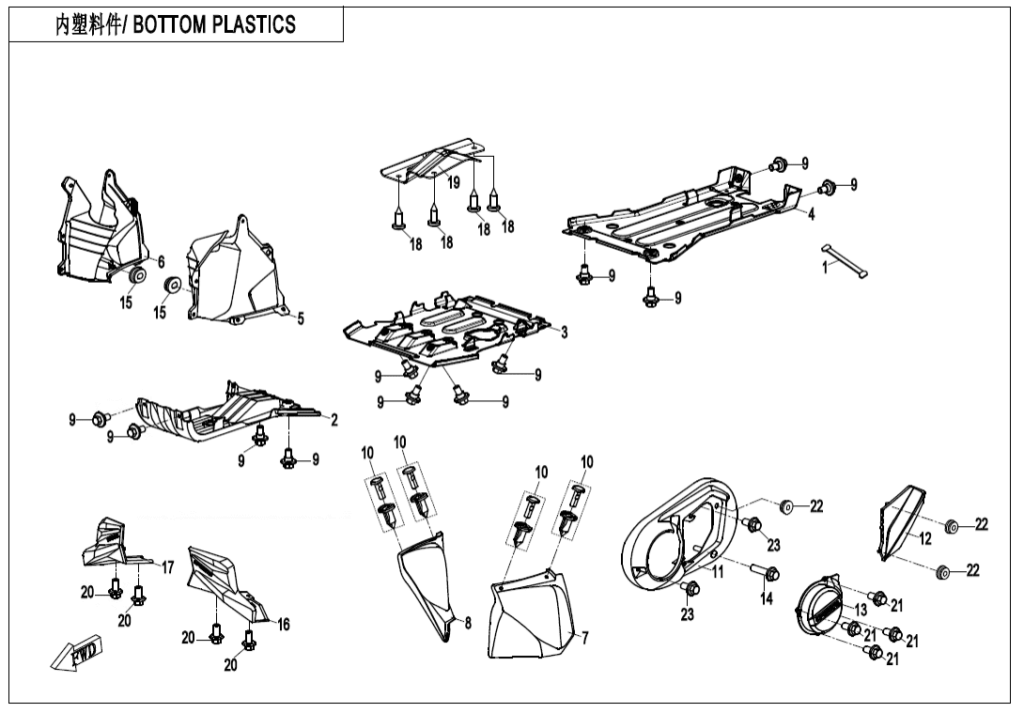

F04-4-V5 BOTTOM PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | TIE BAND,BATTERY 9GQ0-040910 | Skladem | 130,57 Kč | ||
| 02 | FRONT PROTECTION PLATE,ENGINE 9GQ0-044021 | Skladem | 403,95 Kč | ||
| 03 | MIDDLE PANEL ENGINE 9GQV-044022-1000 | Skladem | 559,31 Kč | ||
| 04 | REAR PANEL, ENGINE 9GQV-044023-1000 | Skladem | 466,09 Kč | ||
| 05 | FRONT UPPER INNER FENDER,LH 9GQ0-044031 | Skladem | 264,12 Kč | ||
| 06 | FRONT UPPER INNER FENDER,RH 9GQ0-044032 | Skladem | 264,12 Kč | ||
| 07 | FRONT LOWER INNER FENDER,LH 9GQ0-044033-10000 | Skladem | 186,44 Kč | ||
| 08 | FRONT LOWER INNER FENDER,RH 9GQ0-044034-10000 | Skladem | 186,44 Kč | ||
| 09 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 10 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 11 | LH COVER, ENGINE 9CR6-044051-10000 | Skladem | 310,73 Kč | ||
| 12 | CAP, OIL FILLER 9CRV-044052-2400 | Skladem | 188,60 Kč | ||
| 13 | DECOCOVER,RECOIl STARTER 9CR6-044053 | Skladem | 77,68 Kč | ||
| 14 | Šroub 30006-060050810 | Skladem | 15,54 Kč | ||
| 15 | FIXING RUBBER BUSHING 7020-040209 | Skladem | 29,02 Kč | ||
| 16 | LH GUARD, FRONT SUSPENSION 9GQ0-044041 | Skladem | 203,11 Kč | ||
| 17 | PROTECTION PLATE, FRONT SUSPENSION(RH) 9GQ0-044042 | Skladem | 203,11 Kč | ||
| 18 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 19 | LOWER HEAT INSULATOR,FUEL TANK 9GQ0-044051-20000 | Skladem | 450,56 Kč | ||
| 20 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 21 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
| 22 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 23 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
