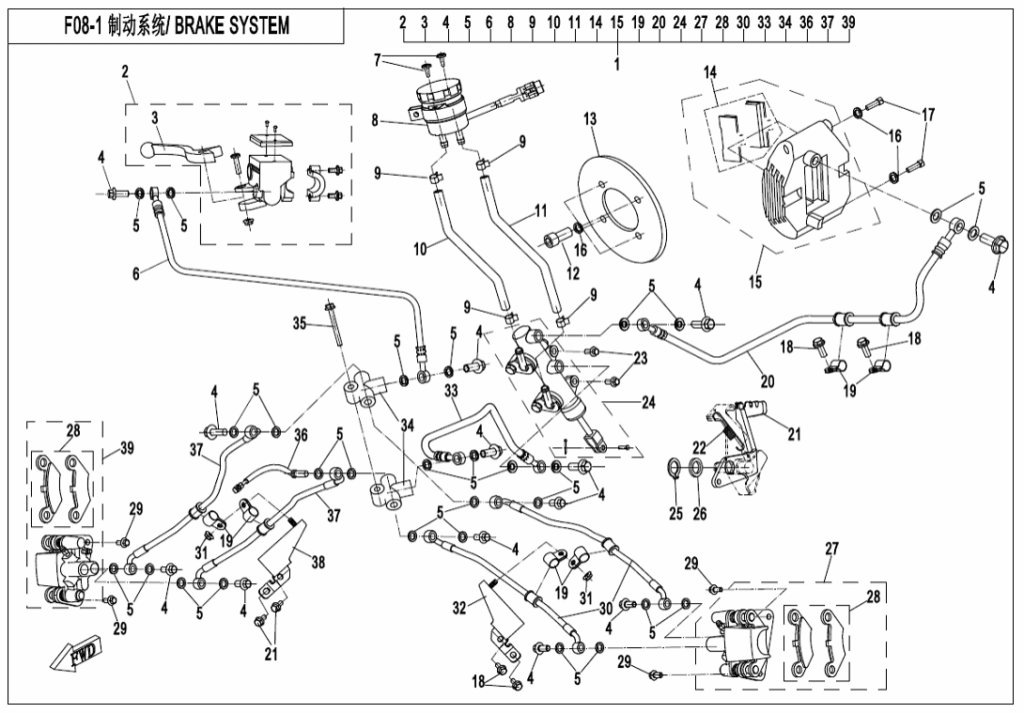

F08-1 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Brzdový systém 9GQS-081000 | Skladem | |||
| 02 | HAND BRAKE, FRONT BRAKE 9GQS-081600 | Skladem | 1 538,10 Kč | ||
| 03 | FRONT BRAKE LEVER 9010-080601 | Skladem | 248,58 Kč | ||
| 04 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 05 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 06 | FLUID HOSE, HAND BRAKE 9GQ0-080130 | Skladem | 512,70 Kč | ||
| 07 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 08 | FLUID RESERVOIR 9GQS-081010 | Skladem | 1 975,71 Kč | ||
| 09 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 10 | HOSE 1,FLUID RESERVOIR 9GQ0-080101 | Skladem | 77,68 Kč | ||
| 11 | HOSE 2,FLUID RESERVOIR 9GQ0-080102 | Skladem | 77,68 Kč | ||
| 12 | Šroub 9010-300001 | Skladem | 46,61 Kč | ||
| 13 | REAR BRAKE DISC 7020-080002 | Skladem | 776,82 Kč | ||
| 14 | REAR BRAKE PAD 9GQS-0813A0 | Skladem | 1 116,68 Kč | ||
| 15 | CALIPER, REAR BRAKE 9GQS-081300 | Skladem | 2 827,62 Kč | ||
| 16 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 17 | Šroub (vrut) 30102-102020810 | Skladem | 31,07 Kč | ||
| 18 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 19 | CIRCLIP 9010-080104 | Skladem | 46,61 Kč | ||
| 20 | REAR FLUID HOSE,MASTER CYLINDER 9GQ0-080150 | Skladem | 730,21 Kč | ||
| 21 | PEDAL, BRAKE 9GQ0-080210-10000 | Skladem | 362,70 Kč | ||
| 22 | RETURN SPRING,BRAKE PEDAL 9GQ0-080202 | Skladem | 31,07 Kč | ||
| 23 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 24 | MASTER CYLINDER 9GQS-081800 | Skladem | 3 169,43 Kč | ||
| 25 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 26 | Podložka 30304-140430 | Skladem | 31,07 Kč | ||
| 27 | FRONT BRAKE CALIPER, LH 9GQS-081100 | Skladem | 2 392,61 Kč | ||
| 28 | FRONT BRAKE PAD ASSY 9GQS-0811A0 | Skladem | 1 693,47 Kč | ||
| 29 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 30 | FLUID HOSE, FRONT CALIPER (LEFT HAND BRAKE) 9GQ0-080140 | Skladem | 574,85 Kč | ||
| 31 | NUT M6 30202-060830 | Skladem | |||
| 32 | BRACKET, OIL PIPE 9GQ0-080010 | Skladem | 108,75 Kč | ||
| 33 | FRONT FLUID HOSE, MASTER CYLINDER 9GQ0-080120 | Skladem | 372,87 Kč | ||
| 34 | T-JOINT, HYDRAULIC BRAKE 7020-081001 | Skladem | 304,67 Kč | ||
| 35 | Šroub 30006-060055810 | Není skladem | |||
| 36 | HYDRAULIC INDUCTION SWITCH 9GQS-081700 | Skladem | 522,28 Kč | ||
| 37 | FLUID HOSE, FRONT CALIPER (RIGHT HAND BRAKE) 9GQ0-080160 | Skladem | 574,85 Kč | ||
| 38 | BRACKET, OIL PIPE 9GQ0-080020 | Skladem | 108,75 Kč | ||
| 39 | FRONT BRAKE CALIPER,RH 9GQS-081200 | Skladem | 2 392,61 Kč | ||
