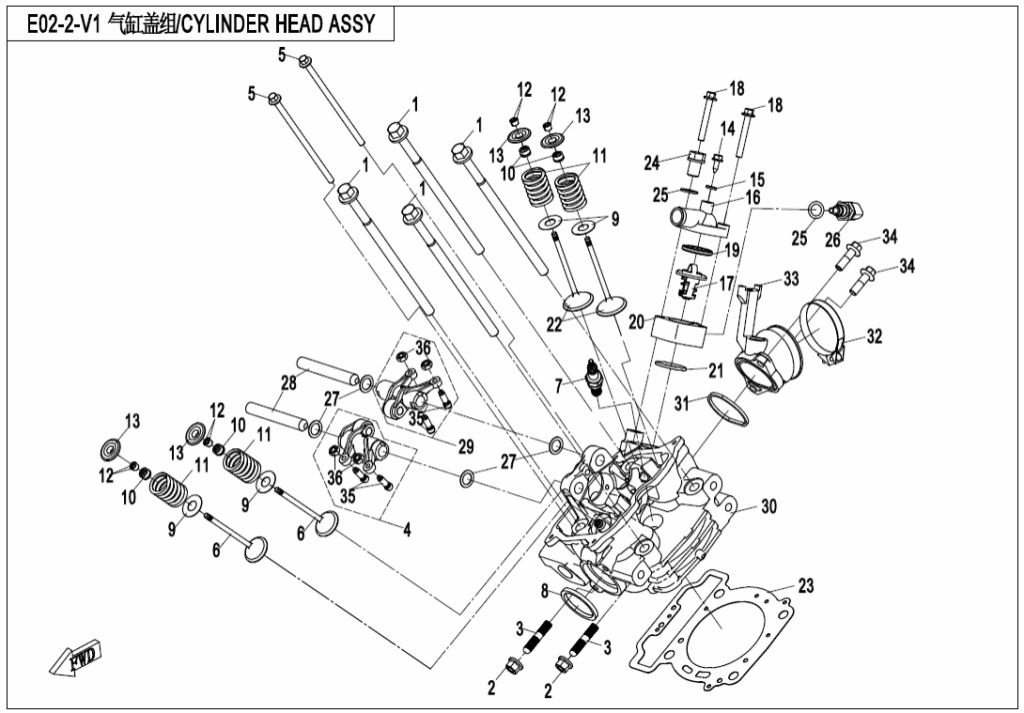

E02-2-V1 CYLINDER HEAD ASSY.
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT,CYLINDER 0GR0-022001 | Skladem | 108,75 Kč | ||
| 02 | FLANGE NUT M8 0010-011700-0010 | Skladem | 15,54 Kč | ||
| 03 | STUD M8×42 0180-022003-0010 | Skladem | 31,07 Kč | ||
| 04 | SWING ARM ,EXHAUST 0800-022600-1000 | Skladem | 823,43 Kč | ||
| 05 | BOLT M6X132 0GR0-022002 | Skladem | 46,61 Kč | ||
| 06 | VALVE, EXHAUST 0800-022005 | Skladem | 279,66 Kč | ||
| 07 | ZAPALOVACÍ SVÍČKA 0800-022800 | Skladem | 450,56 Kč | ||
| 08 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 09 | LOWER SEAT, VALVE SPRING 0800-022008 | Skladem | 43,52 Kč | ||
| 10 | SEAL RING, VALVE STEM 0010-022500 | Skladem | 43,52 Kč | ||
| 11 | SPRING, VALVE 0800-022006 | Skladem | 62,15 Kč | ||
| 12 | LOCK CLIP, VALVE 0800-022016 | Skladem | 62,15 Kč | ||
| 13 | UPPER SEAT, VALVE SPRING 0800-022007 | Skladem | 87,05 Kč | ||
| 14 | SELF-TAPPING SCREW 30132-480130010 | Skladem | |||
| 15 | WASHER 5.3×11×1.5 0800-022011 | Skladem | 43,52 Kč | ||
| 16 | HOUSING, THERMOSTAT 0800-022013 | Skladem | 108,75 Kč | ||
| 17 | THERMOSTAT 0800-022700 | Skladem | 372,87 Kč | ||
| 18 | BOLT M6x45 0180-013208-0010 | Skladem | 15,54 Kč | ||
| 19 | SEAL RING 0010-022802 | Skladem | 31,07 Kč | ||
| 20 | SEAT,THERMOSTAT 0GR0-022003 | Skladem | 170,90 Kč | ||
| 21 | O-Kroužek 30502-028000N | Skladem | 43,52 Kč | ||
| 22 | VALVE, INTAKE 0800-022004 | Skladem | 186,44 Kč | ||
| 23 | GASKET, CYLINDER HEAD 0800-022200 | Skladem | 388,41 Kč | ||
| 24 | SCREW PLUG M12x1.5 0800-022015-00001 | Skladem | 31,07 Kč | ||
| 25 | WASHER 12.2×18×1.5 0800-022014 | Skladem | 31,07 Kč | ||
| 26 | WATER TEMPERATURE SENSOR 018B-022810 | Skladem | 968,00 Kč | ||
| 27 | WASHER 12.3×18.5×0.5 0800-022002 | Skladem | 43,52 Kč | ||
| 28 | ROCKER ARM SHAFT 0800-022001 | Skladem | 130,57 Kč | ||
| 29 | SWING ARM, INTAKE 0800-022500-1000 | Skladem | 823,43 Kč | ||
| 30 | CYLINDER HEAD ASSY 0JY0-022100 | Skladem | 4 598,77 Kč | ||
| 31 | SEAL RING, MANIFOLD 0800-025002 | Skladem | 15,54 Kč | ||
| 32 | CLAMP 57 01A0-110005 | Skladem | 116,06 Kč | ||
| 33 | INJECTOR SEAT 0GR0-022900 | Skladem | 947,72 Kč | ||
| 34 | BOLT M8×25 0130-011114-0010 | Skladem | 31,07 Kč | ||
| 35 | ADJUST SCREW, VALVE CLEARANCE 0800-022510 | Skladem | 62,15 Kč | ||
| 36 | ADJUST NUT,VALVE CLEARANCE 0800-022506 | Skladem | 29,02 Kč | ||
