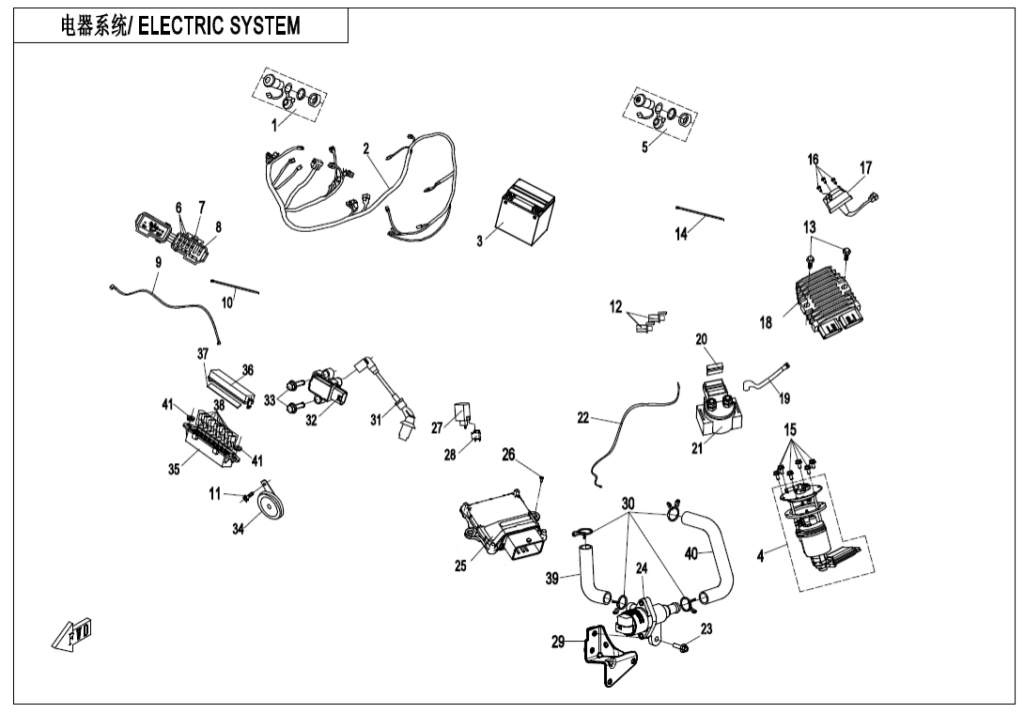

F15-1-V4 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | OUTPUT SEAT,POWER 9GQ0-150500-10000 | Skladem | 372,87 Kč | ||
| 02 | MAIN CABLE 9GQS-150100-20002 | Skladem | |||
| 03 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 04 | FUEL PUMP 901F-150900-10000 | Skladem | 2 827,62 Kč | ||
| 05 | OUTPUT SEAT, USB 9GQ0-150600-10000 | Skladem | 566,28 Kč | ||
| 06 | FUSE 806A-151303 | Skladem | 15,54 Kč | ||
| 07 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 08 | FUSE (5A) 8080-151301 | Skladem | |||
| 09 | NEGATIVE WIRE, BATTERY 9GQ0-150230-10001 | Skladem | 590,38 Kč | ||
| 10 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 11 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 12 | DIODE, STARTER 6090-150500 | Skladem | 58,03 Kč | ||
| 13 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 14 | TIE BAND 9010-150004 | Skladem | 15,54 Kč | ||
| 15 | Šroub 30006-050014810 | Skladem | 15,54 Kč | ||
| 16 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 17 | POWER SOCKET，TRAILER 7020-150800 | Skladem | 419,48 Kč | ||
| 18 | REGULATOR 0800-177000-10000 | Skladem | 3 977,32 Kč | ||
| 19 | POSITIVE WIRE, BATTERY 9GQ0-150210-10001 | Skladem | 566,28 Kč | ||
| 20 | CHIP-TYPE FUSE(30A) 7020-150111 | Skladem | 108,75 Kč | ||
| 21 | STARTER RELAY 9CR6-150310 | Skladem | 450,56 Kč | ||
| 22 | CABLE,STARTING MOTOR 9GQ0-150220 | Skladem | 652,53 Kč | ||
| 23 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 24 | STEEPING MOTOR ASSY. 0GQ0-175000 | Skladem | 2 330,46 Kč | ||
| 25 | Řídící jednotka ECU 0GR0-174000-50000 | Skladem | 8 063,39 Kč | ||
| 26 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 27 | FLASHER 9GQV-161000-7000 | Skladem | 295,19 Kč | ||
| 28 | CUSHION WASHER, FLASHER 8010-150002 | Skladem | 15,54 Kč | ||
| 29 | BRACKET, STEPPER MOTOR 9GQA-030010-20000 | Skladem | 145,08 Kč | ||
| 30 | CLAMP A18 30601-118010 | Skladem | 15,54 Kč | ||
| 31 | HIGH-TENSION CABLE 0GRB-178000-10000 | Skladem | 372,87 Kč | ||
| 32 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 33 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 34 | ELECTRIC HORN 5020-150700 | Skladem | 290,16 Kč | ||
| 35 | RELAY BOX 7020-040411 | Skladem | 139,83 Kč | ||
| 36 | COVER,RELAY BOX 7020-040412-10000 | Skladem | 145,08 Kč | ||
| 37 | RUBBER WASHER,RELAY BOX COVER 7020-040414 | Skladem | |||
| 38 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 39 | EXHAUST PIPE,STEEPING MOTOR 9GQA-001002 | Skladem | 186,44 Kč | ||
| 40 | INLET PIPE,STEEPING MOTOR 9GQA-001001 | Skladem | 310,73 Kč | ||
| 41 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
