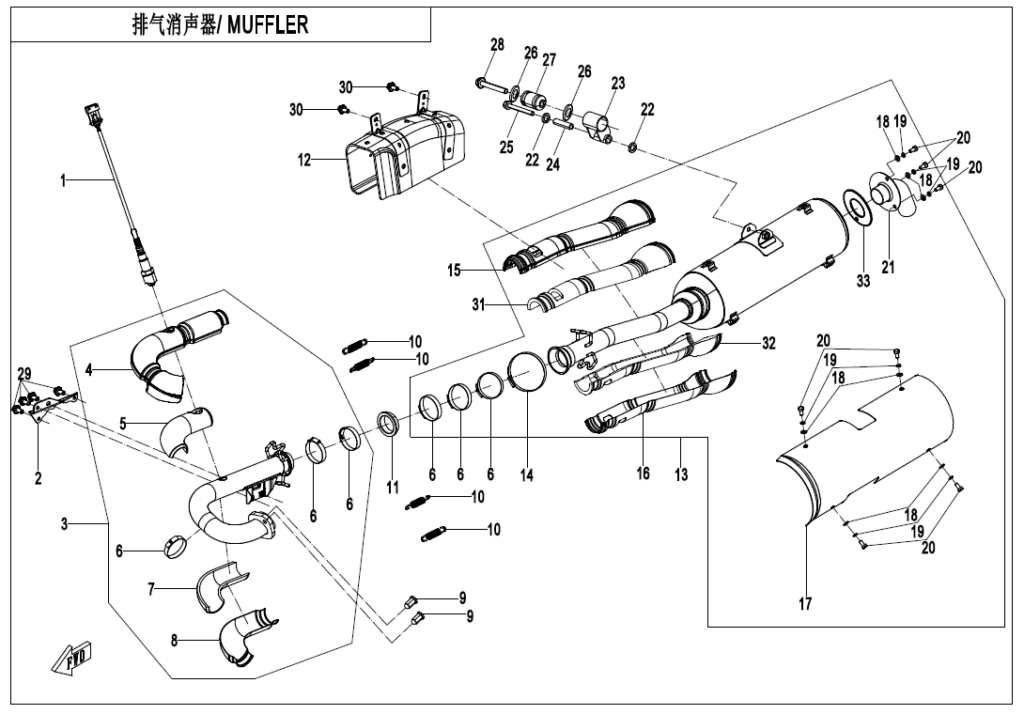

F02-A-V2 MUFFLER(NA)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | OXYGEN SENSOR 0HU0-176000 | Skladem | 3 045,13 Kč | ||
| 02 | SUPPORT PLATE, FRONT EXHAUST PIPE 9GQ0-020001-00002 | Skladem | 116,06 Kč | ||
| 03 | EXHAUST PIPE ASSY 9DS#-021100-6000 | Skladem | 2 936,38 Kč | ||
| 04 | UPPER HEAT INSULATOR, FRONT EXHAUST PIPE 9DS#-021101-6000 | Skladem | 372,87 Kč | ||
| 05 | UPPER HEAT INSULATOR 9DS#-021100-6000-20 | Skladem | 159,59 Kč | ||
| 06 | SCREW CLAMP，A-TYPE 7030-021305 | Skladem | 108,75 Kč | ||
| 07 | LOWER HEAT INSULATOR 9DS#-021100-6000-21 | Skladem | 159,59 Kč | ||
| 08 | LOWER HEAT INSULATOR, FRONT EXHAUST PIPE 9DS#-021102-6000 | Skladem | 372,87 Kč | ||
| 09 | NUT M8, MUFFLER JOINT 8010-020001 | Skladem | 15,54 Kč | ||
| 10 | DRAG SPRING,MUFFLER 9CR6-020002-00001 | Skladem | 77,68 Kč | ||
| 11 | SMALL GRAPHITE RING 9AWA-021003-00001 | Skladem | 155,36 Kč | ||
| 12 | HEAT INSULTOR ASSY, SPRING 9DS#-020010-6000 | Skladem | 1 009,87 Kč | ||
| 13 | Sestava výfuku a tlumiče 9DS#-021200-6001 | Skladem | |||
| 14 | SCREW CLAMP，A-TYPE 9030-000109 | Skladem | 116,06 Kč | ||
| 15 | UPPER HEAT INSULATOR, REAR EXHAUST PIPE 9DS#-021201-6000 | Skladem | |||
| 16 | LOWER HEAT INSULATOR, REAR EXHAUST PIPE 9DS#-021202-6000 | Skladem | |||
| 17 | HEAT INSULATOR, MUFFLER BODY 9CR6-021203 | Skladem | 326,26 Kč | ||
| 18 | WASHER 6 30306-060800 | Skladem | 31,07 Kč | ||
| 19 | Podložka 30303-060900 | Skladem | 15,54 Kč | ||
| 20 | Šroub 30000-060010700 | Skladem | |||
| 21 | SPAPK ARRESTOR 7020-021320-10000 | Skladem | 668,07 Kč | ||
| 22 | WIRE WASHER 9CR6-020003 | Skladem | 46,61 Kč | ||
| 23 | MOUNT ASSY., MUFFLER 9CR6-020020 | Skladem | 139,83 Kč | ||
| 24 | LINER, MUFFLER 7020-020001 | Skladem | 62,15 Kč | ||
| 25 | Šroub 30006-080065810 | Skladem | 31,07 Kč | ||
| 26 | CAP, CUSHION SLEEVE 9010-050003 | Skladem | 31,07 Kč | ||
| 27 | CUSHION SLEEVE 9010-050500 | Skladem | 116,06 Kč | ||
| 28 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 29 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 30 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 31 | UPPER HEAT INSULATOR 9DS#-021200-6000-20 | Skladem | |||
| 32 | UPPER HEAT INSULATOR 9DS#-021200-6000-21 | Skladem | |||
| 33 | SEAL GASKET,GRAPHITE 9DS#-021001-6000 | Skladem | 201,97 Kč | ||
