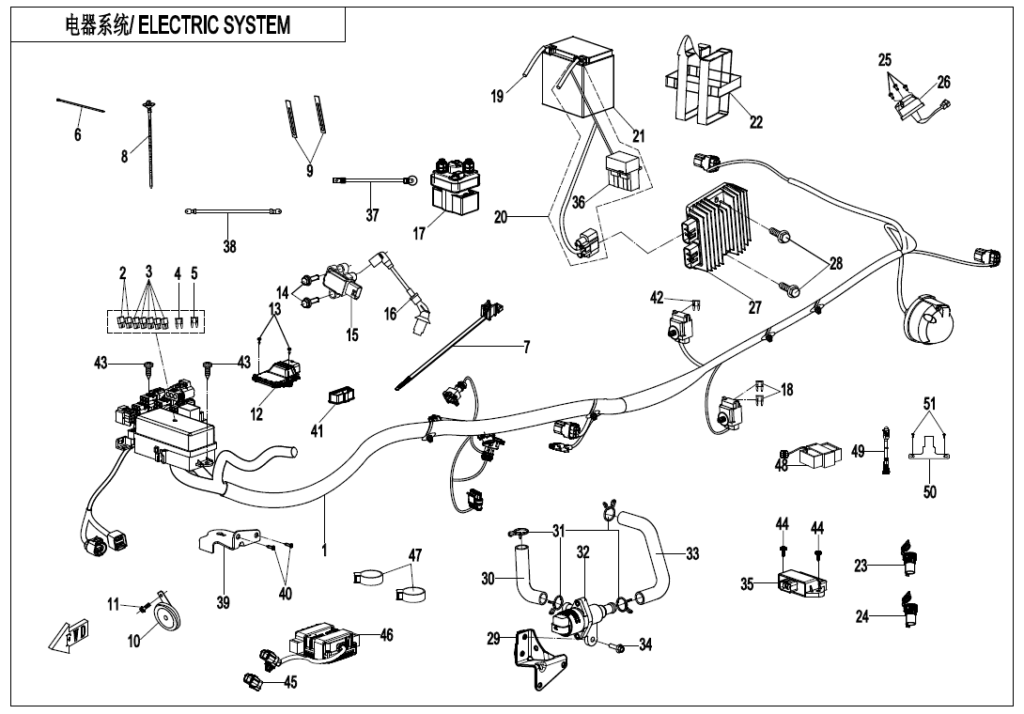

F15-1-V3 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 9CSV-150100-D101 | Skladem | |||
| 02 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 03 | AUXILIARY RELAY CFCV-150525-2000-M1 | Skladem | 145,20 Kč | ||
| 04 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 05 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 06 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 07 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 08 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 09 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 10 | ELECTRIC HORN 5020-150700 | Skladem | 290,16 Kč | ||
| 11 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 12 | Řídící jednotka ECU 9DSV-001000-8003 | Skladem | |||
| 13 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 14 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 15 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 16 | HIGH VOLTAGE CABLE 0GR0-178000-10000 | Skladem | 435,60 Kč | ||
| 17 | STARTER RELAY 9DSV-150510-5001 | Skladem | 823,43 Kč | ||
| 18 | 30A FUSE 806A-151308 | Skladem | 31,07 Kč | ||
| 19 | NEGATIVE WIRE, BATTERY 9DS#-150210-6000 | Není skladem | |||
| 20 | POSITIVE WIRE, BATTERY 9DS#-150230-6002 | Skladem | 1 103,08 Kč | ||
| 21 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 22 | BELT,BETTERY 9060-152100 | Skladem | 124,29 Kč | ||
| 23 | USB OUTPUT SOCKET ASSY 9DSV-151200-6000 | Není skladem | |||
| 24 | POWER OUTLET SOCKET ASSY 9DSV-150500-6R01 | Skladem | 543,77 Kč | ||
| 25 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 26 | TRAILER POWER SOCKET 9DQV-151300-3101 | Skladem | 1 491,49 Kč | ||
| 26 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 27 | REGULATOR 9DSV-151000-4000 | Skladem | 4 365,73 Kč | ||
| 28 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 29 | BRACKET ASSY, STEPPER MOTOR 9GQA-030010-30000 | Není skladem | |||
| 30 | EXHAUST PIPE,STEEPING MOTOR 9GQA-001002 | Skladem | 186,44 Kč | ||
| 31 | CLAMP A18 30601-118010 | Skladem | 15,54 Kč | ||
| 32 | STEEPING MOTOR ASSY. 0GQ0-175000 | Skladem | 2 330,46 Kč | ||
| 33 | INLET PIPE,STEEPING MOTOR 9GQA-001001 | Skladem | 310,73 Kč | ||
| 34 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
| 35 | Přerušovač blinkrů 9DSV-161000-A200 | Skladem | 668,07 Kč | ||
| 36 | FUSE 50A CFC#-150008-4500 | Skladem | 101,56 Kč | ||
| 37 | CABLE, STARTER MOTOR 9CS#-150220-6701 | Není skladem | |||
| 38 | NEGATIVE CABLE, STARTER MOTOR 9CS#-150250-6700 | Není skladem | |||
| 39 | MOUNTING PLATE,FUSE BOX 9DS#-030501-6000 | Není skladem | |||
| 40 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 41 | CAP, DIAGNOSIS CONNECTOR 5BY0-150304 | Skladem | 116,06 Kč | ||
| 42 | FUSE (40A) 9CR6-103501 | Skladem | 101,56 Kč | ||
| 43 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 44 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 45 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 46 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 47 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 48 | TRAILER TURN LIGHT CONTROL UNIT 5ASV-161001-7D00 | Skladem | |||
| 49 | INDICATOR 4020-160603 | Skladem | 155,36 Kč | ||
| 50 | BRACKET,FLASHER MODULE 9010-030013 | Skladem | 62,15 Kč | ||
| 51 | SELF-TAPPING SCREW ST4.2×16 30110-420160010 | Skladem | 15,54 Kč | ||
