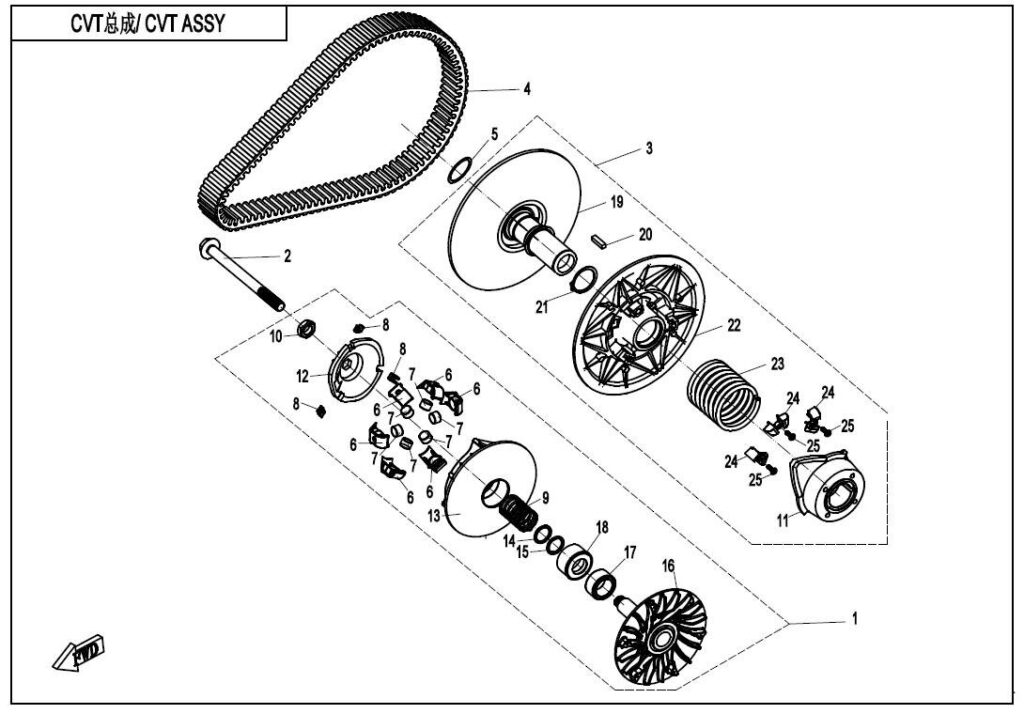

CLUTCH & CVT ASSY.
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | DRIVE PULLEY ASSY 0GS0-051000-00011 | Skladem | 22 372,42 Kč | ||
| 01 | DRIVE PULLEY ASSY 0GS0-051000-00031 | Skladem | 22 372,42 Kč | ||
| 01 | DRIVE PULLEY ASSY 0GS0-051000-10010 | Skladem | 22 372,42 Kč | ||
| 01 | DRIVE PULLEY ASSY. 0GS0-051000-00030 | Skladem | 22 372,42 Kč | ||
| 02 | BOLT, DRIVE PULLEY 0JY0-050001-00001 | Skladem | 130,57 Kč | ||
| 03 | PULLEY, DRIVEN 0GR0-052000 | Skladem | 16 515,19 Kč | ||
| 04 | ŘEMEN CVT 0180-055000-0004 | Skladem | 4 518,61 Kč | ||
| 04 | ŘEMEN CVT 0180-055000-0003 | Skladem | 4 518,61 Kč | ||
| 04 | ŘEMEN CVT 0180-055000-0005 | Skladem | |||
| 05 | ADJUSTING WASHER 0GR0-050001-00001 | Skladem | 15,54 Kč | ||
| 06 | NYLON PROTECTOR,WEIGHT ROLLER 0GR0-051005 | Skladem | 605,92 Kč | ||
| 07 | WEIGHT ROLLER 0GS0-051002 | Skladem | 605,92 Kč | ||
| 07 | WEIGHT ROLLER 0GR0-051004-20000 | Skladem | 246,84 Kč | ||
| 08 | NYLON PARTS, THRUST DISC 0JYA-051004-10000 | Skladem | 450,56 Kč | ||
| 09 | SPRING, DRIVE PULLEY 0GS0-051001 | Skladem | 1 258,45 Kč | ||
| 09 | SPRING,DRIVE PULLEY 0JY0-051002 | Skladem | 1 258,45 Kč | ||
| 10 | BOLT, DRIVE PULLEY ⌀22L 0JYA-051013-10001 | Skladem | 1 087,55 Kč | ||
| 10 | NUT, DRIVE PULLEY ⌀22L 0JYA-051013-10000 | Skladem | 2 827,62 Kč | ||
| 11 | CAM PLATE 0GR0-052002 | Skladem | 4 070,54 Kč | ||
| 12 | THRUST COLLAR 0JYA-051006-10000 | Skladem | 7 553,06 Kč | ||
| 13 | MOVING PLATE ASSY, DRIVE PULLEY 0JYA-051100 | Skladem | 13 299,16 Kč | ||
| 14 | STEEL WASHER 0GR0-051011 | Skladem | 403,95 Kč | ||
| 15 | NYLON WASHER 0GR0-051009-10000 | Skladem | 403,95 Kč | ||
| 16 | DRIVE FIXED PULLEY ASSY 0GS0-051200 | Skladem | 20 104,10 Kč | ||
| 17 | OVERRIDING CLUTCH 0GR0-051300 | Skladem | 5 200,36 Kč | ||
| 18 | SPRING SEAT 0GR0-051001 | Skladem | 2 035,27 Kč | ||
| 19 | DRIVEN FIXED PULLEY ASSY 0GR0-052100 | Skladem | 15 008,16 Kč | ||
| 20 | TAPER KEY 0GR0-052003 | Skladem | 124,29 Kč | ||
| 21 | CIRCLIP 0GR0-052004 | Skladem | 449,74 Kč | ||
| 22 | DRIVEN SLIDING PULLEY ASSY 0GR0-052200 | Skladem | 10 160,81 Kč | ||
| 23 | SPRING, DRIVEN PULLEY 0GR0-052001 | Skladem | 3 355,86 Kč | ||
| 24 | NYLON BLOCK 0GR0-052005 | Skladem | 449,74 Kč | ||
| 25 | Šroub (vrut) 0GR0-052006 | Skladem | 124,29 Kč | ||
