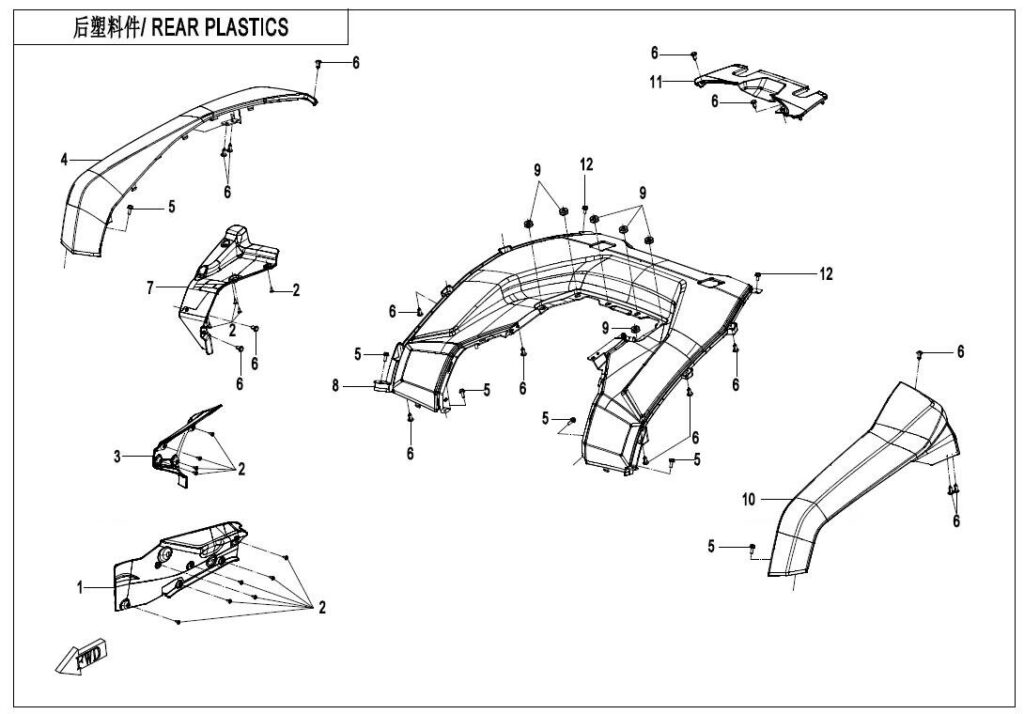

REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | HEAT INSULATOR, RH SIDE COVER 9DS#-043066-6001 | Skladem | 403,95 Kč | ||
| 01 | TAIL LIGHT PANEL 9DS#-043011-6001 | Skladem | 2 672,26 Kč | ||
| 02 | SCREW M6×17.5 ARMY GREEN 8030-040020-1000 | Skladem | 31,07 Kč | ||
| 02 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 03 | INSULATOR, RH SIDE COVER DECO PLATE 9DS#-043067-6001 | Skladem | |||
| 03 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 04 | Matice 30204-050810 | Skladem | 15,54 Kč | ||
| 04 | REAR RH FENDER 9DS#-043032-6001 | Skladem | 435,02 Kč | ||
| 05 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 05 | SELF-TAPPING SCREW 30110-480130010 | Skladem | 15,54 Kč | ||
| 06 | MAIN SHAFT, SIDE BOX 6L30-220023 | Není skladem | |||
| 06 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 07 | HEAT INSULATOR, REAR FENDER 9DS#-043068-6001 | Skladem | 357,34 Kč | ||
| 07 | NYLON GASKET Φ8 6NTG-050002 | Skladem | 15,54 Kč | ||
| 08 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 08 | REAR FENDER CRYSTAL ORANGE 9DS#-043021-6001-0Y600 | Skladem | |||
| 08 | REAR FENDER PEARL BLUE 9DS#-043021-6001-0P500 | Skladem | |||
| 08 | REAR FENDER ROYAL BLUE 9DS#-043021-6001-0EC00 | Skladem | |||
| 08 | REAR FENDER TITANIUM GRAY 9DS#-043021-6001-0B500 | Skladem | 3 977,32 Kč | ||
| 08 | REAR FENDER TRUE TIMBER CAMO 9DS#-043021-6001-0RE00 | Skladem | 7 239,96 Kč | ||
| 09 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 09 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 10 | MAGNETIC BOLT ASSY I 6NTG-049060 | Skladem | 93,22 Kč | ||
| 10 | REAR LH FENDER 9DS#-043031-6001 | Skladem | 435,02 Kč | ||
| 11 | STEEL COLLAR，HEADLIGHT 9010-160102 | Skladem | 15,54 Kč | ||
| 11 | UPPER COVER, REAR FENDER CRYSTAL ORANGE 9DS#-043064-6002-0Y600 | Skladem | |||
| 11 | UPPER COVER, REAR FENDER PEARL BLUE 9DS#-043064-6002-0P500 | Skladem | |||
| 11 | UPPER COVER, REAR FENDER ROYAL BLUE 9DS#-043064-6002-0EC00 | Skladem | |||
| 11 | UPPER COVER, REAR FENDER TITANIUM GRAY 9DS#-043064-6002-0B500 | Skladem | |||
| 11 | UPPER COVER, REAR FENDER TRUE TIMBER CAMO 9DS#-043064-6002-0RE00 | Skladem | |||
| 12 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 12 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 13 | HOOK LOCK, TAIL BOX 9DS#-044061-6001 | Skladem | 31,07 Kč | ||
| 14 | LOCK PIN, TAIL BOX 9DS#-044062-6000 | Skladem | 62,15 Kč | ||
| 15 | COTTER CIRCLIP 3 30802-00303 | Skladem | 15,54 Kč | ||
| 16 | ROD SEAT A010-220032 | Není skladem | |||
| 17 | LONG SHAFT ROD A010-220037 | Skladem | 62,15 Kč | ||
| 18 | SHORT SHAFT ROD A010-220036 | Skladem | 62,15 Kč | ||
| 19 | WATER-PROOF STRAP, REAR STORAGE CASE 9DS#-044063-6001 | Není skladem | |||
| 20 | LOCK SEAT A010-220033 | Skladem | 31,07 Kč | ||
| 21 | Šroub (vrut) 30105-040016410 | Není skladem | |||
| 22 | LOCK CATCH, TAIL BOX 9DS#-044059-6000 | Skladem | 46,61 Kč | ||
| 23 | COVER, REAR STORAGE BOX 9DS#-043012-6002 | Skladem | 776,82 Kč | ||
| 24 | SELF-TAPPING SCREW ST4.2×16 30110-420160010 | Skladem | 15,54 Kč | ||
| 25 | Matice 30200-040810 | Není skladem | |||
