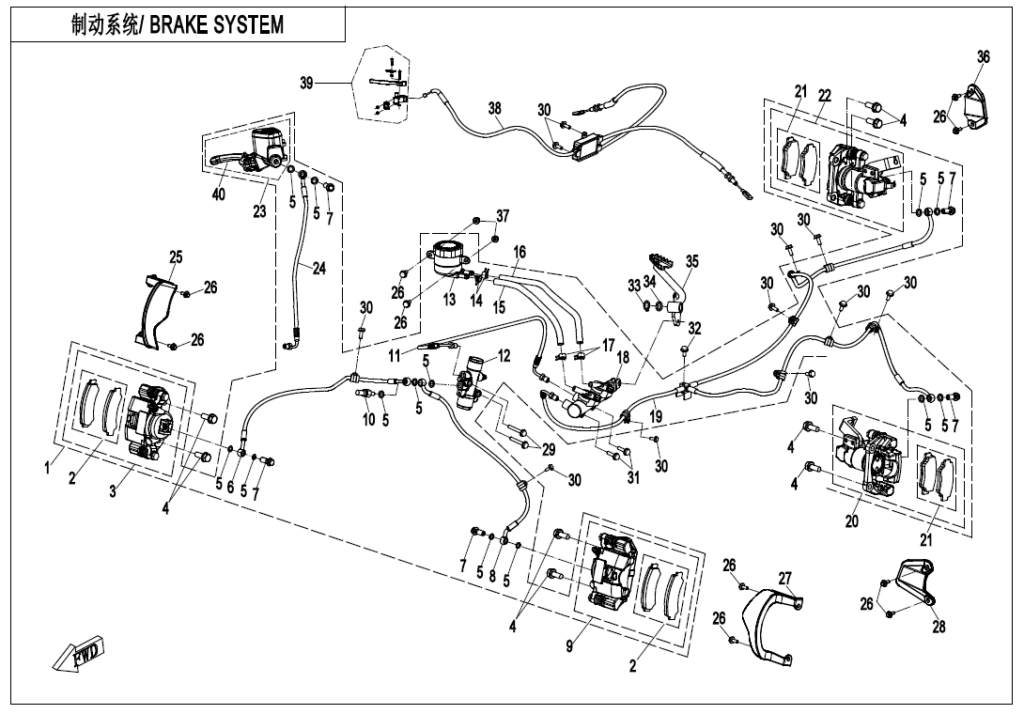

F08-B-V2 BRAKE SYSTEM(LOF)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | HYDRAULIC BRAKE ASSY 9DSV-081000-B001 | Skladem | |||
| 02 | FRONT BRAKE PAD ASSY 5ASV-0811A0 | Skladem | |||
| 03 | FRONT BRAKE CALIPER, RH 9DSV-081200-A200 | Skladem | 3 635,52 Kč | ||
| 04 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 05 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 06 | RH FRONT BRAKE FULID HOSE 9DS#-081020-6000 | Skladem | 1 072,01 Kč | ||
| 07 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 08 | LH FRONT BRAKE FULID HOSE 9DS#-081010-6000 | Skladem | 1 072,01 Kč | ||
| 09 | FRONT BRAKE CALIPER, LH 9DSV-081100-A200 | Skladem | 3 635,52 Kč | ||
| 10 | HYDRAULIC INDUCTION SWITCH 5HY0-080010-20000 | Skladem | 574,85 Kč | ||
| 11 | FRONT BRAKE FULID HOSE 9DS#-081040-6000 | Skladem | 963,26 Kč | ||
| 12 | Rozdělovač brzd 9AWV-081070-4000 | Skladem | 2 283,85 Kč | ||
| 13 | FLUID RESERVOIR 9DSV-081010-7201 | Skladem | |||
| 14 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 15 | HOSE 2,FLUID RESERVOIR 9CR6-081002 | Skladem | 77,68 Kč | ||
| 16 | HOSE 1,FLUID RESERVOIR 9CR6-081001 | Skladem | 93,22 Kč | ||
| 17 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 18 | MASTER CYLINDER 9CRB-081010 | Skladem | 2 485,82 Kč | ||
| 19 | REAR BRAKE FLUID HOSE 9DS#-081030-6001 | Skladem | 3 371,40 Kč | ||
| 20 | REAR LH BRAKE CALIPER ASSY 9DSV-081050-B000 | Skladem | 5 950,44 Kč | ||
| 21 | REAR BRAKE PAD ASSY 5ASV-0813A0 | Skladem | 1 227,38 Kč | ||
| 22 | REAR RH BRAKE CALIPER ASSY 9DSV-081060-B000 | Skladem | 5 950,44 Kč | ||
| 23 | MASTER CYLINDER ASSY., RH HAND BRAKE 9AY0-081200 | Skladem | 2 687,80 Kč | ||
| 24 | BRAKE FLUID HOSE, LH HAND BRAKE 9AY0-081010 | Skladem | 1 072,01 Kč | ||
| 25 | GUARD, FRONT RH CV JOINT 9DS#-080002-6001 | Skladem | 87,05 Kč | ||
| 26 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 27 | GUARD, FRONT LH CV JOINT 9DS#-080001-6001 | Skladem | 87,05 Kč | ||
| 28 | GUARD, REAR LH CV JOINT 9DS#-080003-6001 | Skladem | 31,07 Kč | ||
| 29 | BOLT M6x45 30006-060045810 | Skladem | 15,54 Kč | ||
| 30 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 31 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 32 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 33 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 34 | Podložka 30306-140112 | Skladem | 15,54 Kč | ||
| 35 | PEDAL, BRAKE 9CRB-080100 | Skladem | 348,19 Kč | ||
| 36 | GUARD, REAR RH CV JOINT 9DS#-080004-6001 | Skladem | 31,07 Kč | ||
| 37 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 38 | CABLE, REAR BRAKE 9GQA-080300 | Skladem | 1 059,08 Kč | ||
| 39 | PARKING BRAKE LEVER 9DSV-083010-6H00 | Skladem | 761,28 Kč | ||
| 40 | Brzdová páčka 9AY0-081225 | Skladem | 357,34 Kč | ||
