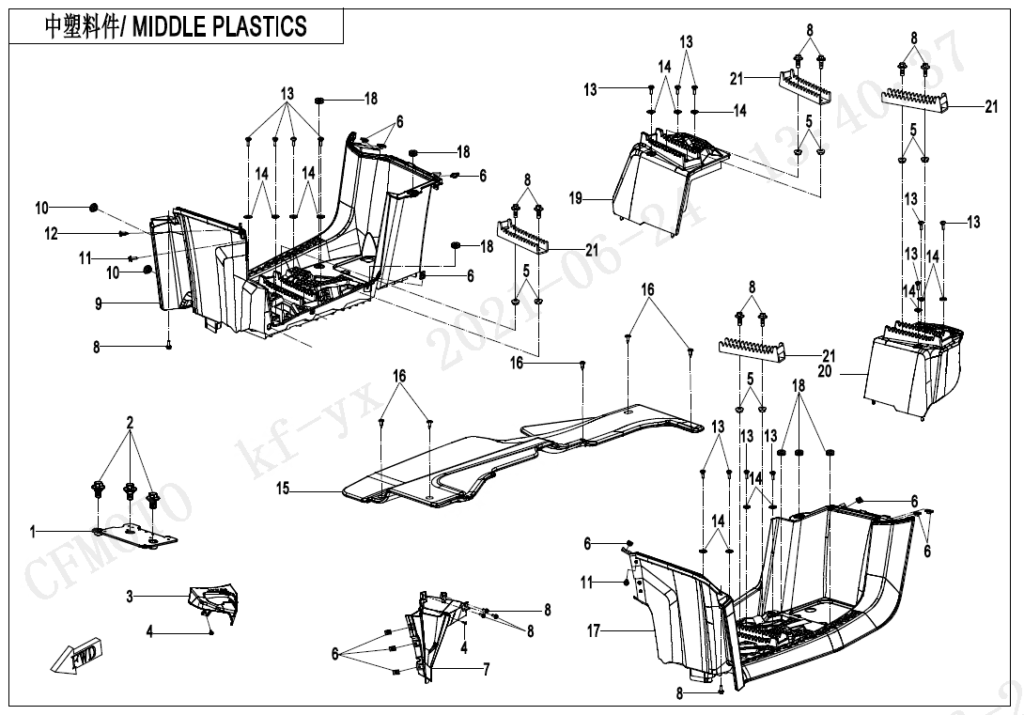

F04-3-B MIDDLE PLASTICS(WITHOUT GEARSHIFT LOCK)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | ECU BRACKET 9DSV-042078-6K00 | Není skladem | |||
| 02 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 03 | DECO COVER, GEAR SHIFT 9DS#-043023-6000 | Skladem | 77,68 Kč | ||
| 04 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 05 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 06 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 07 | LH LOWER SIDE COVER 9DSV-042061-6002 | Skladem | |||
| 08 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 09 | RH FOOT PEDAL 9CSV-042071-6403 | Skladem | 1 771,15 Kč | ||
| 10 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 11 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 12 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 13 | BOLT M6x14 5HY#-040001-1000 | Skladem | 15,54 Kč | ||
| 14 | NYLON GASKET Φ8 6NTG-050002 | Skladem | 15,54 Kč | ||
| 15 | HEAT INSULATOR, FUEL TANK LOWER PANEL 9DS#-042079-6001 | Skladem | 481,63 Kč | ||
| 16 | SELF-TAPPING SCREW 30110-420095010 | Skladem | 29,02 Kč | ||
| 17 | LH PEDAL, LONG MODEL 9CS#-042069-6402 | Skladem | 1 771,15 Kč | ||
| 18 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 19 | BLOCK, RH FOOTREST 9CS#-042074-6401 | Skladem | 357,34 Kč | ||
| 20 | BLOCK, LH FOOTREST 9CS#-042073-6401 | Skladem | 357,34 Kč | ||
| 21 | ANTISKID ASSY 9CR6-042040-20000 | Skladem | 559,31 Kč | ||
