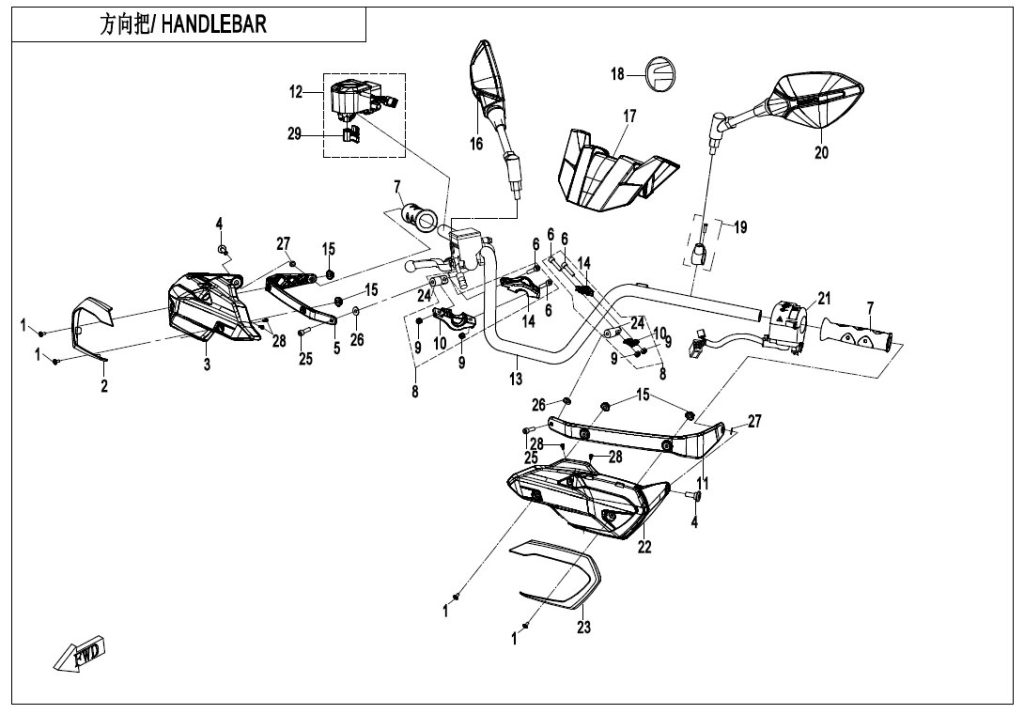

F10-1 HANDLEBAR
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | INNER HEX SCREW M6x16 6NQ#-000206-6001 | Skladem | 31,07 Kč | ||
| 02 | DECO PLATE, HAND GUARD(RH), NEBULA BLACK 9AWA-101302-0BM00 | Skladem | 124,29 Kč | ||
| 02 | DECO PLATE, RH HAND GUARD 9AWA-101302-0ET00 | Skladem | 201,97 Kč | ||
| 02 | DECO PLATE, RH HAND GUARD VELOCITY GREY 9AWA-101302-0HC00 | Skladem | 217,51 Kč | ||
| 02 | Pravý lem krytu řidítek GRANITE RIDGE 9AWA-101302-0BQ00 | Skladem | 124,29 Kč | ||
| 02 | RH HAND GUARD DECO PLATE 9AWA-101302-0RJ00 | Skladem | 295,19 Kč | ||
| 02 | RH HAND GUARD DECO PLATE 9AWA-101302-0BU00 | Skladem | 186,44 Kč | ||
| 02 | RH HAND GUARD DECO PLATE 9AWA-101302-0K100 | Skladem | 559,31 Kč | ||
| 03 | HAND GUARD, RH 9AWA-101301-10000 | Skladem | 186,44 Kč | ||
| 04 | Šroub (vrut) A000-080001 | Skladem | 43,52 Kč | ||
| 05 | HANDGUARD LEVER, RH 9AWA-101303-10000 | Skladem | 186,44 Kč | ||
| 06 | SCREW M6x22 30102-060022810 | Skladem | 15,54 Kč | ||
| 07 | RUBBER SLEEVE, HAND GRIP 9DQV-100005-3000 | Skladem | 170,90 Kč | ||
| 08 | BRACKET ASSY 9AWA-101230-10000 | Skladem | 124,29 Kč | ||
| 09 | NUT M6 30224-060810 | Skladem | 15,54 Kč | ||
| 10 | PRESS COVER ，BRACKET 9CR6-101204-10000 | Skladem | 58,03 Kč | ||
| 11 | HANDGUARD LEVER, LH 9AWA-101203-20000 | Skladem | 186,44 Kč | ||
| 12 | 2WD/4WD SWITCH ASSY 9DSV-169080-6000 | Skladem | 5 655,25 Kč | ||
| 12 | 2WD/4WD SWITCH ASSY 9DSV-169080-A500 | Skladem | |||
| 13 | HANDLEBAR ASSY 9DSV-101100-6K01-0BU00 | Skladem | 1 351,67 Kč | ||
| 14 | SEAT, BRACKET 9CR6-101202-10000 | Skladem | 58,08 Kč | ||
| 15 | Matice 30206-060570 | Skladem | 46,61 Kč | ||
| 16 | REAR VIEW MIRROR ASSY, RH 9AY0-200300 | Skladem | 590,38 Kč | ||
| 17 | UPPER GUARD, HANDLEBAR 9DSV-101001-6K00 | Skladem | 139,83 Kč | ||
| 18 | CFMOTO STICKER 9AWV-190001-2E00 | Není skladem | 186,44 Kč | ||
| 19 | MOUNTING SEAT, REAR VIEW MIRROR 9CRV-080400-2400 | Skladem | 186,44 Kč | ||
| 20 | REAR VIEW MIRROR ASSY, LH 9AY0-200200 | Skladem | 590,38 Kč | ||
| 21 | HANDLEBAR SWITCH, LH 9DSV-166000-B100 | Skladem | 6 665,12 Kč | ||
| 22 | HAND GUARD, LH 9AWA-101201-10000 | Skladem | 186,44 Kč | ||
| 23 | DECO PLATE, HAND GUARD(LH), NEBULA BLACK 9AWA-101202-0BM00 | Skladem | 124,29 Kč | ||
| 23 | DECO PLATE, LH HAND GUARD 9AWA-101202-0ET00 | Skladem | 201,97 Kč | ||
| 23 | DECO PLATE, LH HAND GUARD VELOCITY GREY 9AWA-101202-0HC00 | Skladem | 217,51 Kč | ||
| 23 | Levý lem krytu řidítek GRANITE RIDGE 9AWA-101202-0BQ00 | Skladem | 124,29 Kč | ||
| 23 | LH HAND GUARD DECO PLATE 9AWA-101202-0RJ00 | Skladem | 295,19 Kč | ||
| 23 | LH HAND GUARD DECO PLATE 9AWA-101202-0BU00 | Skladem | 186,44 Kč | ||
| 23 | LH HAND GUARD DECO PLATE 9AWA-101202-0K100 | Skladem | 559,31 Kč | ||
| 24 | CONNECTOR, BRACKET 9CR6-101203-10000 | Skladem | 46,61 Kč | ||
| 25 | INNER HEX SCREW M6x20 6NQ#-000203-6001 | Skladem | 29,04 Kč | ||
| 26 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 27 | Podložka 30305-080112 | Skladem | 15,54 Kč | ||
| 28 | SELF-TAPPING SCREW 30110-420095010 | Skladem | 29,02 Kč | ||
| 29 | Páčka plynu 9DSV-169450-A000-20 | Skladem | 326,26 Kč | ||
