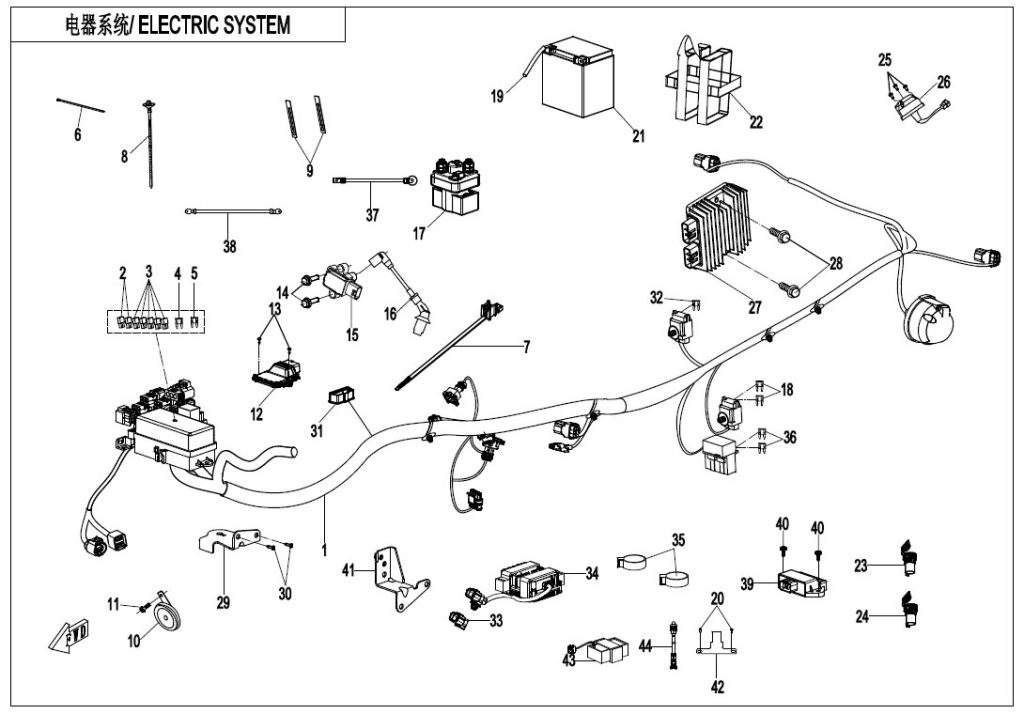

F15-1-A-V3 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 9CSV-150100-B500 | Skladem | |||
| 02 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 03 | AUXILIARY RELAY CFCV-150525-2000-M1 | Skladem | 145,20 Kč | ||
| 04 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 05 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 06 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 07 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 08 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 09 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 10 | HORN 9DQV-151400-3000 | Skladem | 290,40 Kč | ||
| 11 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 12 | ECM ASSY 9DSV-001000-B101 | Skladem | |||
| 12 | ECM ASSY 9DSV-001000-B101-10 | Skladem | |||
| 12 | ECM ASSY 9DSV-001000-B500 | Skladem | |||
| 12 | ECM ASSY 9DSV-001000-B500-10 | Skladem | |||
| 14 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 15 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 16 | HIGH-TENSION CABLE 0GSV-178000-3001 | Skladem | |||
| 17 | STARTER RELAY 9DSV-150510-5001 | Skladem | 823,43 Kč | ||
| 18 | 30A FUSE 806A-151308 | Skladem | 31,07 Kč | ||
| 19 | NEGATIVE WIRE, BATTERY 9DS#-150210-6000 | Není skladem | 466,09 Kč | ||
| 20 | Šroub 30006-050016810 | Skladem | 15,54 Kč | ||
| 21 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 22 | BELT,BETTERY 9060-152100 | Skladem | 124,29 Kč | ||
| 23 | USB OUTPUT SOCKET ASSY 9DSV-151200-6000 | Není skladem | 528,24 Kč | ||
| 24 | POWER OUTLET SOCKET ASSY 9DSV-150500-6R01 | Skladem | 543,77 Kč | ||
| 25 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 26 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 27 | REGULATOR 9DSV-151000-4000-10 | Skladem | 3 588,91 Kč | ||
| 28 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 29 | MOUNTING PLATE,FUSE BOX 9DS#-030501-6000 | Není skladem | 46,61 Kč | ||
| 30 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 31 | DIAGNOSIS CONNECTOR COVER CFCV-11H016-2000-M1 | Skladem | 15,54 Kč | ||
| 32 | FUSE (40A) 9CR6-103501 | Skladem | 101,56 Kč | ||
| 33 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 34 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 35 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 36 | FUSE 50A CFCV-150009-4500 | Skladem | 93,22 Kč | ||
| 37 | CABLE, STARTER MOTOR 9CS#-150220-6701 | Není skladem | 885,57 Kč | ||
| 38 | NEGATIVE CABLE, STARTER MOTOR 9CS#-150250-6700 | Není skladem | 528,24 Kč | ||
| 39 | Přerušovač blinkrů 9DSV-161000-A200 | Skladem | 668,07 Kč | ||
| 40 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 41 | BRACKET, STEPPER MOTOR 9GQA-030010-20000 | Skladem | 145,08 Kč | ||
| 42 | BRACKET,FLASHER MODULE 9010-030013 | Skladem | 62,15 Kč | ||
| 43 | TRAILER TURN LIGHT CONTROL UNIT 5ASV-161001-7D00 | Skladem | 1 103,08 Kč | ||
| 44 | INDICATOR 4020-160603 | Skladem | 155,36 Kč | ||
