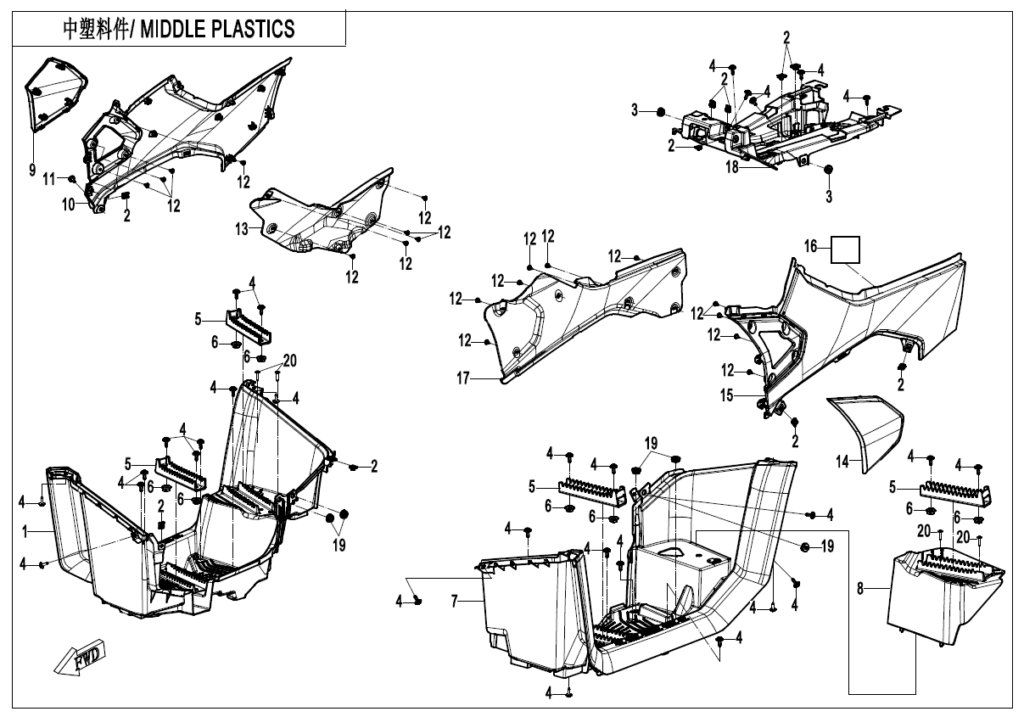

F04-3-V2 MIDDLE PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | RH FOOT PEDAL 9AWV-042032-8002 | Skladem | 1 631,32 Kč | ||
| 2 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 3 | RUBBER SLEEVE 9AWV-015003-8000 | Skladem | 15,54 Kč | ||
| 4 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 5 | ANTISKID ASSY 9CR6-042040-20000 | Skladem | 559,31 Kč | ||
| 6 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 7 | LH FOOT PEDAL 9AWV-042031-8001 | Skladem | 1 631,32 Kč | ||
| 8 | LH FOOT PEDAL BLOCK 9AWV-042033-8002 | Skladem | 419,48 Kč | ||
| 9 | RH FRONT SIDE COVER 9AWV-042025-8000 | Skladem | 188,76 Kč | ||
| 10 | RH SIDE COVER 9AWV-042022-8001-0HJ00 | Skladem | 1 677,93 Kč | ||
| 10 | RH SIDE COVER 9AWV-042022-8001-0RE00 | Skladem | 2 252,78 Kč | ||
| 10 | RH SIDE COVER 9AWV-042022-8001-0YD00 | Skladem | 1 677,93 Kč | ||
| 11 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 12 | INNER HEX SLEF-TAPPING SCREW ST4.8×13 5BWV-040015-5000 | Skladem | 15,54 Kč | ||
| 13 | RH SIDE COVER HEAT INSULATOR 9AWV-042027-8000 | Skladem | 745,75 Kč | ||
| 14 | LH FRONT SIDE COVER 9AWV-042024-8000 | Skladem | 159,72 Kč | ||
| 15 | LH SIDE COVER 9AWV-042021-8001-0HJ00 | Skladem | 1 677,93 Kč | ||
| 15 | LH SIDE COVER 9AWV-042021-8001-0RE00 | Skladem | 2 252,78 Kč | ||
| 15 | LH SIDE COVER 9AWV-042021-8001-0YD00 | Skladem | 1 677,93 Kč | ||
| 16 | SCROLL PAPER, HEAT INSULATION 50*0.062（m） TFQ004 | Skladem | 72,54 Kč | ||
| 17 | LH SIDE COVER HEAT INSULATOR 9AWV-042028-8000 | Skladem | 559,31 Kč | ||
| 18 | SEAT LOWER PANEL 9AWV-042011-8001 | Skladem | 559,31 Kč | ||
| 19 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 20 | M6×30 BOLT 5BWV-040018-5000 | Skladem | 31,07 Kč | ||
