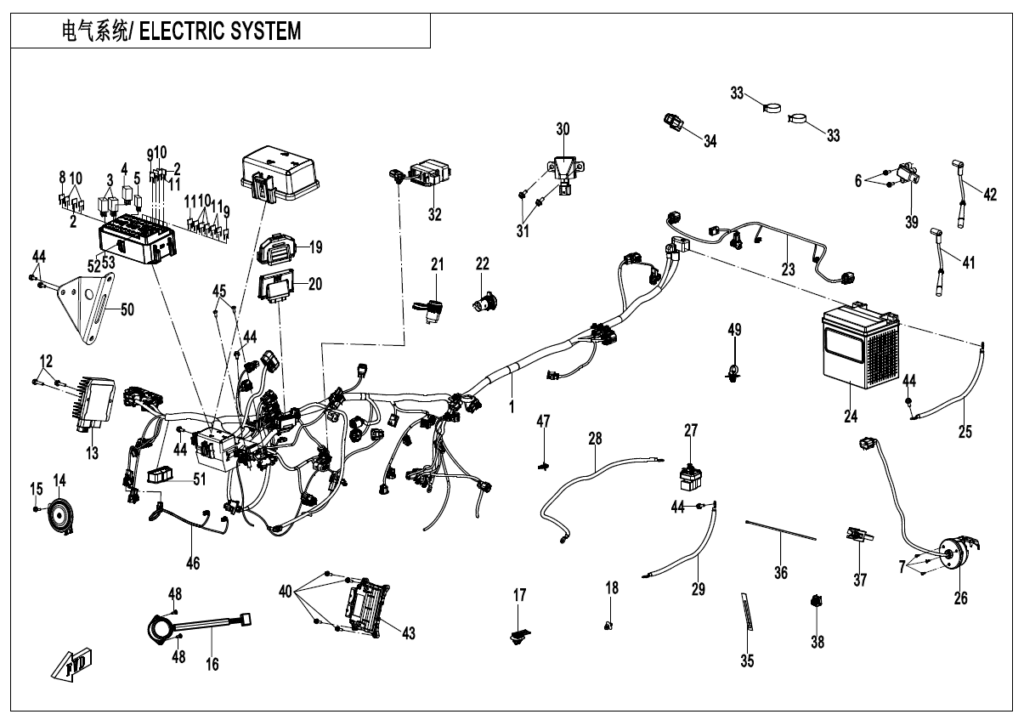

F15-1-V2 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 9AWV-150100-1400 | Skladem | |||
| 01 | MAIN CABLE 9AWV-150100-1100 | Skladem | |||
| 02 | 20A FUSE 806A-151306 | Skladem | 31,07 Kč | ||
| 03 | AUXILIARY RELAY CFCV-150525-2000-M1 | Skladem | 145,20 Kč | ||
| 04 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 05 | AUXILIARY RELAY CFCV-150524-2000-M1 | Skladem | 124,29 Kč | ||
| 06 | BOLT M6x25 0010-021017-0010 | Skladem | 15,54 Kč | ||
| 07 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 08 | FUSE 7.5A 806A-151301 | Skladem | 15,54 Kč | ||
| 09 | 30A FUSE 806A-151308 | Skladem | 31,07 Kč | ||
| 10 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 11 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 12 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 13 | REGULATOR 0800-177000-30000 | Skladem | 4 303,58 Kč | ||
| 14 | HORN 9DQV-151400-3000 | Skladem | 290,40 Kč | ||
| 15 | Šroub 30006-080016870 | Skladem | 15,54 Kč | ||
| 16 | ALARM 9DQV-150300-3000-10 | Skladem | 1 056,48 Kč | ||
| 17 | CLASP 6GU#-150001-6000-M1 | Skladem | 29,04 Kč | ||
| 18 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 19 | BUSHING, VEHICLE CONTROL UNIT 6WWV-150420-5000-10 | Skladem | 174,24 Kč | ||
| 20 | BCM 9AWV-151900-8001 | Skladem | 8 731,46 Kč | ||
| 21 | USB OUTPUT SEAT ASSY 9AWV-151200-8000 | Skladem | 1 569,18 Kč | ||
| 22 | POWER OUTLET 6WWV-150500-5000-10 | Skladem | 574,85 Kč | ||
| 23 | TAIL LIGHT ADAPTER CABLE 9AWV-150184-8000 | Skladem | 1 072,01 Kč | ||
| 24 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 25 | BATTERY NEGATIVE CABLE 9AWV-150420-8000 | Skladem | 543,77 Kč | ||
| 26 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 26 | TRAILER POWER SOCKET 9DQV-151300-3101 | Skladem | 1 491,49 Kč | ||
| 27 | STARTER RELAY 9DSV-150510-5001 | Skladem | 823,43 Kč | ||
| 28 | STARTER MOTOR POSITIVE CABLE 9AWV-150310-8002 | Skladem | 978,79 Kč | ||
| 29 | STARTER MOTOR NEGATIVE CABLE 9AWV-150320-8001 | Skladem | 497,16 Kč | ||
| 30 | ANGLE SENSOR 9AWV-155400-8000 | Není skladem | 3 153,89 Kč | ||
| 31 | Šroub (vrut) 30102-060016830 | Skladem | 15,54 Kč | ||
| 32 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 32 | Jednotka T-BOX SN1V-691100-1501-11 | Skladem | |||
| 33 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 34 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 35 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 36 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 37 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 38 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 39 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 40 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 41 | HIGH-TENSION CABLE 1 9AWV-003200-8000 | Skladem | 512,70 Kč | ||
| 42 | HIGH TENSION CABLE ASSY 9AWV-003300-8000 | Skladem | 481,63 Kč | ||
| 43 | ECM ASSY 9AWV-001000-1200 | Skladem | |||
| 43 | ECM ASSY 9AWV-001000-1100 | Skladem | |||
| 43 | ECM ASSY 9AWV-001000-1300 | Skladem | |||
| 44 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 45 | SELF-TAPPING SCREW ST4.8×13 30132-480130030 | Skladem | 29,02 Kč | ||
| 46 | FRONT POSITION LIGHT PATCH CORD 9AWV-150174-8001 | Skladem | 792,36 Kč | ||
| 47 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 48 | Šroub (vrut) 30110-290095010 | Skladem | 15,54 Kč | ||
| 49 | TIE BAND CFCV-BBC001-2000-M1 | Skladem | 31,07 Kč | ||
| 50 | REGULATOR BRACKET 9AWV-030070-9500 | Skladem | 170,90 Kč | ||
| 51 | CAP, DIAGNOSIS CONNECTOR 5BY0-150304 | Skladem | 116,06 Kč | ||
| 52 | 50A FUSE 5BY0-150303 | Skladem | 62,15 Kč | ||
| 53 | 60A FUSE CFCV-150011-4500-M1 | Skladem | 62,15 Kč | ||
