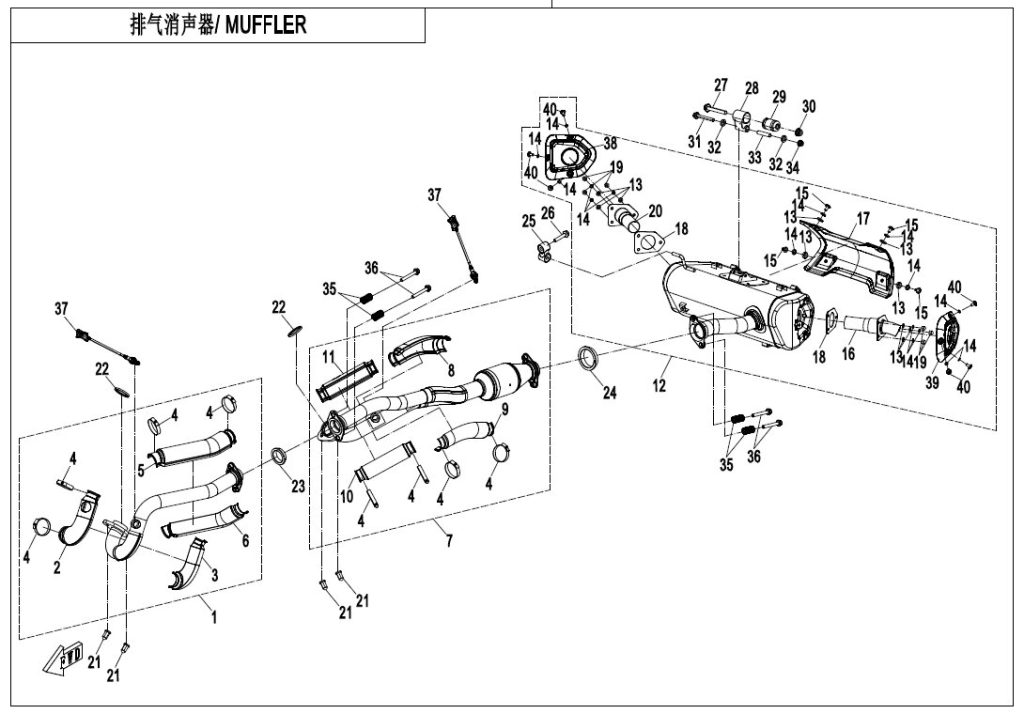

F02-1 MUFFLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | EXHAUST PIPE ASSY, FRONT CYLINDER 9AWV-021100-8001 | Není skladem | 3 946,25 Kč | ||
| 02 | HEAT INSULATION GUARD 1 9AWV-021100-8000-21 | Skladem | 279,66 Kč | ||
| 03 | HEAT INSULATION GUARD 2 9AWV-021100-8000-22 | Skladem | 279,66 Kč | ||
| 04 | SCREW CLAMP，A-TYPE 7030-021305 | Skladem | 108,75 Kč | ||
| 05 | HEAT INSULATION GUARD 3 9AWV-021100-8000-24 | Skladem | 145,20 Kč | ||
| 06 | HEAT INSULATION GUARD 4 9AWV-021100-8000-27 | Skladem | 130,68 Kč | ||
| 07 | 2 IN 1 EXHAUST PIPE ASSY 9AWV-021200-8002 | Skladem | 12 848,60 Kč | ||
| 08 | HEAT INSULATION GUARD 1 9AWV-021200-8000-20 | Skladem | 145,20 Kč | ||
| 09 | HEAT INSULATION GUARD 2 9AWV-021200-8000-21 | Skladem | 130,68 Kč | ||
| 10 | HEAT INSULATION GUARD 3 9AWV-021200-8000-25 | Skladem | 93,22 Kč | ||
| 11 | HEAT INSULATION GUARD 4 9AWV-021200-8000-27 | Skladem | 101,64 Kč | ||
| 12 | Sestava výfuku a tlumiče 9AWV-021300-8001 | Není skladem | 14 852,80 Kč | ||
| 13 | WASHER 6 30306-060800 | Skladem | 31,07 Kč | ||
| 14 | Podložka 30303-060900 | Skladem | 15,54 Kč | ||
| 15 | INNER HEX SCREW M6x12 6WWV-046701-5000 | Skladem | 15,54 Kč | ||
| 16 | LH SPARK ARRESTOR 9AWV-021332-8001 | Skladem | 823,43 Kč | ||
| 17 | MUFFLER DECO GUARD 9AWV-021300-8001-20 | Skladem | 1 025,40 Kč | ||
| 18 | GASKET, GRAPHITE 9AWV-021001-8000 | Skladem | 246,84 Kč | ||
| 19 | Matice 30212-060830 | Skladem | 15,54 Kč | ||
| 20 | RH SPARK ARRESTOR 9AWV-021331-8001 | Skladem | 823,43 Kč | ||
| 21 | NUT M8, MUFFLER JOINT 8010-020001 | Skladem | 15,54 Kč | ||
| 22 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 23 | SMALL GRAPHITE RING 9AWA-021003-00002 | Skladem | 155,36 Kč | ||
| 24 | GRAPHITE RING, BIG 9AWA-021004-00002 | Skladem | 186,44 Kč | ||
| 25 | CONNECTING PARTS, ENGINE UPPER BRACKET 7020-000160 | Skladem | 290,16 Kč | ||
| 26 | BOLT M8x35 30006-080035810 | Skladem | 29,02 Kč | ||
| 27 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 28 | MOUNT ASSY, MUFFLER 9AWV-020004-8000 | Skladem | 124,29 Kč | ||
| 29 | CUSHION SLEEVE ASSY 5BY0-020030-00001 | Skladem | 497,16 Kč | ||
| 30 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 31 | Šroub 30006-080065810 | Skladem | 31,07 Kč | ||
| 32 | WIRE WASHER 9CR6-020003 | Skladem | 46,61 Kč | ||
| 33 | LINER, MUFFLER 7020-020001 | Skladem | 62,15 Kč | ||
| 34 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 35 | MUFFLER PRESS SPRING 9AWV-021002-8000 | Skladem | 93,22 Kč | ||
| 35 | SPRING, MUFFLER 9AWA-021001 | Skladem | 46,61 Kč | ||
| 36 | CONNECTING BOLT M8X63 9AWV-020023-8000 | Skladem | 62,15 Kč | ||
| 36 | LIMIT BOLT 9AWV-020022-8001 | Skladem | 101,64 Kč | ||
| 37 | OXYGEN SENSOR 0HU0-176000 | Skladem | 3 045,13 Kč | ||
| 38 | MUFFLER RH DECO GUARD 9AWV-021300-8000-23 | Skladem | 621,46 Kč | ||
| 39 | MUFFLER LH DECO GUARD 9AWV-021300-8000-21 | Skladem | 621,46 Kč | ||
| 40 | Šroub (vrut) 9AWV-021300-8000-22 | Skladem | 46,61 Kč | ||
