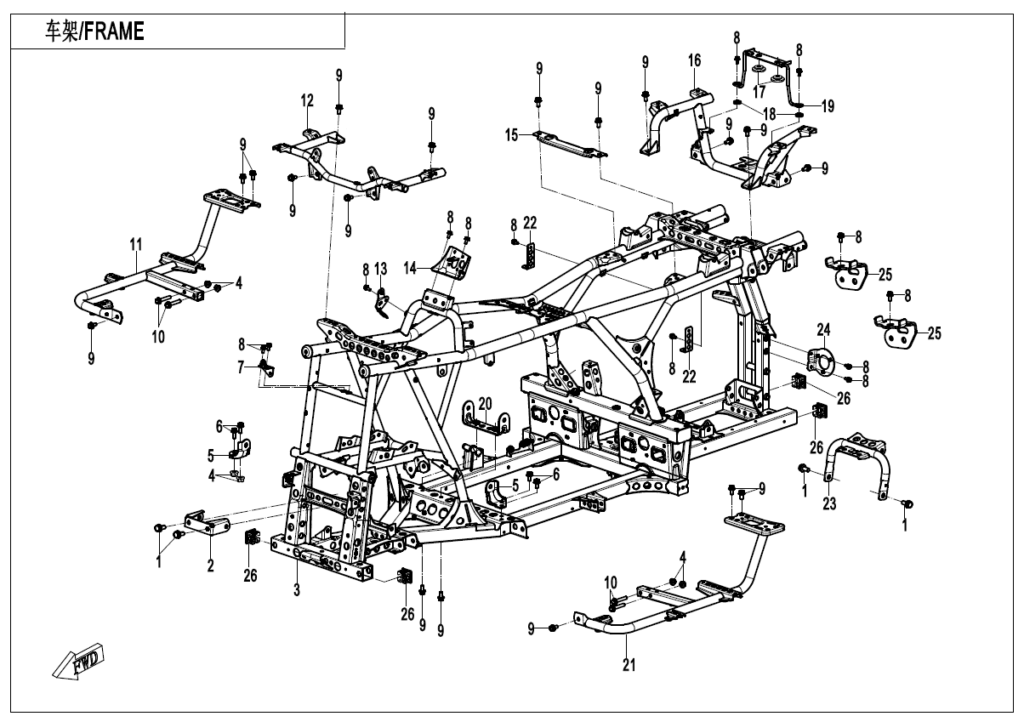

F03-V3 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 2 | UPPER ADAPTER BRACKET, FRONT GEAR CASE 5BWV-030050-5000 | Není skladem | 333,96 Kč | ||
| 3 | FRAME ASSY 9AYV-031000-8500 | Skladem | 31 849,62 Kč | ||
| 4 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 5 | ENGINE FRONT BRACKET 9AWV-030003-8000 | Skladem | 87,12 Kč | ||
| 6 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 7 | BRACKET, BRAKE VALVE 9AWV-030040-8000 | Skladem | 72,60 Kč | ||
| 8 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 9 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 10 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 11 | RH FOOT PEDAL ASSY 9AWV-030200-8001 | Skladem | 1 398,28 Kč | ||
| 12 | FRONT RACK BRACKET ASSY 9AWV-030400-8001 | Skladem | 932,18 Kč | ||
| 13 | AIR FILTER INTAKE PIPE BRACKET 9AWV-030090-8002 | Skladem | 62,15 Kč | ||
| 14 | AIR FILTER FRONT BRACKET 9AWV-030080-8000 | Skladem | 159,72 Kč | ||
| 15 | FRONT SEAT BRACKET 9AWV-030005-8000 | Skladem | 232,32 Kč | ||
| 16 | REAR RACK BRACKET ASSY 9AWV-030500-8002 | Skladem | 1 336,13 Kč | ||
| 17 | RUBBER WASHER, BATTERY 9010-030005 | Skladem | 15,54 Kč | ||
| 18 | WASHER 6.2x22x2 0180-065206-00001 | Skladem | 15,54 Kč | ||
| 19 | PRESS STRIP, BATTERY 9AWV-030060-8001 | Skladem | 217,80 Kč | ||
| 20 | ENGINE FRONT MIDDLE BRACKET 9AWV-030010-8000 | Skladem | 203,28 Kč | ||
| 21 | LH FOOT PEDAL ASSY 9AWV-030100-8001 | Skladem | 1 398,28 Kč | ||
| 22 | REAR HEAT INSULATION PLATE BRACKET 9AWA-030001-10000 | Skladem | 77,68 Kč | ||
| 23 | REAR GEAR CASE UPPER BRACKET 9AWV-030020-8000-0BP00 | Skladem | 512,70 Kč | ||
| 24 | TRAILER POWER BRACKET 9AWV-030030-8000-0BP00 | Skladem | 130,68 Kč | ||
| 25 | REFLECTOR BRACKET 9AWV-030002-8000-0BP00 | Skladem | 77,68 Kč | ||
| 26 | PLUG, TUBE 9AWA-044051 | Skladem | 101,56 Kč | ||
| 27 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
