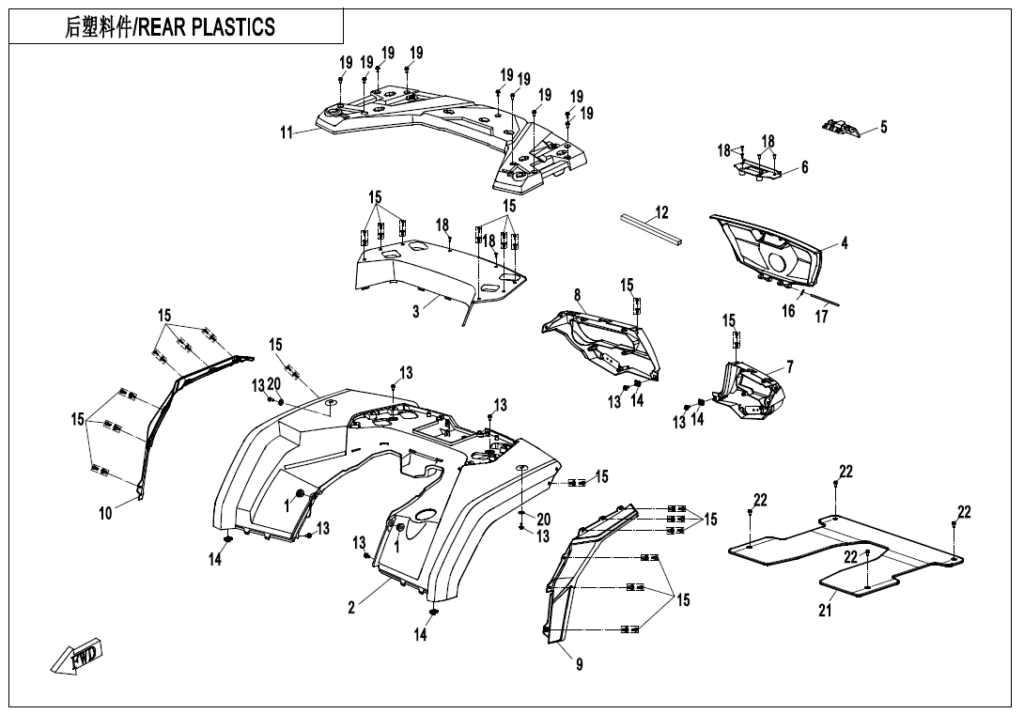

F04-4-V2 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 02 | REAR FENDER ATHENA BLUE 9AWA-043011-0EK00 | Skladem | 8 591,63 Kč | ||
| 02 | REAR FENDER LAVA ORANGE 9AWA-043011-0YD00 | Skladem | 8 203,22 Kč | ||
| 02 | REAR FENDER, TITANIUM GRAY 9AWA-043011-0B500 | Skladem | 8 203,22 Kč | ||
| 02 | REAR FENDER, TRUE TIMBER CAMO 9AWA-043011-0RE00 | Skladem | 10 378,32 Kč | ||
| 03 | REAR PANEL 9AWA-043012 | Skladem | 528,24 Kč | ||
| 04 | COVER, REAR TRUNK 9AWA-043013 | Skladem | 403,95 Kč | ||
| 05 | BUCKLE, REAR TRUNK 9AWA-043014 | Skladem | 77,68 Kč | ||
| 06 | FIXED SEAT, REAR TAIL BOX BUCKLE 9AWA-043015 | Skladem | 77,68 Kč | ||
| 07 | PANEL,LH TAILLIGHT 9AWA-043021 | Skladem | 279,66 Kč | ||
| 08 | PANEL,RH TAILLIGHT 9AWA-043022 | Skladem | 279,66 Kč | ||
| 09 | REAR FENDER, LH(EX) 9AWA-260013 | Skladem | 264,12 Kč | ||
| 10 | REAR FENDER, RH(EX) 9AWA-260014 | Skladem | 233,05 Kč | ||
| 11 | COVER, REAR RACK 9AWA-141004 | Skladem | 1 740,08 Kč | ||
| 12 | SPONGE, COMPARTMENT COVER 9AWA-043016 | Skladem | 170,90 Kč | ||
| 13 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 14 | NUT CLIP M6 8030-040800 | Skladem | 15,54 Kč | ||
| 14 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 15 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 16 | COTTER PIN 30903-0160810 | Skladem | |||
| 17 | PIN SHAFT φ4 9AWA-043017-10000 | Skladem | |||
| 18 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 19 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 20 | Podložka 30306-080112 | Skladem | 15,54 Kč | ||
| 21 | HEAT INSULATOR, REAR FENDER 9AW#-043016-2000 | Skladem | 372,87 Kč | ||
| 22 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
