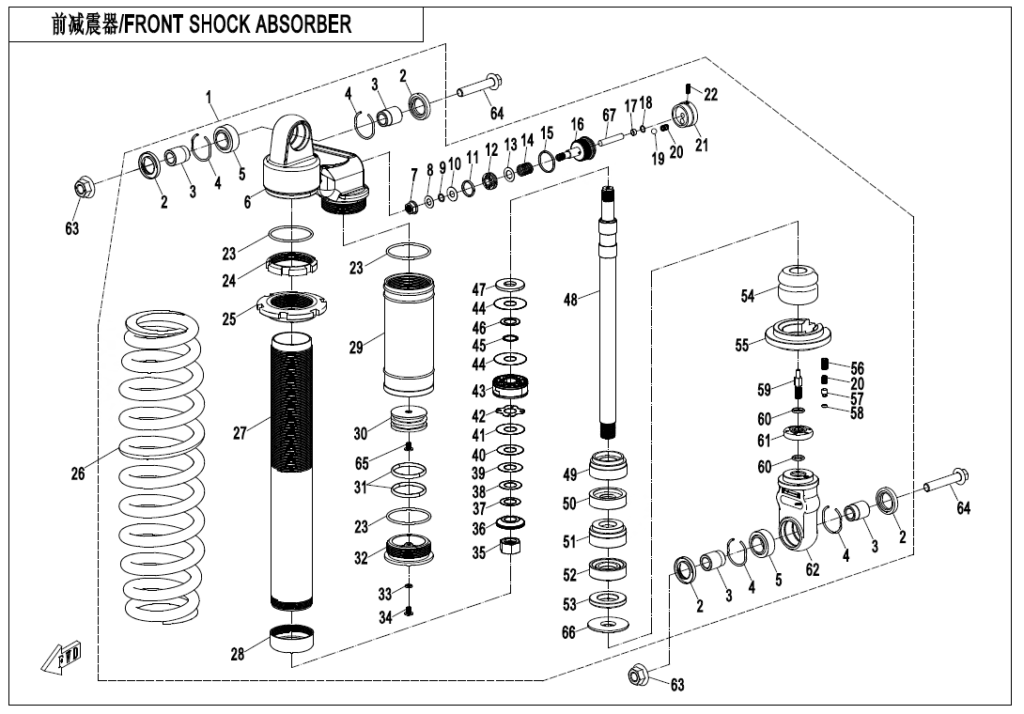

F05-2-C-V3 FRONT SHOCK ABSORBER(GAS,RUSSIA)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT SHOCK ABSORBER ASSY 9AWV-051600-2J00 | Skladem | |||
| 02 | ANTI-DUST SEAL 7020-051604-30000 | Skladem | 31,07 Kč | ||
| 03 | UPPER BUSHING, SHOCK ABSORBER 7020-051601-30000 | Skladem | 31,07 Kč | ||
| 04 | CIRCLIP 7020-051603-30000 | Skladem | 15,54 Kč | ||
| 05 | BEARING COMP. 7020-051610-30000 | Skladem | 203,11 Kč | ||
| 06 | FRONT SHOCK ABSORBER 9AWA-051620 | Skladem | |||
| 07 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 08 | VALVE 12 9AWA-051673 | Skladem | |||
| 09 | VALVE 11 9AWA-051672 | Skladem | |||
| 10 | VALVE 10 9AWA-051671 | Skladem | |||
| 11 | O-RING 8 9AWA-051669 | Skladem | |||
| 12 | ADJUSTING VALVE, AIR BAG 9AWA-051668 | Skladem | |||
| 13 | VALVE 9 9AWA-051667 | Skladem | |||
| 14 | RETURN SPRING, VALVE 9AWA-051666 | Skladem | |||
| 15 | O-RING 7 9AWA-051665 | Skladem | |||
| 16 | COMPRESSING VALVE 9AWA-051657 | Skladem | |||
| 17 | O-RING 3 9AWA-051656 | Skladem | |||
| 18 | CIRCLIP 9AWA-051655 | Skladem | |||
| 19 | STEEL BALL 9AWA-051654 | Skladem | |||
| 20 | STEEL RETURN SPRING 9AWA-051648 | Skladem | |||
| 21 | REBUNDING ADJUSTING LEVER 9AWA-051652 | Skladem | |||
| 22 | LOCKING SCREW 9AWA-051653 | Skladem | |||
| 23 | O-RING 5 9AWA-051661 | Skladem | |||
| 24 | ADJUSTING NUT, SPRING 9AWA-051602 | Skladem | |||
| 25 | ADJUSTING NUT, SPRING 9AWA-051601 | Skladem | |||
| 26 | SPRING, FRONT SHOCK ABSORBER 9AWA-051607 | Skladem | |||
| 27 | DAMPER, SHOCK ABSORBER 9AWA-051637 | Skladem | |||
| 28 | DAMPER CAP, SHOCK ABSORBER 9AWA-051636 | Skladem | |||
| 29 | HOUSING, AIR BAG 9AWA-051664 | Skladem | |||
| 30 | Píst 9AWA-051663 | Skladem | |||
| 31 | O-RING 6 9AWA-051662 | Skladem | |||
| 32 | LOWER COVER, AIR BAG 9AWA-051659 | Skladem | |||
| 33 | O-RING 4 9AWA-051658 | Skladem | |||
| 34 | LOCKING SCREW 9AWA-051675 | Skladem | |||
| 35 | Matice 30200-122110 | Skladem | |||
| 36 | RECOVER SEAR 9AWA-051634 | Skladem | |||
| 37 | VOLVE BLOCK 9 9AWA-051633 | Skladem | |||
| 38 | VOLVE BLOCK 8 9AWA-051632 | Skladem | |||
| 39 | VOLVE BLOCK 7 9AWA-051631 | Skladem | |||
| 40 | VOLVE BLOCK 6 9AWA-051629 | Skladem | |||
| 41 | VOLVE BLOCK 5 9AWA-051628 | Skladem | |||
| 42 | VOLVE BLOCK 4 9AWA-051627 | Skladem | |||
| 43 | Píst 9AWA-051626 | Skladem | |||
| 44 | VOLVE BLOCK 1 9AWA-051623 | Skladem | |||
| 45 | VOLVE BLOCK 3 9AWA-051625 | Skladem | |||
| 46 | VOLVE BLOCK 2 9AWA-051624 | Skladem | |||
| 47 | RECOVER WASHER 9AWA-051622 | Skladem | |||
| 48 | PISTON LEVER 9AWA-051621 | Skladem | |||
| 49 | GUIDER B 9AWA-051643 | Skladem | |||
| 50 | GUIDING SLEEVE 9AWA-051642 | Skladem | |||
| 51 | GUIDER A 9AWA-051641 | Skladem | 108,75 Kč | ||
| 52 | OIL SEAL 9AWA-051639 | Skladem | 233,05 Kč | ||
| 53 | SEAL WASHER 9AWA-051638 | Skladem | 46,61 Kč | ||
| 54 | DAMPER MAT, SHOCK ABSORBER 9AWA-051635 | Skladem | |||
| 55 | BLOCK, SPRING 9AWA-061608 | Skladem | |||
| 56 | Šroub 9AWA-051674 | Skladem | |||
| 57 | REBUNDING ADJUSTING SLIDER 9AWA-051647 | Skladem | |||
| 58 | O-RING 1 9AWA-051646 | Skladem | |||
| 59 | REBUNDING ADJUSTING SHAFT 9AWA-051649 | Skladem | |||
| 60 | O-RING 2 9AWA-051651 | Skladem | |||
| 61 | REBUNDING ADJUSTING RING 9AWA-051645 | Skladem | |||
| 62 | LOWER HANGER, AIR BAG 9AWA-051644 | Skladem | |||
| 63 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 64 | BOLT M10x1.25×65 30006-102065810 | Skladem | 46,61 Kč | ||
| 65 | BOLT 9AWV-051600-2J00-20 | Skladem | |||
| 66 | FRONT DUST COVER, ENGINE 9AWV-051600-2J00-21 | Skladem | |||
| 67 | COMPRESSION REGULATING VALVE 9AWV-051600-2J00-22 | Skladem | |||
