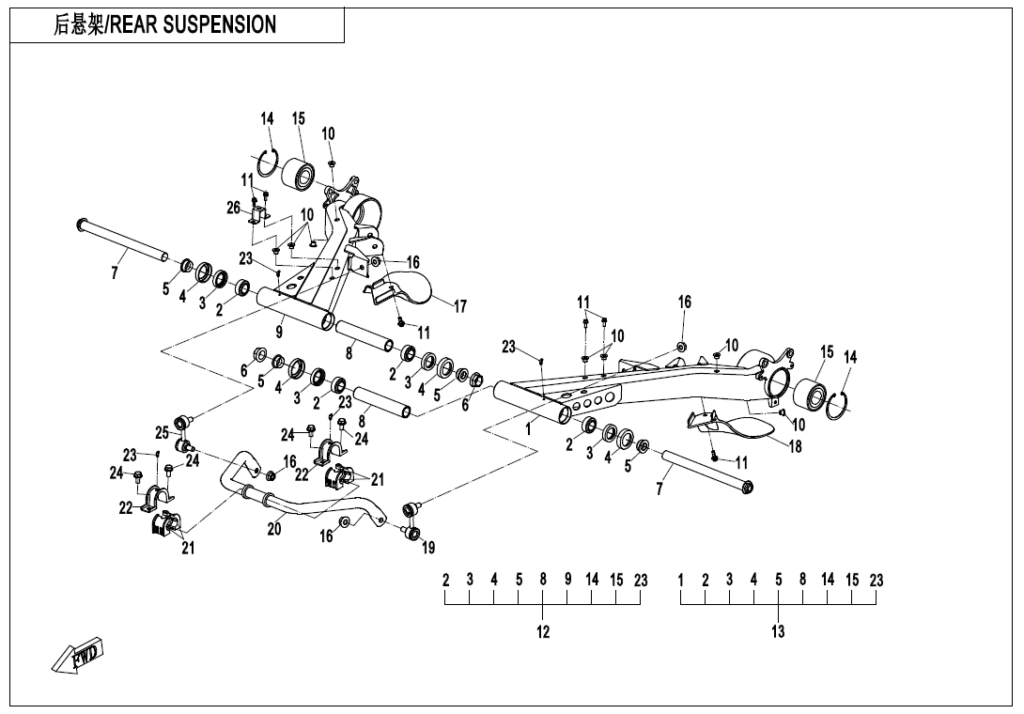

F06-1-B-V2 REAR SUSPENSION(CASTING)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR LH SWING ARM ATHENS BLUE 9AWA-060110-60000 | Skladem | 8 700,38 Kč | ||
| 01 | REAR LH SWING ARM BLACK 9AWA-060110-40000 | Skladem | 8 700,38 Kč | ||
| 01 | REAR LH SWING ARM CRYSTAL ORANGE 9AWA-060110-50000 | Skladem | 8 700,38 Kč | ||
| 01 | REAR LH SWING ARM GHOST GRAY 9AWA-060110-70000 | Skladem | 8 700,38 Kč | ||
| 02 | BEARING, REAR SWINGARM 9AWA-060109 | Skladem | 341,80 Kč | ||
| 03 | OIL SEAL 24×38×8 9AWA-060106 | Skladem | 62,15 Kč | ||
| 04 | DUST COVER 9AWA-060105-10000 | Skladem | 46,61 Kč | ||
| 05 | BUSHING, SWING ARM 9AWA-060102 | Skladem | 93,22 Kč | ||
| 06 | LOCK NUT, SWING ARM 9AWA-060108 | Skladem | 93,22 Kč | ||
| 07 | REAR SWING ARM SHAFT 9AWA-060103 | Skladem | 481,63 Kč | ||
| 08 | INNER LINER, REAR SWING ARM 9AWA-060101-10000 | Skladem | 130,57 Kč | ||
| 09 | REAR RH SWING ARM ATHENS BLUE 9AWA-060210-60000 | Skladem | 8 700,38 Kč | ||
| 09 | REAR RH SWING ARM BLACK 9AWA-060210-40000 | Skladem | 8 700,38 Kč | ||
| 09 | REAR RH SWING ARM CRYSTAL ORANGE 9AWA-060210-50000 | Skladem | 8 700,38 Kč | ||
| 09 | REAR RH SWING ARM GHOST GRAY 9AWA-060210-70000 | Skladem | 8 700,38 Kč | ||
| 10 | RIVET NUT 30228-061310 | Skladem | 15,54 Kč | ||
| 11 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 12 | REAR RH SWING ARM ASSY ATHENS BLUE 9AWA-060200-30000 | Skladem | |||
| 12 | REAR RH SWING ARM ASSY BLACK 9AWA-060200-10000 | Skladem | |||
| 12 | REAR RH SWING ARM ASSY GHOST GRAY 9AWA-060200-40000 | Skladem | |||
| 12 | REAR RH SWING ARM ASSY RYSTAL ORANGE 9AWA-060200-20000 | Skladem | |||
| 13 | REAR LH SWING ARM ASSY ATHENS BLUE 9AWA-060100-30000 | Skladem | |||
| 13 | REAR LH SWING ARM ASSY BLACK 9AWA-060100-10000 | Skladem | |||
| 13 | REAR LH SWING ARM ASSY CRYSTAL ORANGE 9AWA-060100-20000 | Skladem | |||
| 13 | REAR LH SWING ARM ASSY GHOST GRAY 9AWA-060100-40000 | Skladem | |||
| 14 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 15 | HUB BEARING 30411-03080 | Skladem | 1 475,96 Kč | ||
| 16 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 17 | REAR SUSPENSION PLATE, RH 9AWA-044044 | Skladem | 130,57 Kč | ||
| 18 | REAR SUSPENSION PLATE, LH 9AWA-044043 | Skladem | 130,57 Kč | ||
| 19 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 20 | REAR SWAY BAR ASSY 9AWA-060410-10000 | Skladem | 1 367,20 Kč | ||
| 21 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 22 | RETAINING COVER 9030-060002 | Skladem | 77,68 Kč | ||
| 23 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 24 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 25 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 26 | BRACKET, PARKING CABLE, REAR SWING ARM 9AWA-060107 | Skladem | 31,07 Kč | ||
