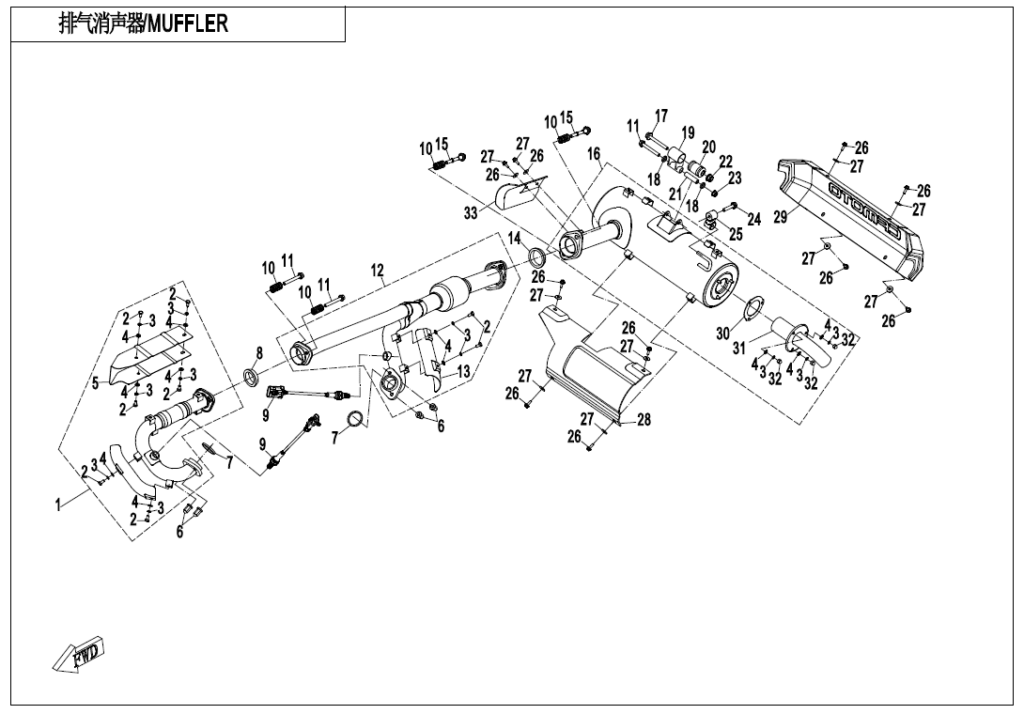

F02-1 MUFFLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | EXHAUST PIPE, FRONT CYLINDER 9AWA-021100-10000 | Skladem | 2 563,51 Kč | ||
| 02 | Šroub 30000-060010700 | Skladem | |||
| 03 | Podložka 30303-060900 | Skladem | 15,54 Kč | ||
| 04 | WASHER 6 30306-060800 | Skladem | 31,07 Kč | ||
| 05 | HEAT INSULATOR 9AWA-021101 | Skladem | 403,95 Kč | ||
| 06 | NUT M8, MUFFLER JOINT 8010-020001 | Skladem | 15,54 Kč | ||
| 07 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 08 | GRAPHITE RING, SMALL 9AWA-021003 | Skladem | |||
| 09 | OXYGEN SENSOR 0800-176000 | Skladem | 3 915,17 Kč | ||
| 10 | SPRING, MUFFLER 9AWA-021001 | Skladem | 46,61 Kč | ||
| 11 | Šroub 30006-080065810 | Skladem | 31,07 Kč | ||
| 12 | EXHAUST PIPE ASSY., TWO IN ONE 9AWA-021200-10000 | Skladem | 10 859,94 Kč | ||
| 13 | HEAT INSULATOR 9AWA-021201 | Skladem | 108,75 Kč | ||
| 14 | GRAPHITE RING, BIG 9AWA-021004 | Skladem | |||
| 15 | LIMIT BOLT M8×65 9AWA-021002 | Skladem | 139,83 Kč | ||
| 16 | MUFFLER ASSY. 9AWA-021300 | Skladem | 10 751,19 Kč | ||
| 17 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 18 | WIRE WASHER 9CR6-020003 | Skladem | 46,61 Kč | ||
| 19 | MOUNT ASSY., MUFFLER 9CR6-020020 | Skladem | 139,83 Kč | ||
| 20 | CUSHION SLEEVE 9010-050500 | Skladem | 116,06 Kč | ||
| 21 | LINER, MUFFLER 7020-020001 | Skladem | 62,15 Kč | ||
| 22 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 23 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 24 | Šroub 30006-080040810 | Skladem | 31,07 Kč | ||
| 25 | CONNECTING PARTS, ENGINE UPPER BRACKET 7020-000160 | Skladem | 290,16 Kč | ||
| 26 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 27 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 28 | INNER HEAT INSULATION, MUFFLER 9AWA-020001 | Skladem | 419,48 Kč | ||
| 29 | DECO COVER, MUFFLER 9AWA-020002 | Skladem | 1 475,96 Kč | ||
| 30 | SEAL GASKET, TAIL COVER 7030-021102 | Skladem | 145,08 Kč | ||
| 31 | SPAPK ARRESTOR 7030-021150-1000 | Skladem | 792,36 Kč | ||
| 32 | Matice 30206-060510 | Skladem | |||
| 33 | HEAT INSULATOR 9AWA-020003 | Skladem | 232,13 Kč | ||
