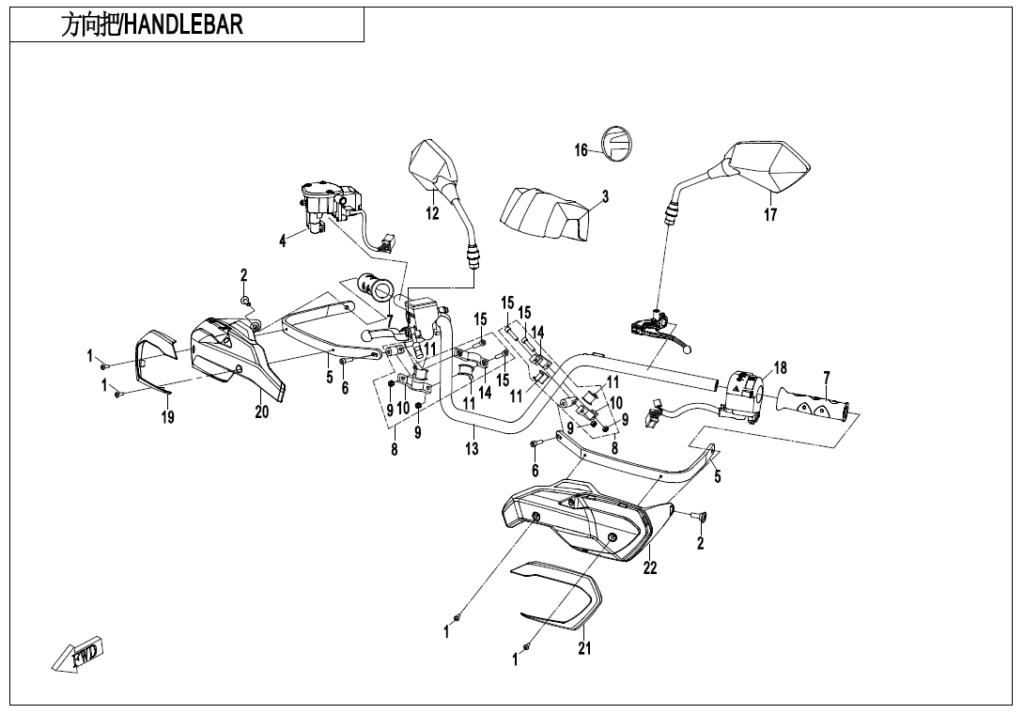

F10-1-B HANDLEBAR-TIMBER CAMO
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SCREW M5×14 A000-040202 | Skladem | 15,54 Kč | ||
| 02 | Šroub (vrut) A000-080001 | Skladem | 43,52 Kč | ||
| 03 | HAND GUARD 9AWA-100002 | Skladem | 130,57 Kč | ||
| 04 | SWITCH ASSY., HANDLEBAR(RH) 9AWA-160700 | Skladem | 1 507,03 Kč | ||
| 05 | HANDGUARD LEVER 9AWA-101203 | Skladem | 761,28 Kč | ||
| 06 | SCREW M6×20 30102-060020700 | Skladem | 62,15 Kč | ||
| 07 | HAND GRIP, LH 8060-100001 | Skladem | 246,63 Kč | ||
| 08 | BRACKET ASSY 9AWA-101230 | Skladem | 403,95 Kč | ||
| 09 | NUT M6 30224-060800 | Skladem | 77,68 Kč | ||
| 10 | PRESS COVER ，BRACKET 9CR6-101204 | Skladem | 145,08 Kč | ||
| 11 | PLASTIC BUSHING 9CR6-101213 | Skladem | 62,15 Kč | ||
| 12 | REAR VIEW MIRROR,RH 7020-200300 | Skladem | 264,12 Kč | ||
| 13 | HANDLEBAR PIPE 9AWA-101100 | Skladem | 947,72 Kč | ||
| 14 | SEAT, BRACKET 9CR6-101202 | Skladem | 310,73 Kč | ||
| 15 | SCREW M6x25 30102-060025700 | Skladem | |||
| 16 | CFMOTO LOGO 9CR6-190001 | Skladem | 155,36 Kč | ||
| 17 | REAR VIEW MIRROR,LH 7020-200200 | Skladem | 264,12 Kč | ||
| 18 | HANDLEBAR SWITCH, LH 9AW2-160600 | Skladem | 1 165,23 Kč | ||
| 19 | DECO PLATE, HAND GUARD(RH), TRUE TIMBER CAMO 9AWA-101302-0RE00 | Skladem | 507,78 Kč | ||
| 20 | HAND GUARD, RH 9AWA-101301 | Skladem | 186,44 Kč | ||
| 21 | DECO PLATE, HAND GUARD(LH), TRUE TIMBER CAMO 9AWA-101202-0RE00 | Skladem | 507,78 Kč | ||
| 22 | HAND GUARD, LH 9AWA-101201 | Skladem | 186,44 Kč | ||
