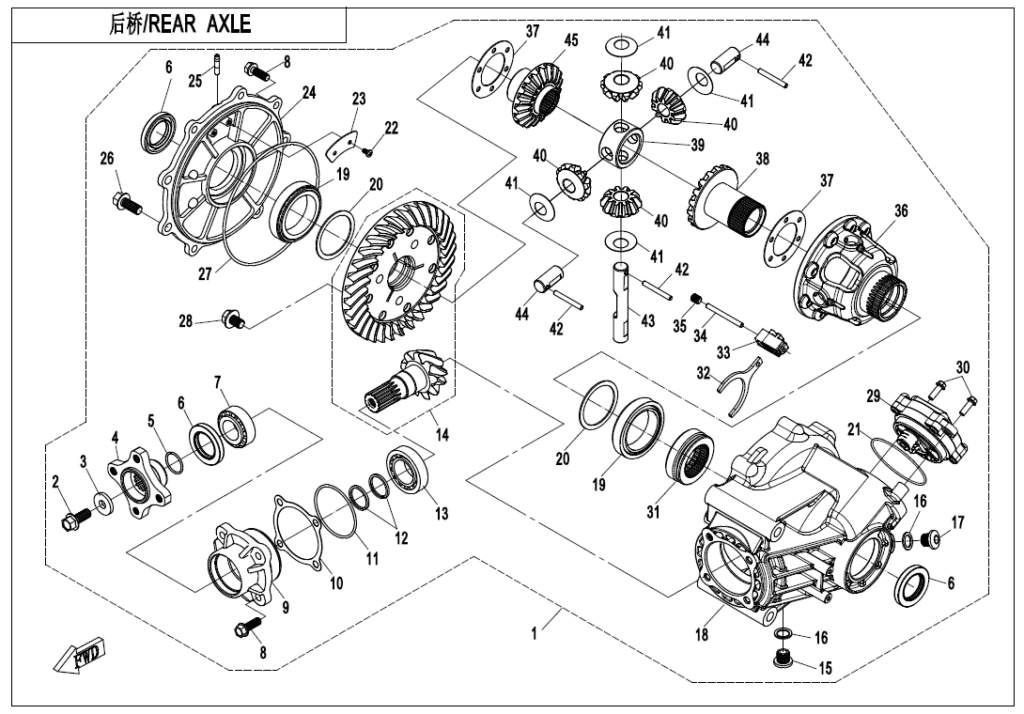

F33-B-V2 REAR AXLE(ON CAMMAND)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR GEAR CASE ASSY Q870-330000-00001 | Skladem | 32 067,13 Kč | ||
| 02 | Šroub Q860-331002 | Skladem | 31,07 Kč | ||
| 03 | WHASHER 0180-331008-00001 | Skladem | 46,61 Kč | ||
| 04 | COUPLER Q850-331002 | Skladem | 699,14 Kč | ||
| 05 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 06 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 07 | Ložisko 30409-02500 | Skladem | 543,77 Kč | ||
| 08 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 09 | BEARING SEAT Q830-311002-00001 | Skladem | 636,99 Kč | ||
| 10 | ADJUSTING WASHER Q830-310023-00100 | Skladem | 46,61 Kč | ||
| 10 | ADJUSTING WASHER Q830-310023-00200 | Skladem | 46,61 Kč | ||
| 11 | O-RING 55*2.5 Q830-310006-10000 | Skladem | 77,68 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01401 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00101 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00201 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00301 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00401 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00501 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00601 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00701 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00801 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00901 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01001 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01101 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01201 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01301 | Skladem | 31,07 Kč | ||
| 13 | Ložisko 30409-03000 | Skladem | 481,63 Kč | ||
| 14 | BEVEL GEAR ASSY., REAR GEAR CASE Q850-3300A0-00001 | Skladem | 5 049,33 Kč | ||
| 15 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 16 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 17 | Šroub 0180-021008-00001 | Skladem | 58,03 Kč | ||
| 18 | REAR GEAR CASE Q870-330001 | Skladem | |||
| 19 | Ložisko 30409-05000 | Skladem | 1 538,10 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00100 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00200 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00300 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00400 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00500 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00600 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00700 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00800 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00900 | Skladem | 46,61 Kč | ||
| 21 | O-RING 67.5*2 Q830-310012-10000 | Skladem | 62,15 Kč | ||
| 22 | Šroub (vrut) 30105-040008410 | Skladem | 15,54 Kč | ||
| 23 | OIL GUARD Q830-310022 | Skladem | 31,07 Kč | ||
| 24 | COVER, REAR GEAR CASE CASE Q850-330002 | Skladem | 932,18 Kč | ||
| 25 | JOINT , BREATHER HOSE 0180-311004-0020 | Skladem | 31,07 Kč | ||
| 26 | BOLT M10×1.25×25 0180-330004-0010 | Skladem | 31,07 Kč | ||
| 27 | O-SEAL RING 151×3 0180-334002 | Skladem | 43,52 Kč | ||
| 28 | BOLT M10×1.25×22 0181-313100-0010 | Skladem | 31,07 Kč | ||
| 29 | FRONT GEAR CASE MOTOR ASSY Q890-314000-10000 | Skladem | 3 697,66 Kč | ||
| 30 | BOLT M6×18 0010-023008 | Skladem | 15,54 Kč | ||
| 31 | SPLINE BUSHING Q870-330003 | Skladem | 466,09 Kč | ||
| 32 | FORK Q870-330002 | Skladem | 174,24 Kč | ||
| 33 | BLOCK ASSY. Q890-310010 | Skladem | 668,07 Kč | ||
| 34 | PIN SHAFT Q870-330004 | Skladem | 31,07 Kč | ||
| 35 | Šroub (vrut) 30130-080010810 | Skladem | 15,54 Kč | ||
| 36 | DIFFERENTIAL HOUSING Q870-333101 | Skladem | 2 035,27 Kč | ||
| 37 | WASHER, CV SHAFT GEAR Q870-333108 | Skladem | 46,61 Kč | ||
| 38 | LH CV SHAFT GEAR Q870-333103 | Skladem | 2 004,20 Kč | ||
| 39 | CROSS BUSHING Q870-333102 | Skladem | 295,19 Kč | ||
| 40 | PLANET GEAR Q870-333105 | Skladem | 295,19 Kč | ||
| 41 | SPHERICAL WASHER Q870-333109 | Skladem | 31,07 Kč | ||
| 42 | PIN 30906-0504000 | Skladem | 15,54 Kč | ||
| 43 | PLANET GEAR SHAFT Q870-333106 | Skladem | 357,34 Kč | ||
| 44 | SHORT PLANET GEAR SHAFT Q870-333107 | Skladem | 188,76 Kč | ||
| 45 | RH CV SHAFT GEAR Q870-333104 | Skladem | 1 149,69 Kč | ||
