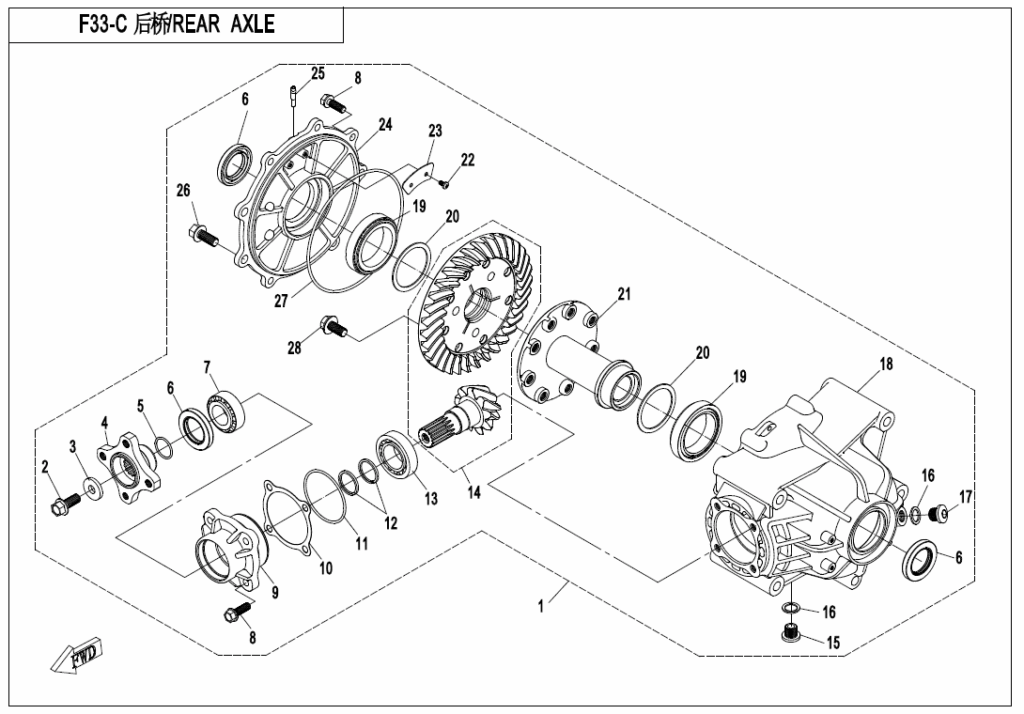

F33-C-V3 REAR AXLE(NO DIFFERENTIAL)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR AXLE Q850-330000-20002 | Skladem | |||
| 02 | Šroub Q860-331002 | Skladem | 31,07 Kč | ||
| 03 | WHASHER 0180-331008-00001 | Skladem | 46,61 Kč | ||
| 04 | COUPLER Q850-331002 | Skladem | 699,14 Kč | ||
| 05 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 06 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 07 | Ložisko 30409-02500 | Skladem | 543,77 Kč | ||
| 08 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 09 | BEARING SEAT Q830-311002-00001 | Skladem | 636,99 Kč | ||
| 10 | ADJUSTING WASHER Q830-310023-00200 | Skladem | 46,61 Kč | ||
| 10 | ADJUSTING WASHER Q830-310023-00100 | Skladem | 46,61 Kč | ||
| 11 | O-RING 55*2.5 Q830-310006-10000 | Skladem | 77,68 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00101 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00201 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00301 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00401 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00501 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00601 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00701 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00801 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00901 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01001 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01101 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01201 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01301 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01401 | Skladem | 31,07 Kč | ||
| 13 | Ložisko 30409-03000 | Skladem | 481,63 Kč | ||
| 14 | BEVEL GEAR, REAR GEAR CASE Q850-3300A0-00002 | Skladem | 5 049,33 Kč | ||
| 15 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 16 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 17 | Šroub 0180-021008-00001 | Skladem | 58,03 Kč | ||
| 18 | CASE, REAR GEAR CASE Q850-330001-00001 | Skladem | 4 039,46 Kč | ||
| 19 | Ložisko 30409-05000 | Skladem | 1 538,10 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00900 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00800 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00700 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00600 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00500 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00400 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00300 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00200 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00100 | Skladem | 31,07 Kč | ||
| 21 | MOUNTING BASE Q850-330003-00001 | Skladem | 2 625,65 Kč | ||
| 22 | Šroub (vrut) 30105-040008410 | Skladem | 15,54 Kč | ||
| 23 | OIL GUARD Q830-310022 | Skladem | 31,07 Kč | ||
| 24 | REAR GEAR CASE COVER Q850-330002-00002 | Skladem | 1 242,91 Kč | ||
| 25 | JOINT , BREATHER HOSE 0180-311004-0020 | Skladem | 31,07 Kč | ||
| 26 | BOLT M10×1.25×25 0180-330004-0010 | Skladem | 31,07 Kč | ||
| 27 | O-SEAL RING 151×3 0180-334002 | Skladem | 43,52 Kč | ||
| 28 | BOLT M10×1.25×22 0181-313100-0010 | Skladem | 31,07 Kč | ||
