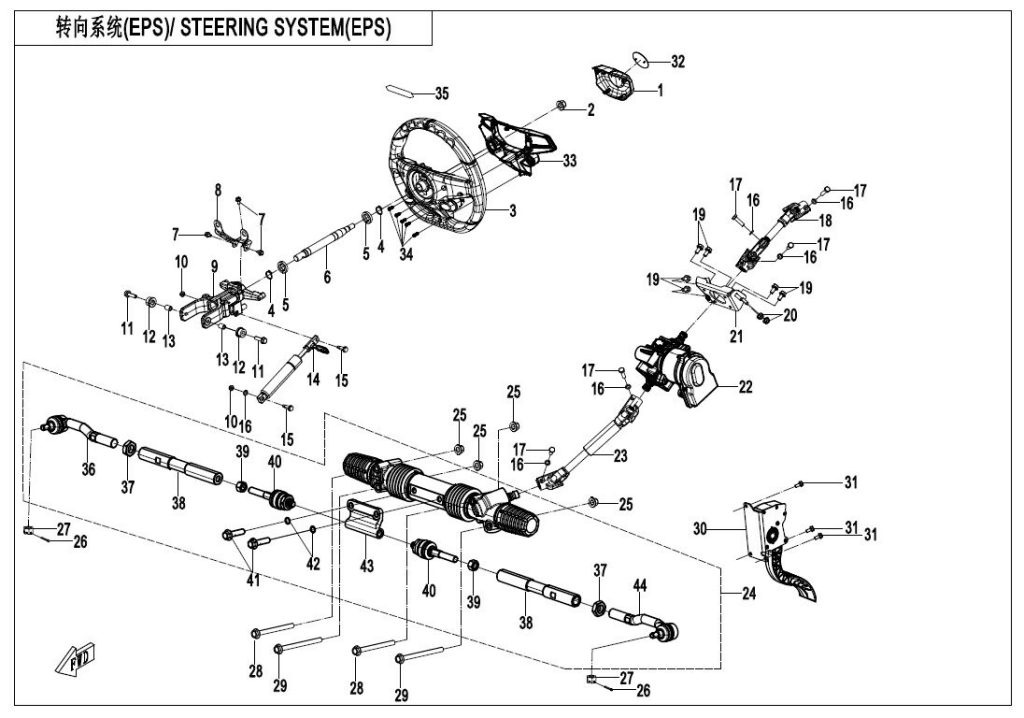

F10 STEERING SYSTEM(EPS)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | STEERING WHEEL PRESS COVER 5GYV-101001-1001 | Skladem | |||
| 2 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 3 | STEERING WHEEL BODY 5GYV-101110-1001 | Skladem | |||
| 4 | CIRCLIPS FOR SHAFT20 30801-02005 | Skladem | 15,54 Kč | ||
| 5 | Ložisko 30400-02005 | Skladem | 77,68 Kč | ||
| 6 | STEERING COLUMN 5GYV-102201-1000 | Skladem | |||
| 7 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 8 | DASHBOARD BRACKET 5GYV-102301-1001-0BP00 | Skladem | |||
| 9 | STEERING WHEEL BRACKET 5GYV-102204-1001 | Skladem | |||
| 10 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 11 | BOLT M8x28 30006-080028810 | Skladem | 15,54 Kč | ||
| 12 | NYLON BUSHING, STEERING COLUMN 9060-100009 | Skladem | 174,09 Kč | ||
| 13 | SLEEVE, MOUNT PLATE 9060-100008-00001 | Skladem | 31,07 Kč | ||
| 14 | GAS SPRING ASSY 5BWV-102000-5001 | Skladem | 823,43 Kč | ||
| 15 | AIR SPRING UPPER FIXED BOLT 5HYV-103001-6000 | Skladem | 31,07 Kč | ||
| 16 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
| 17 | HEX BOLT 30004-080030110 | Skladem | |||
| 18 | STEERING SHAFT ASSEMBLY 1 5GYV-102110-1000 | Skladem | |||
| 19 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 20 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 21 | EPS MOUNTING BRACKET ASSY 5HYV-103100-6001 | Skladem | 295,19 Kč | ||
| 22 | EPS BOOSTER UNIT ASSY 5GYV-108000-1000 | Skladem | |||
| 23 | STEERING SHAFT ASSEMBLY 2 5GYV-102130-1002 | Skladem | |||
| 24 | STEERING WITH TIE ROD ASSY 5DYV-104000-1002 | Skladem | |||
| 25 | NUT 30204-122110 | Skladem | 31,07 Kč | ||
| 26 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 27 | HEX SLOTTED NUT 30207-143810 | Není skladem | |||
| 28 | BOLT 30024-122135110 | Skladem | |||
| 29 | BOLT 30024-122155110 | Skladem | |||
| 30 | THROTTLE PEDAL, ELECTRIC 5BYV-152800-1000-M1 | Skladem | 4 319,12 Kč | ||
| 31 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 32 | CFMOTO STICKER 5ASV-190019-6000 | Skladem | 295,19 Kč | ||
| 33 | STEERING WHEEL DECO GUARD 5GYV-101101-1000-0DT00 | Skladem | |||
| 34 | STEERING WHEEL DECO GUARD SCREW 5GYV-101102-1000 | Skladem | |||
| 35 | STEERING WHEEL SMALL LOGO 5DYV-190002-1000 | Skladem | |||
| 36 | RH OUTER TIE-ROD SUB ASSY 5GYV-104000-1001-48 | Skladem | |||
| 37 | THIN HEX NUT 5GYV-104000-1000-50 | Skladem | |||
| 38 | CONNECTING PIPE 5DYV-104000-1001-20 | Skladem | |||
| 39 | HEX NUT 5GYV-104000-1000-51 | Skladem | |||
| 40 | STEERING ROD SUB ASSY 5GYV-104000-1000-46 | Skladem | |||
| 41 | HEX FLANGE BOLT 5DYV-104000-1000-23 | Skladem | |||
| 42 | O-RING 5DYV-104000-1000-25 | Skladem | |||
| 43 | STEERING ARM 5DYV-104000-1000-26 | Skladem | |||
| 44 | LH OUTER TIE-ROD SUB ASSY 5GYV-104000-1001-47 | Skladem | |||
