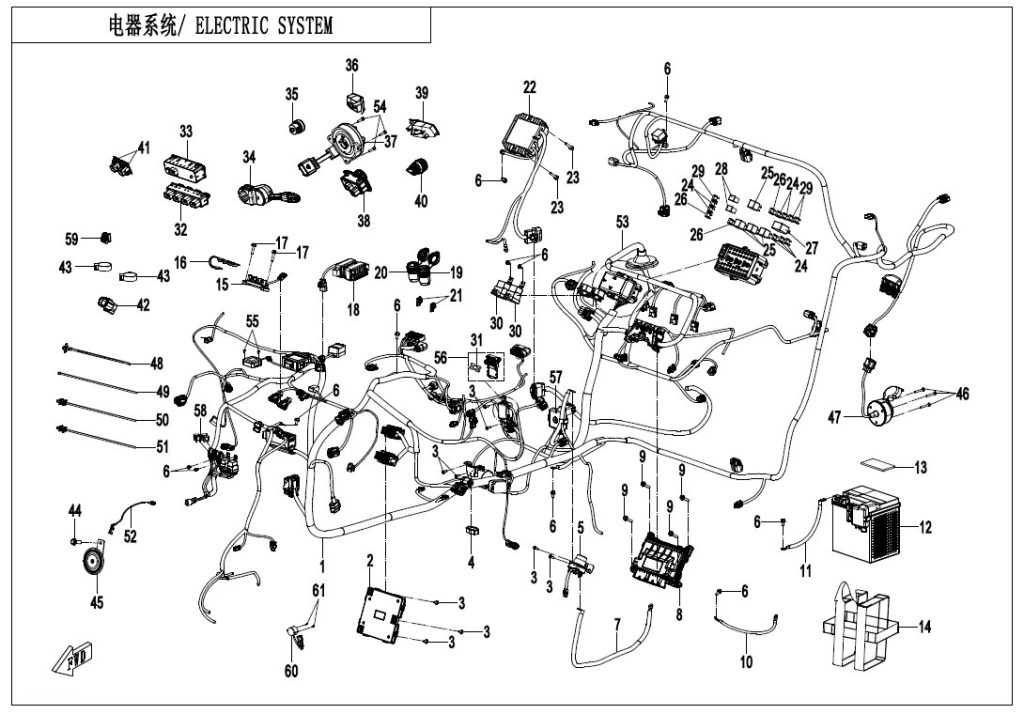

F15-1 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MAIN CABLE 5CYV-150100-3301 | Skladem | |||
| 2 | VEHICLE CONTROLLER 5GYV-151900-1000 | Skladem | |||
| 3 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 4 | DIAGNOSIS CONNECTOR COVER CFCV-11H016-2000-M1 | Skladem | 15,54 Kč | ||
| 5 | STARTER RELAY 5BWV-150510-5300 | Skladem | 823,43 Kč | ||
| 5 | STARTER RELAY 5BWV-150510-5301 | Skladem | |||
| 6 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 7 | STARTER CABLE 5GYV-150320-1000 | Skladem | |||
| 8 | ECM ASSY 5CYV-001000-1200 | Skladem | |||
| 9 | CROSS RECESSED PAN HEAD TAPPING SCREW 30110-630320010 | Skladem | |||
| 10 | ENGINE NEGATIVE CABLE 5GYV-150430-1000 | Skladem | |||
| 11 | BATTERY NEGATIVE CABLE 5GYV-150420-1001 | Skladem | |||
| 12 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 13 | FOAM (LH &RH), BATTERY 5270-150001 | Skladem | 15,54 Kč | ||
| 14 | BELT,BETTERY 9060-152100 | Skladem | 124,29 Kč | ||
| 15 | EXTENSION POWER TERMINAL 5BWV-156905-5000-M1 | Skladem | 403,95 Kč | ||
| 16 | EXTENSION POWER TERMINAL CAP 5BWV-156906-5000-M1 | Skladem | 31,07 Kč | ||
| 17 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 18 | T-BOX SN1V-691100-1200-14 | Skladem | |||
| 18 | T-BOX SN1V-691100-1500-14 | Skladem | |||
| 19 | POWER OUTLET 6WWV-150500-5000-10 | Skladem | 574,85 Kč | ||
| 20 | USB OUTPUT SEAT ASSY 9AWV-151200-8000 | Skladem | 1 569,18 Kč | ||
| 21 | CLASP 6GU#-150001-6000-M1 | Skladem | 29,04 Kč | ||
| 22 | REGULATOR 5GYV-151000-1000 | Skladem | |||
| 23 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 24 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 25 | AUXILIARY RELAY CFCV-150525-2000-M1 | Skladem | 145,20 Kč | ||
| 26 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 27 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 28 | FUSE 60A CFCV-150005-4504 | Skladem | |||
| 29 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 30 | 40A RELAY CFCV-150522-2000-M1 | Skladem | |||
| 31 | ANF FUSE 80A CFCV-156215-4500 | Skladem | 31,07 Kč | ||
| 32 | FUNCTION SWITCH 5FYV-169500-1202 | Skladem | |||
| 33 | 2WD/4WD SWITCH 5FYV-169080-1003 | Skladem | |||
| 34 | SWITCHGROUP 5GYV-169480-1200 | Skladem | 1 522,57 Kč | ||
| 35 | ONE-CLICK START SWITCH 5FYV-169150-1001 | Skladem | |||
| 36 | ELECTRICAL DAMPING SWITCH 5FYV-169550-1002 | Skladem | |||
| 37 | CLOCK SPRING 5FYV-169560-1004 | Skladem | |||
| 38 | DIMMER SWITCH 5FYV-169030-1001 | Skladem | |||
| 39 | VOLUME SWITCH 5FYV-169590-1002 | Skladem | |||
| 40 | MODE SWITCH 5FYV-169090-1001 | Skladem | |||
| 41 | SWITCH HOLE COVER 5ASV-152200-6001 | Skladem | 46,61 Kč | ||
| 42 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 43 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 44 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 45 | HORN 9DQV-151400-3000 | Skladem | 290,40 Kč | ||
| 46 | SCREW M5x35 30105-050035410 | Skladem | 15,54 Kč | ||
| 47 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 48 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 49 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 50 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 51 | TIE BAND 5ASV-150009-6000-M1 | Skladem | 15,54 Kč | ||
| 52 | HORN ADAPTER CABLE 5HYV-150191-2F00 | Skladem | 77,68 Kč | ||
| 53 | EFI AUXILIARY CABLE 5CYV-150200-3002 | Skladem | |||
| 53 | EFI AUXILIARY CABLE 5CYV-150200-3003 | Skladem | |||
| 54 | SCREW M5x16 30102-050016810 | Skladem | 15,54 Kč | ||
| 55 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 56 | 80A FUSE BOX CFCV-156444-2000-M1 | Skladem | 201,97 Kč | ||
| 57 | JUNCTION BOX COVER 5BWV-156902-5100-M1 | Skladem | 217,51 Kč | ||
| 58 | 30A FUSE 5BY4-151301 | Skladem | 31,07 Kč | ||
| 59 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 60 | ALARM 9AWV-156800-2800-10 | Skladem | 823,43 Kč | ||
| 61 | Šroub (vrut) 30110-290095010 | Skladem | 15,54 Kč | ||
