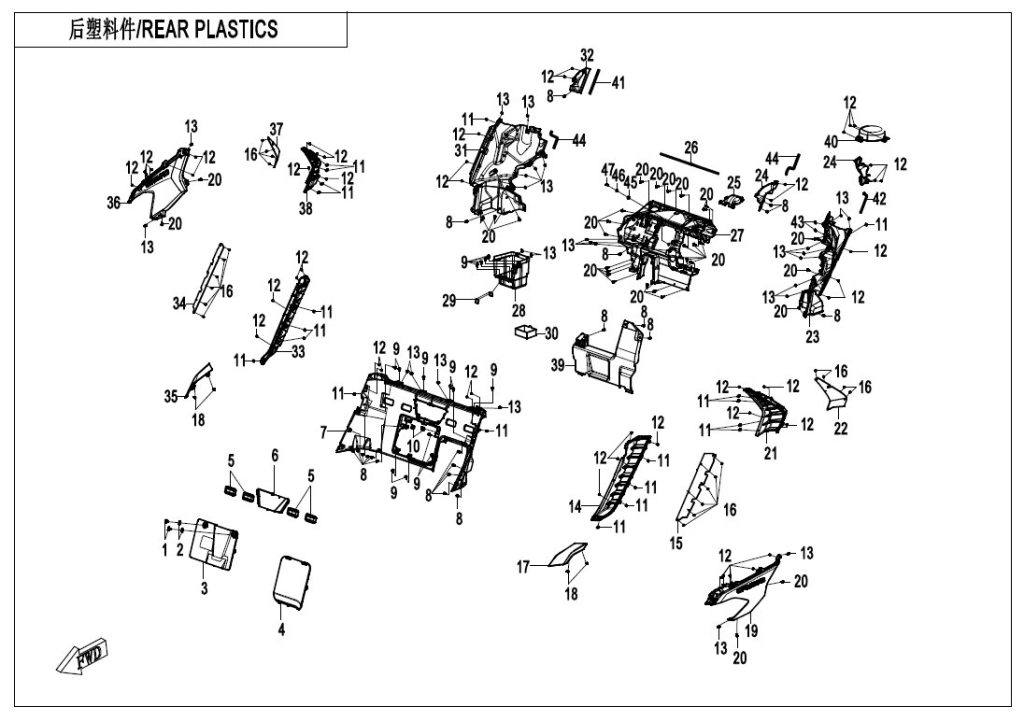

F04-4 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | QUICK RELEASE BOLT 5BWV-040002-5000 | Není skladem | 124,29 Kč | ||
| 2 | RETAINER 5BWV-040004-5000 | Není skladem | 31,07 Kč | ||
| 3 | FENDER FRONT SERVICE COVER 5GYV-042052-1000 | Skladem | 388,41 Kč | ||
| 4 | AIR FILTER SERVICE COVER 5GYV-042058-1000 | Skladem | 326,26 Kč | ||
| 5 | SEAT BELT PLUG 5GYV-042066-1000 | Skladem | 31,07 Kč | ||
| 6 | FENDER UPPER SERVICE COVER 5GYV-042082-1000 | Skladem | 139,83 Kč | ||
| 7 | SEAT REAR FENDER 5GYV-042051-1001 | Skladem | 1 444,89 Kč | ||
| 8 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 9 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 10 | QUICK RELEASE BUCKLE 5BWV-040003-5000 | Není skladem | 15,54 Kč | ||
| 11 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 12 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 13 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 14 | FRONT LH FILTER PANEL 5GYV-042031-1001 | Skladem | 326,26 Kč | ||
| 15 | LOWER LH AIR INTAKE GRILLE 5GYV-042035-1000-0BP00 | Skladem | 668,07 Kč | ||
| 16 | INNER HEX SLEF-TAPPING SCREW ST4.8×13 5BWV-040015-5000 | Skladem | 15,54 Kč | ||
| 17 | LH THRESHOLD DECO PLATE 5GYV-042027-1001-0BM00 | Skladem | 357,34 Kč | ||
| 18 | CLASP 8080-000001 | Skladem | 15,54 Kč | ||
| 19 | REAR LH PANEL 5GYV-042025-1000 | Skladem | 466,09 Kč | ||
| 20 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 21 | UPPER LH FILTER PANEL 5GYV-042033-1002 | Skladem | 248,58 Kč | ||
| 22 | UPPER LH AIR INTAKE GRILLE 5GYV-042037-1000-0BP00 | Skladem | 512,70 Kč | ||
| 23 | DEFLECTOR, LH 5DYV-042053-3000 | Skladem | 932,18 Kč | ||
| 24 | RADIATOR LH GUARD 5DYV-042084-3000 | Skladem | 77,68 Kč | ||
| 26 | SEAL FOAM(690_10-10) 5GYV-045102-1000 | Skladem | 512,70 Kč | ||
| 27 | ENGINE INSULATOR PLATE 5DYV-042055-3000 | Skladem | 1 429,35 Kč | ||
| 28 | BATTERY BOX 5GYV-043053-1001 | Skladem | 419,48 Kč | ||
| 29 | TIE BAND,BATTERY 7030-040910 | Skladem | 174,09 Kč | ||
| 30 | BATTERY PROTECTIVE BOOT 5DYV-043055-3000 | Skladem | 201,97 Kč | ||
| 31 | RH AIR INLET PORT DEFLECTOR 5DYV-042054-3000 | Skladem | 932,18 Kč | ||
| 32 | RADIATOR RH GUARD 5DYV-042085-3000 | Skladem | 139,83 Kč | ||
| 33 | FRONT RH FILTER PANEL 5GYV-042032-1001 | Skladem | 326,26 Kč | ||
| 34 | LOWER RH AIR INTAKE GRILLE 5GYV-042036-1000-0BP00 | Skladem | 668,07 Kč | ||
| 35 | RH THRESHOLD DECO PLATE 5GYV-042028-1001-0BM00 | Skladem | 357,34 Kč | ||
| 36 | REAR RH PANEL 5GYV-042026-1000 | Skladem | 466,09 Kč | ||
| 37 | UPPER RH AIR INTAKE GRILLE 5GYV-042038-1000-0BP00 | Skladem | 512,70 Kč | ||
| 38 | UPPER RH FILTER PANEL 5GYV-042034-1002 | Skladem | 248,58 Kč | ||
| 39 | ELECTRICALS GUARD 5GYV-042073-1001 | Skladem | 186,44 Kč | ||
| 40 | AIR INLET PORT GUARD 5DYV-042074-3000 | Skladem | 93,22 Kč | ||
| 41 | SEAL FOAM 200×10×10 5DYV-045104-3000 | Skladem | 31,07 Kč | ||
| 42 | SEALING SPONGE 5DYV-045107-3001 | Skladem | 15,54 Kč | ||
| 43 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 44 | SEALING SPONGE 5DYV-045106-3001 | Skladem | 15,54 Kč | ||
| 45 | REAR RUBBER BUFFER，FUEL TANK 9010-120007 | Skladem | 15,54 Kč | ||
| 46 | RUBBER BUSH，FUEL TANK 9010-120310 | Skladem | 29,02 Kč | ||
| 47 | M6×30 BOLT 5BWV-040018-5000 | Skladem | 31,07 Kč | ||
