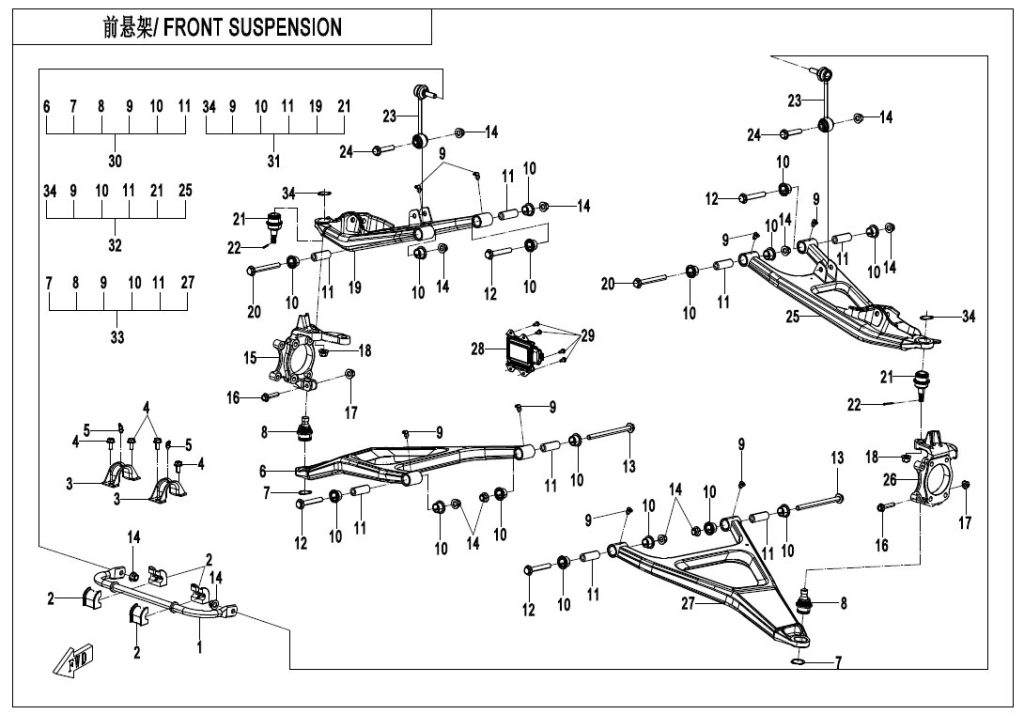

F05-1 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT SWAY BAR 5DYV-050610-1002 | Skladem | 1 258,45 Kč | ||
| 2 | SWAY BAR SUPPORTER 5DYV-056700-1000 | Skladem | 108,75 Kč | ||
| 3 | SWAY BAR PRESS COVER 5GYV-050620-1001 | Skladem | 139,83 Kč | ||
| 4 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 5 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 6 | FRONT RH LOWER SWING ARM 5DYV-050410-1000-0BP00 | Skladem | 8 156,61 Kč | ||
| 7 | CIRCLIPS FOR SHAFT 5GYV-050100-1000-21 | Skladem | 15,54 Kč | ||
| 8 | LOWER PIN ASSY 5GYV-056200-1000 | Skladem | 1 040,94 Kč | ||
| 9 | GREASE NOZZLE 3121400 | Skladem | 31,07 Kč | ||
| 10 | DAMPING SLEEVE, FRONT UPPER SWING ARM 5GYV-058100-1000 | Skladem | 139,83 Kč | ||
| 11 | FRONT UPPER SWING ARM MIDDLE SPACER 5GYV-058200-1000 | Skladem | 124,29 Kč | ||
| 12 | BOLT 30024-122080110 | Skladem | 62,15 Kč | ||
| 13 | BOLT 30024-122160110 | Skladem | 124,29 Kč | ||
| 14 | NUT 30204-122110 | Skladem | 31,07 Kč | ||
| 15 | STEERING KNUCKLE, RH 5DYV-050801-1000 | Skladem | 3 728,74 Kč | ||
| 16 | BOLT M10x1.25×45 30006-102045810 | Skladem | 46,61 Kč | ||
| 17 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 18 | NUT 30236-122110 | Skladem | 31,07 Kč | ||
| 19 | FRONT RH UPPER SWING ARM 5DYV-050310-1001-0BP00 | Skladem | 6 898,16 Kč | ||
| 20 | BOLT 30024-122105110 | Skladem | 93,22 Kč | ||
| 21 | MAIN PIN ASSY 5GYV-056100-1000 | Skladem | 1 040,94 Kč | ||
| 22 | COTTER PIN 30903-0252610 | Skladem | 15,54 Kč | ||
| 23 | FRONT SWAY BAR BALL PIN ASSY 5LYV-056300-2001 | Skladem | 1 507,03 Kč | ||
| 24 | BOLT M10x1.25×60 30001-122060160 | Skladem | 101,56 Kč | ||
| 25 | FRONT UPPER LH SWING ARM ASSY 5DYV-050110-1001-0BP00 | Skladem | 6 898,16 Kč | ||
| 26 | STEERING KNUCKLE, LH 5DYV-050701-1000 | Skladem | 3 728,74 Kč | ||
| 27 | FRONT LOWER LH SWING ARM ASSY 5DYV-050210-1000-0BP00 | Skladem | 8 156,61 Kč | ||
| 28 | SUSPENSION CONTROL UNIT-L 5DYV-054500-1000-M2 | Skladem | |||
| 29 | CROSS RECESSED PAN HEAD TAPPING SCREW 30110-630320010 | Skladem | 31,07 Kč | ||
| 30 | FRONT LOWER RH SWING ARM ASSY 5DYV-050400-1000-0BP00 | Skladem | 7 317,64 Kč | ||
| 31 | FRONT UPPER RH SWING ARM ASSY 5DYV-050300-1002-0BP00 | Skladem | 6 898,16 Kč | ||
| 32 | FRONT UPPER LH SWING ARM ASSY 5DYV-050100-1002-0BP00 | Skladem | 6 898,16 Kč | ||
| 33 | FRONT LOWER LH SWING ARM ASSY 5DYV-050200-1000-0BP00 | Skladem | 7 317,64 Kč | ||
| 34 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
