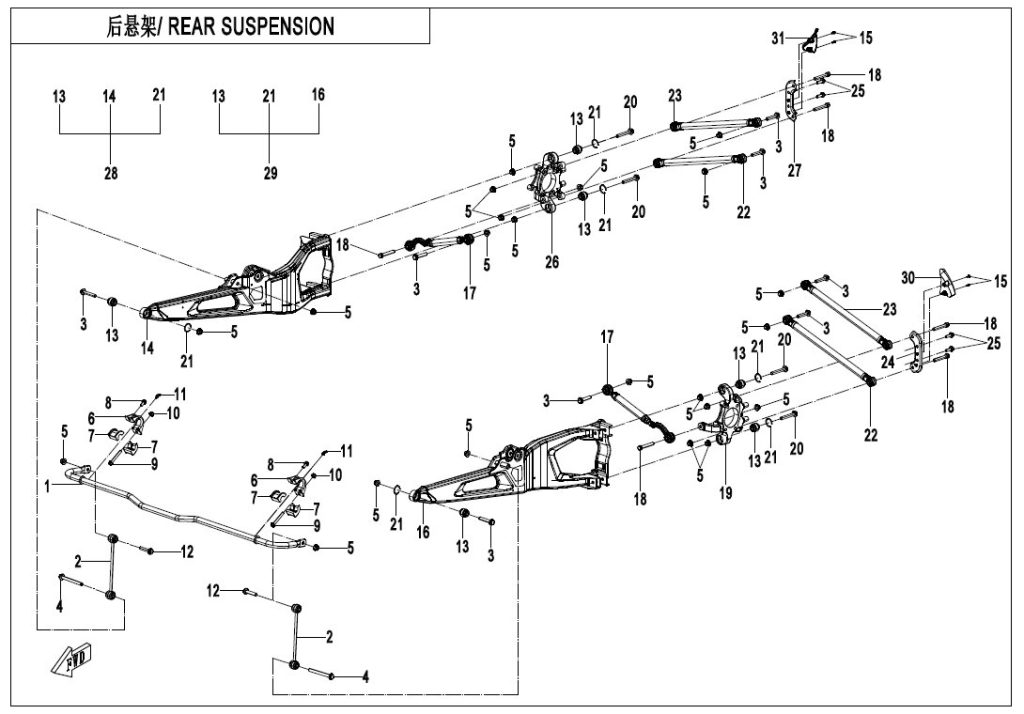

F06-1 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | REAR SWAY BAR ASSEMBLY 5DYV-060610-1000 | Skladem | 2 268,31 Kč | ||
| 2 | REAR SWAY BAR BALL PIN 5DYV-060620-1000 | Skladem | 1 895,44 Kč | ||
| 3 | BOLT M10x1.25×60 30001-122060160 | Skladem | 101,56 Kč | ||
| 4 | BOLT 30024-122125110 | Skladem | 93,22 Kč | ||
| 5 | NUT 30204-122110 | Skladem | 31,07 Kč | ||
| 6 | SWAY BAR PRESS COVER 5GYV-050620-1001 | Skladem | 139,83 Kč | ||
| 7 | REAR SWAY BAR SUPPORT 5GYV-060003-1000 | Skladem | 93,22 Kč | ||
| 8 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 9 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 10 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 11 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 12 | BOLT M10x1.25×70 30001-122070160 | Skladem | 77,68 Kč | ||
| 13 | REAR SWING ARM BEARING 5GYV-060120-1000 | Skladem | 838,97 Kč | ||
| 14 | REAR RH SWING ARM ASSY 5DYV-060210-1002-0BP00 | Skladem | 12 475,73 Kč | ||
| 15 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 16 | REAR LH SWING ARM ASSY 5DYV-060110-1002-0BP00 | Skladem | 12 475,73 Kč | ||
| 17 | REAR SWING ARM ADJUSTING LEVER ASSY 5DYV-060900-1002 | Skladem | 3 697,66 Kč | ||
| 18 | MOUNTING SHAFT, REAR TIE ROD 5BY0-060703 | Skladem | 101,56 Kč | ||
| 19 | REAR LH WHEEL SHAFT SUPPORT 5DYV-060701-1000 | Skladem | 4 583,24 Kč | ||
| 20 | BOLT 30024-122080110 | Skladem | |||
| 21 | BEARING RETAINER, SWING ARM 5BY0-060102 | Skladem | 15,54 Kč | ||
| 22 | REAR SWING ARM LOWER TIE ROD 5DYV-060400-1000 | Skladem | 2 998,53 Kč | ||
| 23 | REAR SWING ARM UPPER TIE ROD 5DYV-060300-1000 | Skladem | 2 998,53 Kč | ||
| 24 | REAR LH WHEEL SHAFT SUPPORT BRACKET 5DYV-060702-1001 | Skladem | 124,29 Kč | ||
| 25 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 26 | REAR RH WHEEL SHAFT SUPPORT 5DYV-060801-1000 | Skladem | 4 583,24 Kč | ||
| 27 | REAR RH WHEEL SHAFT SUPPORT BRACKET 5DYV-060704-1001 | Skladem | 124,29 Kč | ||
| 28 | REAR RH SWING ARM ASSY 5DYV-060200-1002-0BP00 | Skladem | 14 961,55 Kč | ||
| 29 | REAR LH SWING ARM ASSY 5DYV-060100-1002-0BP00 | Skladem | 14 961,55 Kč | ||
| 30 | REAR LH SWING ARM MUDGUARD 5DYV-069100-1000 | Skladem | 108,75 Kč | ||
| 31 | REAR RH SWING ARM MUDGUARD 5DYV-069200-1000 | Skladem | 108,75 Kč | ||
