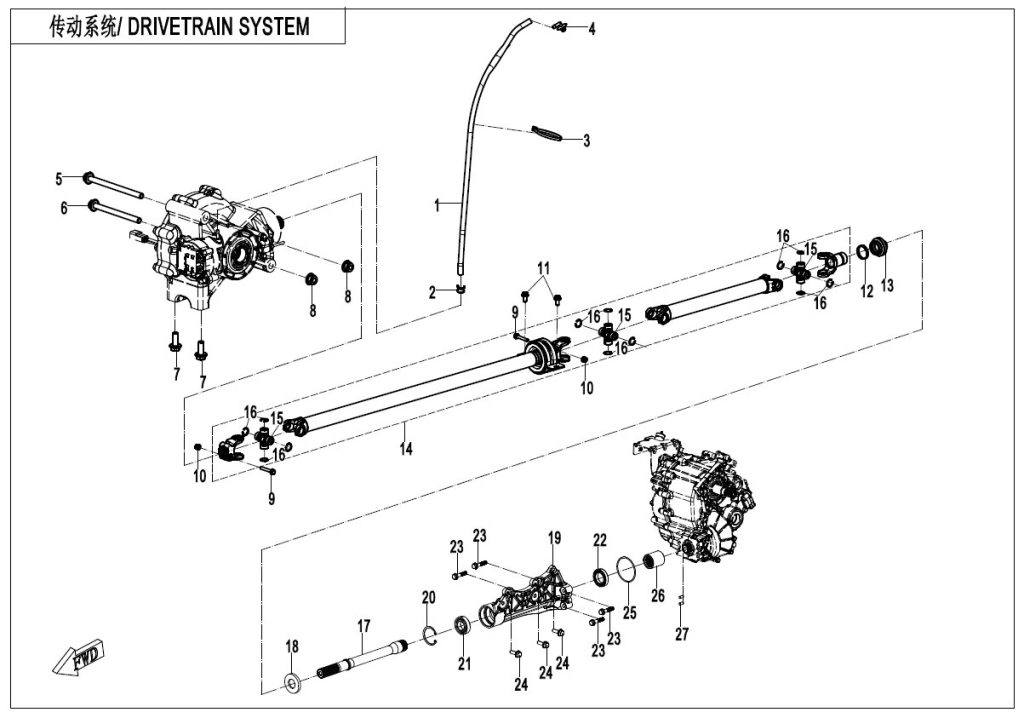

F30 DRIVETRAIN SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | BREATHER HOSE, FRONT GEAR CASE 9010-310001 | Skladem | 62,15 Kč | ||
| 2 | CLAMP A8 30601-108010 | Skladem | 15,54 Kč | ||
| 3 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 4 | BREATHER HOSE CONNECTOR 9AWV-315001-8000 | Skladem | 58,08 Kč | ||
| 5 | Šroub 30006-102140810 | Skladem | 93,22 Kč | ||
| 6 | Šroub 30006-102120810 | Skladem | 93,22 Kč | ||
| 7 | Šroub 30006-102025810 | Skladem | 31,07 Kč | ||
| 8 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 9 | HEX FLANGE BOLT 30006-080050110 | Skladem | 31,07 Kč | ||
| 10 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 11 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 12 | BIG RING 9GQ0-290104 | Skladem | 62,15 Kč | ||
| 13 | SLEEVE 5HYV-290101-6000 | Skladem | 62,15 Kč | ||
| 14 | FRONT DRIVE SHAFT 5GYV-290100-1001 | Skladem | 12 009,64 Kč | ||
| 15 | UNIVERSAL JOINT Φ25×64 7020-290130 | Skladem | 435,02 Kč | ||
| 16 | CIRCLIP FOR HOLE A-D25 30800-02505 | Skladem | 15,54 Kč | ||
| 17 | OUTPUT SPLINE SHAFT 0NYV-069609-1001 | Skladem | 2 206,17 Kč | ||
| 18 | OIL SEAL 0NYV-069607-1000 | Skladem | 201,97 Kč | ||
| 19 | GEARBOX BRACKET 1 0NYV-069601-1001 | Skladem | 2 501,36 Kč | ||
| 20 | CIRCLIP FOR HOLE 47 30803-04705 | Skladem | 15,54 Kč | ||
| 21 | BEARING 6005 0NYV-069603-1000 | Skladem | 295,19 Kč | ||
| 22 | BEARING 61906 0NYV-069604-1000 | Skladem | 636,99 Kč | ||
| 23 | BOLT M8×38 0110-060010-0030 | Skladem | 43,52 Kč | ||
| 24 | Šroub 0130-011114-00001 | Skladem | 31,07 Kč | ||
| 25 | O-SEAL RING 63×2.5 0800-014003 | Skladem | 43,52 Kč | ||
| 26 | OUTPUT SPLINE SLEEVE 0NYV-069608-1000 | Skladem | 310,73 Kč | ||
| 27 | DOWEL PIN Dia 6×12 01A0-056004 | Skladem | 15,54 Kč | ||
