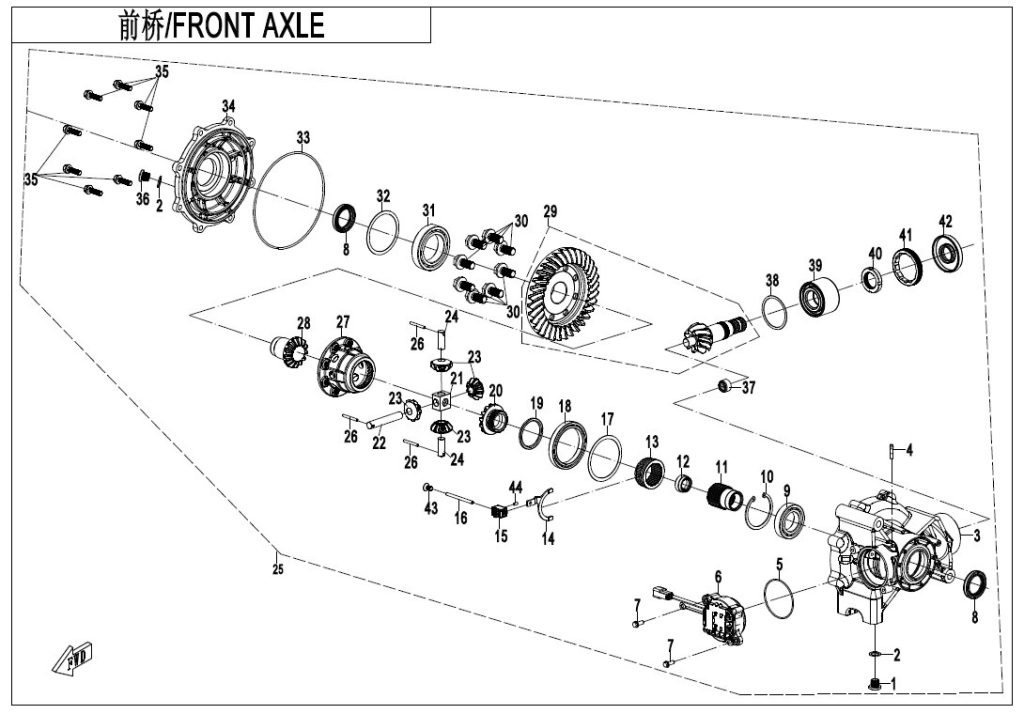

F31 FRONT AXLE
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 2 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 3 | FRONT GEAR CASE Q841-310001-10000 | Skladem | 3 930,71 Kč | ||
| 4 | BREATHER CONNECTOR 0180-311004 | Skladem | 15,54 Kč | ||
| 5 | O-RING 67.5*2 Q830-310012-10000 | Skladem | 62,15 Kč | ||
| 6 | ELECTRICAL FRONT GEAR CASE MOTOR 9AWV-152900-8000 | Skladem | 4 536,63 Kč | ||
| 7 | BOLT M6×18 0010-023008 | Skladem | 15,54 Kč | ||
| 8 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 9 | BEARING 6007 30400-03502 | Skladem | 333,68 Kč | ||
| 10 | RETAINER 62 30800-06200 | Skladem | 31,07 Kč | ||
| 11 | SPLINE SLEEVE Q841-310008 | Skladem | 543,77 Kč | ||
| 12 | GUIDE PIN Q841-310007 | Skladem | 124,29 Kč | ||
| 13 | SPLINE BUSHING Q841-310005 | Skladem | 466,09 Kč | ||
| 14 | SHIFT FORK Q841-310006 | Skladem | 46,61 Kč | ||
| 15 | BLOCK ASSY. Q890-310010 | Skladem | 668,07 Kč | ||
| 16 | PIN SHAFT Q830-310003 | Skladem | 77,68 Kč | ||
| 17 | ADJUSTING WASHER 84.5×75 JA81-310001-1000-00100 | Skladem | 62,15 Kč | ||
| 17 | ADJUSTING WASHER 84.5×75 JA81-310001-1000-00200 | Skladem | 62,15 Kč | ||
| 17 | ADJUSTING WASHER 84.5×75 JA81-310001-1000-00300 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 84.5×75 JA81-310001-1000-00400 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 84.5×75 JA81-310001-1000-00500 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 84.5×75 JA81-310001-1000-00600 | Skladem | 62,15 Kč | ||
| 18 | NEEDLE BEARING GB/T 276 61813 30400-06500 | Skladem | 792,36 Kč | ||
| 19 | THRUST WASHER Q841-313003 | Skladem | 108,75 Kč | ||
| 20 | LH SHAFT GEAR Q841-313005-10000 | Skladem | 1 677,93 Kč | ||
| 21 | CROSS BUSHING Q840-313008 | Skladem | 481,63 Kč | ||
| 22 | PLANET GEAR SHAFT Q840-313007-10000 | Skladem | 108,75 Kč | ||
| 23 | PLANET GEAR Q840-313006-10000 | Skladem | 341,80 Kč | ||
| 24 | SHORT PLANET GEAR SHAFT Q840-313005-10000 | Skladem | 93,22 Kč | ||
| 25 | FRONT GEAR CASE ASSY Q841-310000-00001 | Skladem | 28 757,88 Kč | ||
| 26 | CYLINDER PIN 30906-0403500 | Skladem | 15,54 Kč | ||
| 27 | FRONT DIFFERENTIAL CASE Q841-313004-10000 | Skladem | 2 175,10 Kč | ||
| 28 | RH CV SHAFT GEAR Q841-313001-10000 | Skladem | 2 175,10 Kč | ||
| 29 | BEVEL GEAR ASSY, FRONT GEAR CASE SH-Q841-3100A0 | Skladem | 8 016,78 Kč | ||
| 30 | BOLT ASSY 0180-313100 | Skladem | |||
| 31 | DEEP GROOVE BALL BEARING 30400-05081 | Skladem | 388,41 Kč | ||
| 32 | ADJUSTING WASHER 79.5×68 Q830-310015-00500 | Skladem | 46,61 Kč | ||
| 32 | ADJUSTING WASHER 79.5×68 Q830-310015-00600 | Skladem | 46,61 Kč | ||
| 32 | ADJUSTING WASHER 79.5×68 Q830-310015-00100 | Skladem | 46,61 Kč | ||
| 32 | ADJUSTING WASHER 79.5×68 Q830-310015-00200 | Skladem | 46,61 Kč | ||
| 32 | ADJUSTING WASHER 79.5×68 Q830-310015-00300 | Skladem | 46,61 Kč | ||
| 32 | ADJUSTING WASHER 79.5×68 Q830-310015-00400 | Skladem | 46,61 Kč | ||
| 33 | O-SEAL RING 151×3 0180-334002 | Skladem | 43,52 Kč | ||
| 34 | FRONT GEAR CASE COVER Q841-310004-10000 | Skladem | 1 305,06 Kč | ||
| 35 | BOLT 0110-060011 | Skladem | 15,54 Kč | ||
| 36 | BOLT M14×1.25×12 0180-021008 | Není skladem | 31,07 Kč | ||
| 37 | NEEDLE BEARING 30403-01500 | Skladem | 217,51 Kč | ||
| 38 | ADJUSTING WASHER Q840-310007-00200 | Skladem | 31,07 Kč | ||
| 38 | ADJUSTING WASHER Q840-310007-00300 | Skladem | 31,07 Kč | ||
| 38 | ADJUSTING WASHER 61.7×54.7 Q840-310007-00100 | Skladem | 31,07 Kč | ||
| 39 | HUB BEARING 30411-03082 | Skladem | 916,65 Kč | ||
| 40 | SMALL NUT 30235-303050 | Skladem | 155,36 Kč | ||
| 41 | LOCK SCREW RING M65×1.5×10 Q840-310008 | Skladem | 310,73 Kč | ||
| 42 | OIL SEAL 27×66×10 Q841-310002 | Skladem | 248,58 Kč | ||
| 43 | Šroub (vrut) 30107-060010410 | Není skladem | 15,54 Kč | ||
| 44 | PIN SHAFT 30913-0300550 | Skladem | 15,54 Kč | ||
