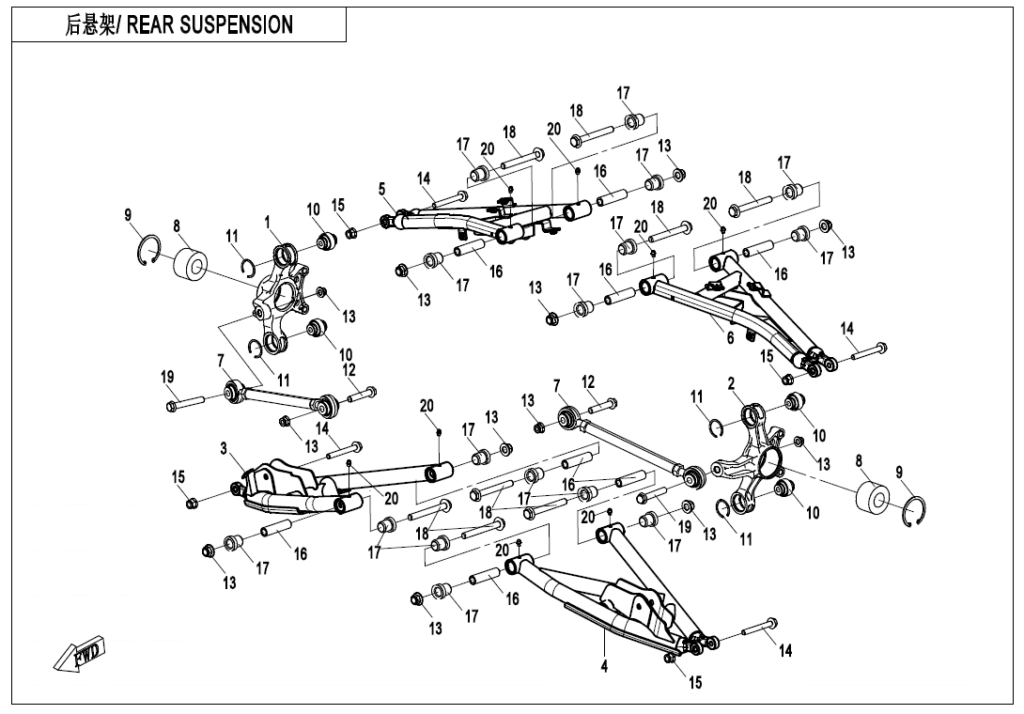

F06-1 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HOLDER, REAR RH WHEEL SHAFT 5BWV-060801-5001 | Skladem | 2 703,33 Kč | ||
| 2 | HOLDER, REAR LH WHEEL SHAFT 5BWV-060701-5001 | Skladem | 2 703,33 Kč | ||
| 3 | REAR RH LOWER SWING ARM ASSY 5BYV-060410-8000-0BP00 | Skladem | 3 495,69 Kč | ||
| 4 | REAR LH LOWER SWING ARM ASSY 5BYV-060210-8000-0BP00 | Skladem | 3 495,69 Kč | ||
| 5 | REAR RH UPPER SWING ARM ASSY 5BYV-060310-8000-0BP00 | Skladem | 2 749,94 Kč | ||
| 6 | REAR LH UPPER SWING ARM ASSY 5BYV-060110-8000-0BP00 | Skladem | 2 749,94 Kč | ||
| 7 | REAR SWING ARM ROD ASSY 5BYV-060900-8000 | Skladem | 2 765,48 Kč | ||
| 8 | HUB BEARING 30411-03080 | Skladem | 1 475,96 Kč | ||
| 8 | HUB BEARING 30411-03081 | Skladem | 963,26 Kč | ||
| 9 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 10 | BEARING, REAR SWING ARM 5BY0-060120 | Skladem | 714,67 Kč | ||
| 11 | BEARING RETAINER, SWING ARM 5BY0-060102 | Skladem | 15,54 Kč | ||
| 12 | BOLT M10x1.25×60 30001-122060160 | Skladem | 101,56 Kč | ||
| 13 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 14 | Šroub 30006-102080110 | Skladem | 62,15 Kč | ||
| 15 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 16 | SHORT MIDDLE SPACER, SWING ARM 5SYV-060201-6000 | Skladem | 159,72 Kč | ||
| 17 | SHORT BUSHING, SWING ARM 5SYV-060202-6000 | Skladem | 108,75 Kč | ||
| 18 | Šroub 30024-122100110 | Není skladem | |||
| 19 | MOUNTING SHAFT, REAR TIE ROD 5BY0-060703 | Skladem | 101,56 Kč | ||
| 20 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
