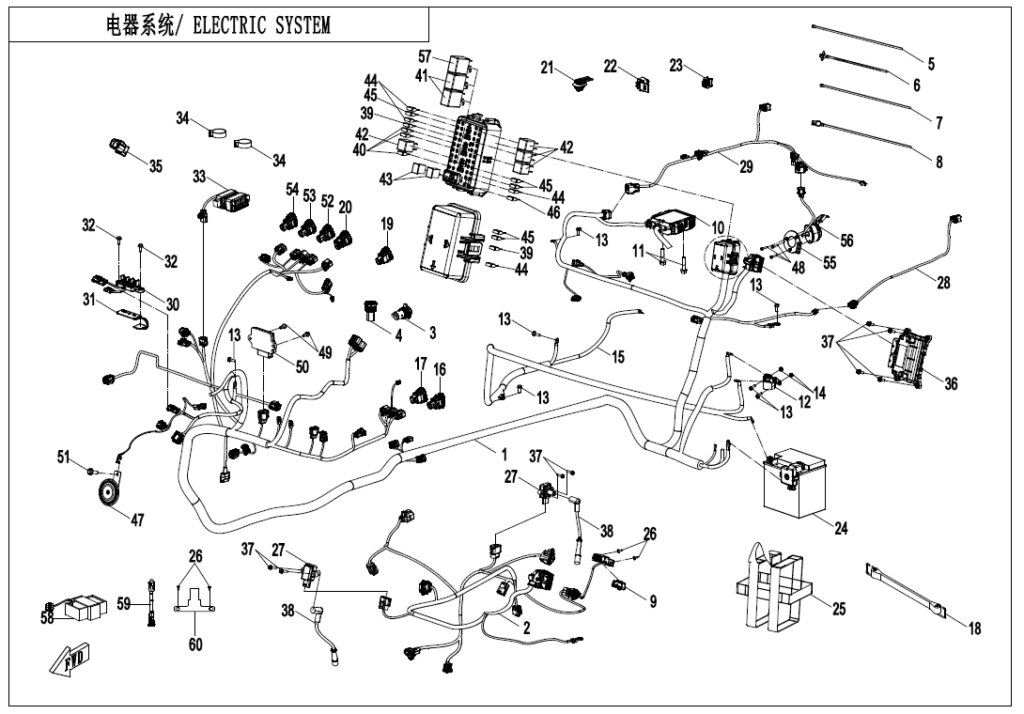

F15-1-V2 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 5BYV-150100-9401 | Skladem | |||
| 02 | EFI CABLE 5BYV-150200-7000 | Skladem | |||
| 03 | POWER OUTLET 6WWV-150500-5000-10 | Skladem | 574,85 Kč | ||
| 04 | USB OUTLET 6WWV-150600-5000-10 | Skladem | 1 165,23 Kč | ||
| 05 | TIE BAND 9010-150004 | Skladem | 15,54 Kč | ||
| 06 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 07 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 08 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 09 | CAP, DIAGNOSIS CONNECTOR 5BY0-150305 | Skladem | 77,68 Kč | ||
| 10 | REGULATOR 0800-177000-30000 | Skladem | 4 303,58 Kč | ||
| 11 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 12 | STARTER RELAY 5BWV-150510-5300 | Skladem | 823,43 Kč | ||
| 13 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 14 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 15 | STARTER CABLE 5BWV-150310-5100 | Skladem | 3 169,43 Kč | ||
| 16 | DIMMER SWITCH 5ASV-169030-6001 | Skladem | 512,70 Kč | ||
| 17 | MODE SWITCH 5BWV-151800-5000 | Skladem | 481,63 Kč | ||
| 18 | TIE BAND,BATTERY 7030-040910 | Skladem | 174,09 Kč | ||
| 19 | ILLUMINATION SWITCH 5ASV-169020-6001 | Skladem | 512,70 Kč | ||
| 20 | 2WD/4WD SWITCH 5BWV-151700-5000 | Skladem | 528,24 Kč | ||
| 21 | CLASP 6GU#-150001-6000-M1 | Skladem | 29,04 Kč | ||
| 22 | CLIP CFCV-CBC001-2001-M1 | Není skladem | |||
| 23 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 24 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 25 | BELT,BETTERY 9060-152100 | Skladem | 124,29 Kč | ||
| 26 | SELF-TAPPING SCREW ST4.2×16 30110-420160010 | Skladem | 15,54 Kč | ||
| 27 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 28 | ADAPTER CABLE, LH TAIL LIGHT 5BWV-150182-5100 | Skladem | |||
| 29 | ADAPTER CABLE, RH TAIL LIGHT 5BWV-150183-5101 | Skladem | |||
| 30 | EXTENSION POWER TERMINAL 5BWV-156905-5000-M1 | Skladem | 403,95 Kč | ||
| 31 | EXTENSION POWER TERMINAL CAP 5BWV-156906-5000-M1 | Skladem | 31,07 Kč | ||
| 32 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 33 | Jednotka T-BOX 6GUV-151800-7101-M1 | Skladem | |||
| 33 | Jednotka T-BOX 6GUV-151800-7102-M1 | Skladem | |||
| 33 | Jednotka T-BOX SN1V-691100-1301-11 | Skladem | 6 943,23 Kč | ||
| 34 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 35 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 36 | ECM ASSY 5BYV-001000-7100 | Skladem | |||
| 36 | ECM ASSY 5BYV-001000-7110 | Skladem | |||
| 37 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 38 | HIGH-TENSION CABLE 0JYV-178000-4000 | Skladem | |||
| 38 | HIGH-TENSION CABLE 0JYV-178000-4001 | Skladem | 388,41 Kč | ||
| 39 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 40 | FUSE 2A CFCV-150010-4500 | Skladem | 93,22 Kč | ||
| 41 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 42 | AUXILIARY RELAY CFCV-150525-2000-M1 | Skladem | 145,20 Kč | ||
| 43 | 40A FUSE 5BY0-150302 | Skladem | 31,07 Kč | ||
| 44 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 45 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 46 | 30A FUSE 806A-151308 | Skladem | 31,07 Kč | ||
| 47 | ELECTRIC HORN 6060-150600 | Skladem | 275,65 Kč | ||
| 48 | SCREW M5x35 30105-050035410 | Skladem | 15,54 Kč | ||
| 49 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 50 | Přerušovač blinkrů 5BWV-161000-5201 | Skladem | 714,67 Kč | ||
| 51 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 52 | HORN SWITCH 5ASV-169040-6001 | Skladem | 512,70 Kč | ||
| 53 | HAZARD SWITCH 5ASV-169070-6001 | Není skladem | 512,70 Kč | ||
| 54 | TURN SWITCH 5ASV-169060-6001 | Není skladem | 512,70 Kč | ||
| 55 | BRACKET, TRAILER POWER 5BWV-230520-5000 | Skladem | 186,44 Kč | ||
| 56 | TRAILER POWER SOCKET 9DQV-151300-3101 | Skladem | 1 491,49 Kč | ||
| 56 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 57 | AUXILIARY RELAY CFCV-150524-2000-M1 | Skladem | 124,29 Kč | ||
| 58 | TRAILER TURN LIGHT CONTROL UNIT 5ASV-161001-7D00 | Skladem | |||
| 59 | INDICATOR 4020-160603 | Skladem | 155,36 Kč | ||
| 60 | BRACKET,FLASHER MODULE 9010-030013 | Skladem | 62,15 Kč | ||
