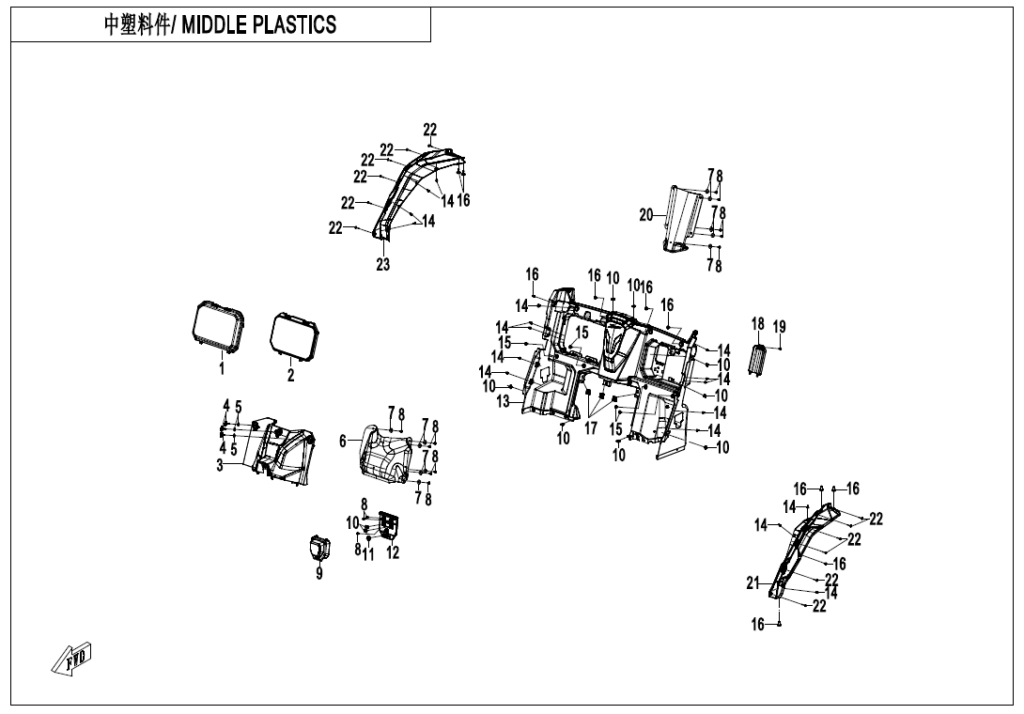

F04-4 MIDDLE PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SERVICE COVER, AIR FILTER 5BWV-044013-5000 | Skladem | 279,66 Kč | ||
| 2 | ECU CAP 5BWV-043064-5000 | Skladem | 279,66 Kč | ||
| 3 | FRONT SERVICE COVER, GUARD 5BWV-042053-5000 | Skladem | 574,85 Kč | ||
| 4 | QUICK RELEASE BOLT 5BWV-040002-5000 | Není skladem | |||
| 5 | RETAINER 5BWV-040004-5000 | Není skladem | |||
| 6 | HEAT INSULATOR, GUARD SERVICE COVER 5BWV-042055-5000 | Skladem | 559,31 Kč | ||
| 7 | RETAINER 30301-060470 | Skladem | 15,54 Kč | ||
| 8 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 9 | GUARD, START RELAY 5BWV-042058-5000 | Skladem | 87,12 Kč | ||
| 10 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 11 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 12 | BRACKET, START RELAY 5BWV-042059-5000 | Skladem | 77,68 Kč | ||
| 13 | REAR GUARD, SEAT 5BWV-042052-5001 | Skladem | |||
| 14 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 15 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
| 16 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 17 | QUICK RELEASE BUCKLE 5BWV-040003-5000 | Není skladem | |||
| 18 | REAR COVER, FUSE BOX 5BWV-042057-5000 | Skladem | 101,64 Kč | ||
| 20 | HEAT INSULATOR, REAR GUARD 5BWV-042056-5000 | Skladem | 621,46 Kč | ||
| 21 | LH REAR EXTENDED FENDER ASSY 5BYV-041063-8000 | Skladem | 901,11 Kč | ||
| 22 | INNER HEX SLEF-TAPPING SCREW ST4.8×40 5BWV-040006-5000 | Skladem | 31,07 Kč | ||
| 23 | RH REAR EXTENDED FENDER ASSY 5BYV-041064-8000 | Není skladem | 901,11 Kč | ||
