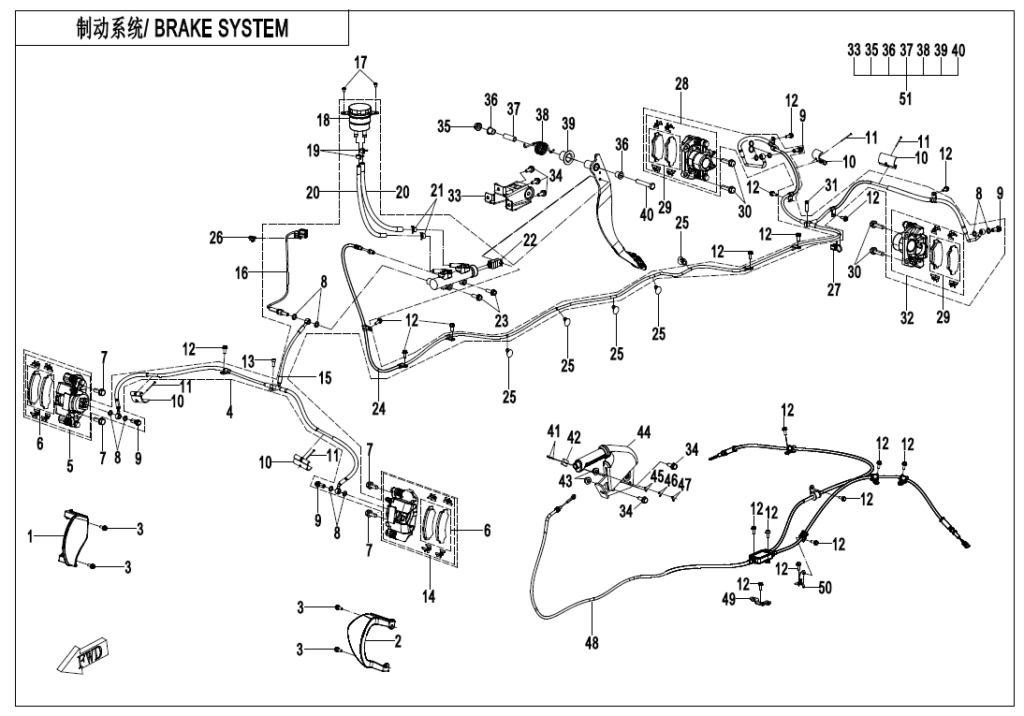

F08-V3 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | GUARD, FRONT RH BRAKE CALIPER 5BY0-080008 | Skladem | 101,56 Kč | ||
| 2 | GUARD, FRONT LH BRAKE CALIPER 5BY0-080007 | Skladem | 101,56 Kč | ||
| 3 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 4 | Brzdový systém 5BYV-081000-9001 | Skladem | |||
| 5 | FRONT RH BRAKE CALIPER ASSY 9AWV-081200-4000 | Skladem | 4 101,61 Kč | ||
| 6 | FRONT BRAKE PAD ASSY 5HYV-0811A0 | Skladem | 1 336,13 Kč | ||
| 7 | Šroub 30006-102025810 | Skladem | 31,07 Kč | ||
| 8 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 9 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 10 | PLASTIC CLASP 5BY0-080002 | Skladem | 46,61 Kč | ||
| 11 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 12 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 13 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 14 | FRONT LH BRAKE CALIPER ASSY 9AWV-081100-4000 | Skladem | 4 101,61 Kč | ||
| 15 | FRONT BRAKE FLUID HOSE 5BYV-081010-8000 | Skladem | 1 211,84 Kč | ||
| 16 | HYDRAULIC SENSOR SWITCH 5BWV-080010-5000 | Skladem | 838,97 Kč | ||
| 17 | SELF-TAPPING SCREW ST4.8×13 30110-481130010 | Skladem | 29,02 Kč | ||
| 18 | RESERVIOR TANK ASSY 9GQS-081010-20000 | Skladem | 590,38 Kč | ||
| 19 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 20 | FLUID RESERVOIR HOSE 1 5BY0-081001 | Skladem | 574,85 Kč | ||
| 21 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 22 | MASTER CYLINDER 5SYV-081100-6000 | Skladem | 2 485,82 Kč | ||
| 23 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 24 | REAR BRAKE FLUID HOSE 5BYV-081020-8000 | Není skladem | |||
| 25 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 26 | CLIP CFCV-CCC001-2000-M1 | Skladem | 31,07 Kč | ||
| 27 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 28 | REAR RH BRAKE CALIPER ASSY 5HYV-081060-2C00 | Skladem | 7 473,01 Kč | ||
| 29 | REAR BRAKE PAD ASSY 5HYV-0813A0 | Skladem | 1 196,30 Kč | ||
| 30 | Šroub 30006-102035810 | Skladem | 31,07 Kč | ||
| 31 | Šroub (vrut) 30102-060025810 | Skladem | 15,54 Kč | ||
| 32 | REAR LH BRAKE CALIPER ASSY 5HYV-081050-2C00 | Skladem | 7 473,01 Kč | ||
| 33 | BRAKE PEDAL BRACKET 5BWV-082100-5000-25 | Skladem | |||
| 34 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 35 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 36 | BUSHING 5BWV-082100-5000-26 | Skladem | |||
| 37 | SLEEVE 5BWV-082100-5000-24 | Skladem | |||
| 38 | RETURN SPRING 5BWV-082100-5000-22 | Skladem | |||
| 39 | SPRING BUSHING 5BWV-082100-5000-23 | Skladem | |||
| 40 | Šroub 30006-102060810 | Skladem | 31,07 Kč | ||
| 41 | Šroub (vrut) 30105-020016700 | Skladem | 15,54 Kč | ||
| 42 | MICRO SWITCH 7000-082210-20000 | Skladem | 507,78 Kč | ||
| 43 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 44 | HAND BRAKE 5BYV-083200-B000 | Skladem | 1 615,79 Kč | ||
| 45 | Podložka 30306-020800 | Skladem | 15,54 Kč | ||
| 46 | Podložka 30303-020900 | Skladem | 15,54 Kč | ||
| 47 | Matice 30200-020500 | Skladem | 15,54 Kč | ||
| 48 | PARKING CABLE 5BYV-083100-9000 | Není skladem | |||
| 49 | WIRE BOX BRACKET 5BYV-081800-9000 | Není skladem | |||
| 50 | BRACKET 5BYV-081900-9000 | Není skladem | |||
| 51 | BRAKE PEDAL ASSY 5BWV-082100-5000 | Skladem | |||
