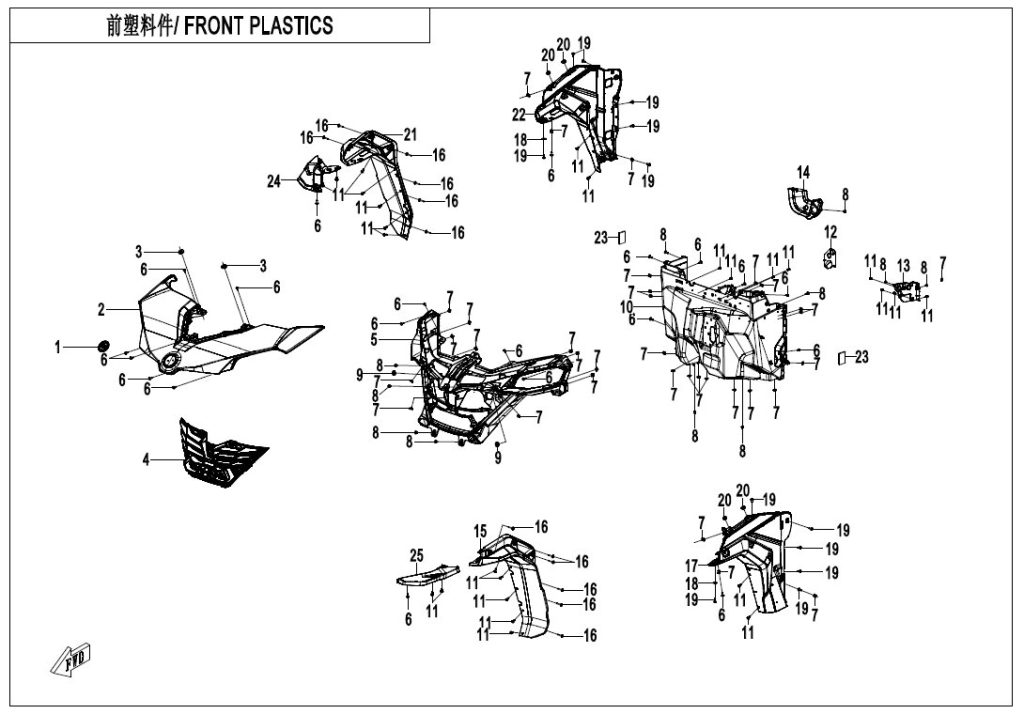

F04-1 FRONT PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | CFMOTO LOGO 5ASV-190001-6000 | Skladem | 403,95 Kč | ||
| 2 | FRONT TOP COVER 5BWV-041041-5000-0BM00 | Není skladem | 3 961,78 Kč | ||
| 2 | FRONT TOP COVER 5BWV-041041-5000-0BQ00 | Skladem | |||
| 2 | FRONT TOP COVER 5BWV-041041-5000-0RM00 | Skladem | |||
| 3 | BACKREST DAMPING MAT 5HY#-130002-1000 | Skladem | 31,07 Kč | ||
| 4 | MIDDLE NET 5BWV-041012-5000 | Skladem | 761,28 Kč | ||
| 5 | HEADLIGHT PANEL 5BWV-041021-5000 | Skladem | 1 755,61 Kč | ||
| 6 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 7 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 8 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
| 9 | FIXING RUBBER BUSHING 7020-040209 | Skladem | 29,02 Kč | ||
| 10 | Přední rám 5BWV-043041-5002 | Skladem | 4 396,80 Kč | ||
| 11 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 12 | RUBBER PAD, FRONT FENDER 5BWV-043043-5000 | Skladem | 155,36 Kč | ||
| 13 | FRONT FENDER, SMALL 5BWV-043042-5001 | Skladem | 174,24 Kč | ||
| 14 | EPS GUARD 5BWV-043044-5101 | Skladem | 139,83 Kč | ||
| 15 | LH FRONT EXTENDED FENDER ASSY 5BYV-041061-8000 | Skladem | 901,11 Kč | ||
| 16 | INNER HEX SLEF-TAPPING SCREW ST4.8×40 5BWV-040006-5000 | Skladem | 31,07 Kč | ||
| 17 | FRONT LH DECO PLATE 5BWV-041051-5001 | Skladem | 1 553,64 Kč | ||
| 18 | RETAINER 30301-060470 | Skladem | 15,54 Kč | ||
| 19 | INNER HEX SCREW M6x20 6WWV-046902-5000 | Skladem | 15,54 Kč | ||
| 20 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 21 | RH FRONT EXTENDED FENDER ASSY 5BYV-041062-8000 | Není skladem | 901,11 Kč | ||
| 22 | FRONT RH DECO PLATE 5BWV-041052-5001 | Skladem | 1 553,64 Kč | ||
| 23 | SPONGE STRAP 6KM#-040066-8001 | Skladem | 15,54 Kč | ||
| 24 | RH FRONT EXTENDED FENDER SMALL ASSY 5BYV-041066-9000 | Není skladem | 264,12 Kč | ||
| 25 | LH FRONT EXTENDED FENDER SMALL ASSY 5BYV-041065-9000 | Skladem | 264,12 Kč | ||
