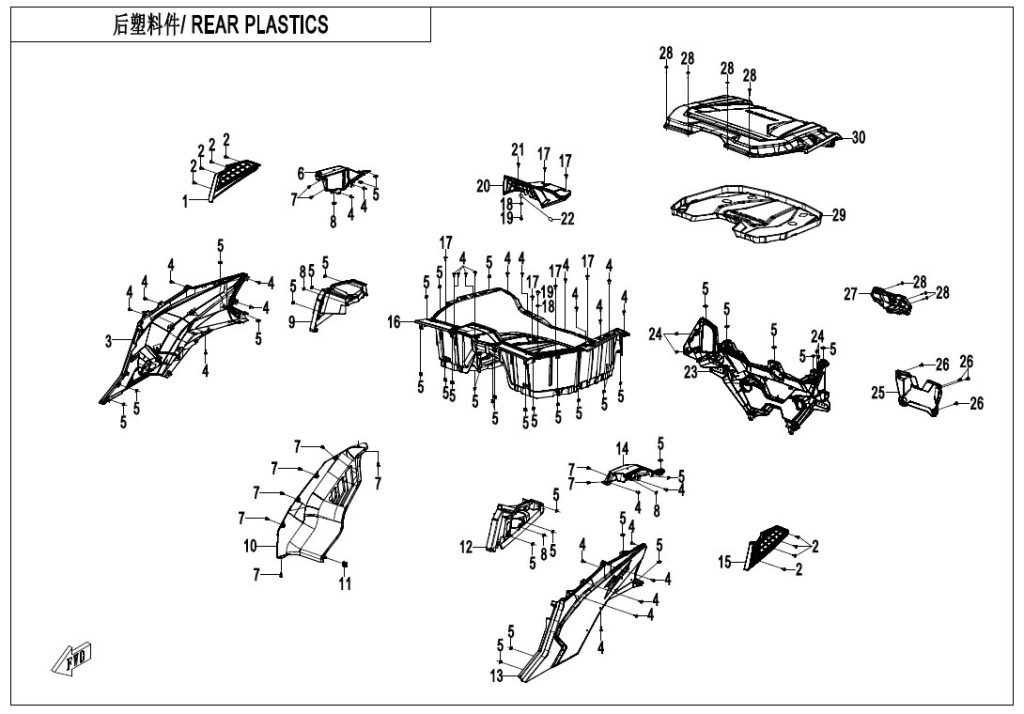

F04-5 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | RH FILTER PANEL 5BWV-042032-5001 | Skladem | 333,96 Kč | ||
| 1 | RH FILTER PANEL 5BWV-042032-5002 | Skladem | 357,34 Kč | ||
| 2 | INNER HEX BOLT M5x12 5BWV-040017-5000 | Není skladem | 15,54 Kč | ||
| 3 | RH SIDE PLATE, CARGO BOX 5BWV-223022-5000 | Skladem | 1 398,28 Kč | ||
| 4 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 5 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 6 | RH SIDE COVER, CARGO BOX 5BWV-223013-5000 | Skladem | 264,12 Kč | ||
| 7 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 8 | NUT CLIP M5 6KM#-040081-8000-M1 | Skladem | 15,54 Kč | ||
| 9 | DEFLECTOR, RH AIR INLET PORT 5BWV-042028-5000 | Není skladem | 357,34 Kč | ||
| 10 | RH REAR FENDER 5BWV-042012-5000 | Skladem | 682,44 Kč | ||
| 11 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 12 | DEFLECTOR, LH AIR INLET PORT 5BWV-042027-5000 | Není skladem | 357,34 Kč | ||
| 13 | LH SIDE PLATE, CARGO BOX 5BWV-223021-5000 | Skladem | 1 398,28 Kč | ||
| 14 | LH SIDE COVER, CARGO BOX 5BWV-223012-5000 | Skladem | 264,12 Kč | ||
| 15 | LH FILTER PANEL 5BWV-042031-5001 | Skladem | 295,19 Kč | ||
| 15 | LH FILTER PANEL 5BWV-042031-5002 | Skladem | 357,34 Kč | ||
| 16 | PLASTIC REAR CARGO BOX 5BWV-223011-5000 | Skladem | 9 523,81 Kč | ||
| 17 | INNER HEX BOLT M8x50 5BWV-040009-5000 | Není skladem | 31,07 Kč | ||
| 18 | WASHER 6.3×16.3×1.2 0700-064001 | Skladem | 15,54 Kč | ||
| 19 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 20 | REAR SERVICE COVER 5BWV-223014-5000 | Není skladem | 683,60 Kč | ||
| 21 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
| 22 | CABLE,FRONT TOP COVER 7030-040010-00001 | Není skladem | 155,36 Kč | ||
| 23 | TAIL LIGHT PANEL 5BWV-223031-5000 | Není skladem | 3 153,89 Kč | ||
| 24 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 25 | REAR LOWER GUARD 5BWV-223032-5000 | Skladem | 217,51 Kč | ||
| 26 | INNER HEX BOLT M6x18 5BWV-040005-5000 | Skladem | 15,54 Kč | ||
| 27 | BRACKET, REAR LICENSE LIGHT 5BWV-223033-5200 | Není skladem | 403,95 Kč | ||
| 28 | INNER HEX SLEF-TAPPING SCREW ST4.8×40 5BWV-040006-5000 | Skladem | 31,07 Kč | ||
| 29 | CARGO MAT 5BYV-223044-7000 | Není skladem | 2 252,78 Kč | ||
| 30 | REAR CARGO BOX COVER ASSY 5BYV-804400-8000 | Skladem | 14 759,58 Kč | ||
