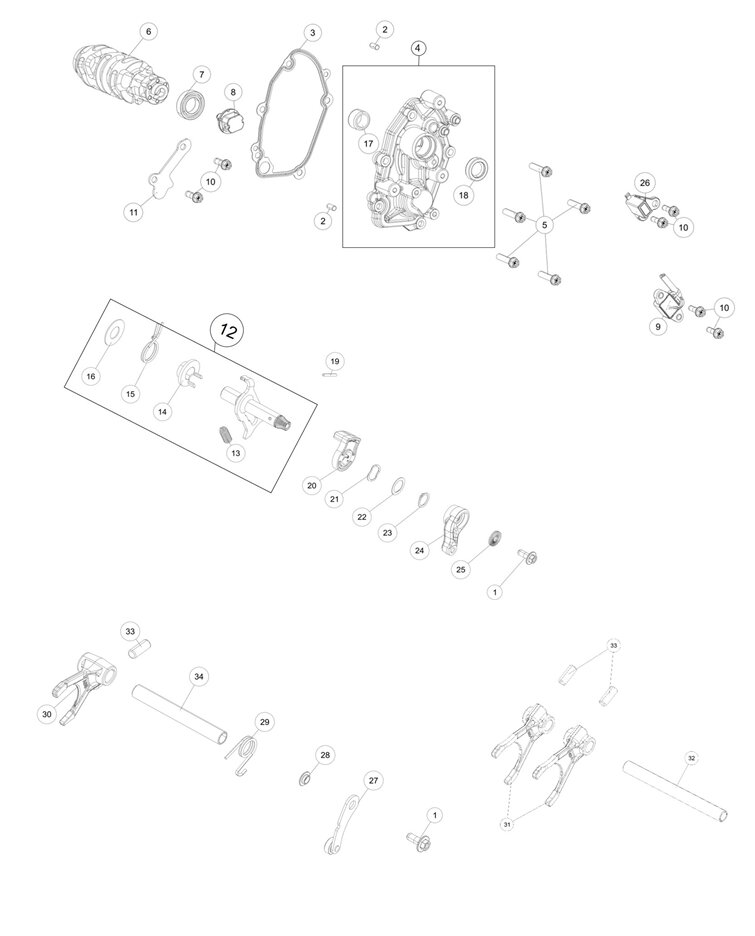

E05 SHIFTING MECHANISM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HH COLLAR SCREW M6X15 T30 SS C0000240601500S | Skladem | 15,54 Kč | ||
| 2 | NEEDLE ROLLER 5X9.8 C0402050980 | Skladem | 15,54 Kč | ||
| 3 | SHIFTING COVER GASKET C64030072000 | Skladem | 264,12 Kč | ||
| 4 | GEARSHIFT COVER ASSY C64030071033FBP | Skladem | |||
| 5 | HH COLLAR SCREW M6X25 T30 C0000250602500 | Skladem | 31,07 Kč | ||
| 6 | SHIFTING DRUM CPL WITHASSEMBLED PINS C64034012100 | Skladem | 7 643,91 Kč | ||
| 7 | GROOVED BALL EARING 17x30x7 C3 C0625069034 | Skladem | 310,73 Kč | ||
| 8 | MAGNET HOLDER C90034050000 | Skladem | 248,58 Kč | ||
| 9 | GEAR POSITION SENSOR C79211023000 | Skladem | 2 796,55 Kč | ||
| 10 | HH COLLAR SCREW M5X16 T30 SS C0000250501600S | Skladem | 186,44 Kč | ||
| 11 | RETAINING BRACKET SHIFT SHAFT C64034011000 | Skladem | 186,44 Kč | ||
| 12 | SHIFT SHAFT CPL. C64034005033 | Skladem | 2 268,31 Kč | ||
| 13 | TORSION SPRING 0.8 MM C56534013100 | Skladem | |||
| 14 | SPRING GUIDE C54634020000 | Skladem | |||
| 15 | SPRING C54834014000 | Skladem | |||
| 16 | STOP DISK 14X30X1 C54634050000 | Skladem | |||
| 17 | NEEDLE SLEEVE 14/20/12 C90032095000 | Skladem | 108,75 Kč | ||
| 18 | SHAFT SEAL RING 14/24/6 C0760142460 | Skladem | 46,61 Kč | ||
| 19 | STUD 2,5X24 C0007025241 | Skladem | 46,61 Kč | ||
| 21 | WAVE SPRING C90034050010 | Skladem | 145,20 Kč | ||
| 22 | SHIM 14X20X0,5 C0988142005 | Skladem | 31,07 Kč | ||
| 23 | SEEGER RING 14X1 C0471140100 | Skladem | 15,54 Kč | ||
| 24 | LINK SUPPORT CAM C6413413000033 | Skladem | 1 134,16 Kč | ||
| 25 | NORDLOCK WASHER M6 C90033041500 | Skladem | 62,15 Kč | ||
| 26 | SHIFT SHAFT SENSOR C90034051100 | Skladem | 2 112,95 Kč | ||
| 27 | LOCKING LEVER C63534024000 | Skladem | 310,73 Kč | ||
| 28 | STEPPED SHIM C63534052000 | Skladem | 77,68 Kč | ||
| 29 | SPRING ARREST ARM C0102701502500 | Skladem | |||
| 30 | SHIFT FORK 5_6 GEAR C63534002000 | Skladem | 528,24 Kč | ||
| 31 | SHIFT FORK 1_4 GEAR C63534001100 | Skladem | 636,99 Kč | ||
| 32 | SHIFT RAIL 1_4 GEAR C75034019200 | Skladem | 341,80 Kč | ||
| 33 | NEELDE ROLLER D8X20 C0402080200 | Skladem | 31,07 Kč | ||
| 34 | SHIFT RAIL 5_6 GEAR C77034019000 | Skladem | 419,48 Kč | ||
