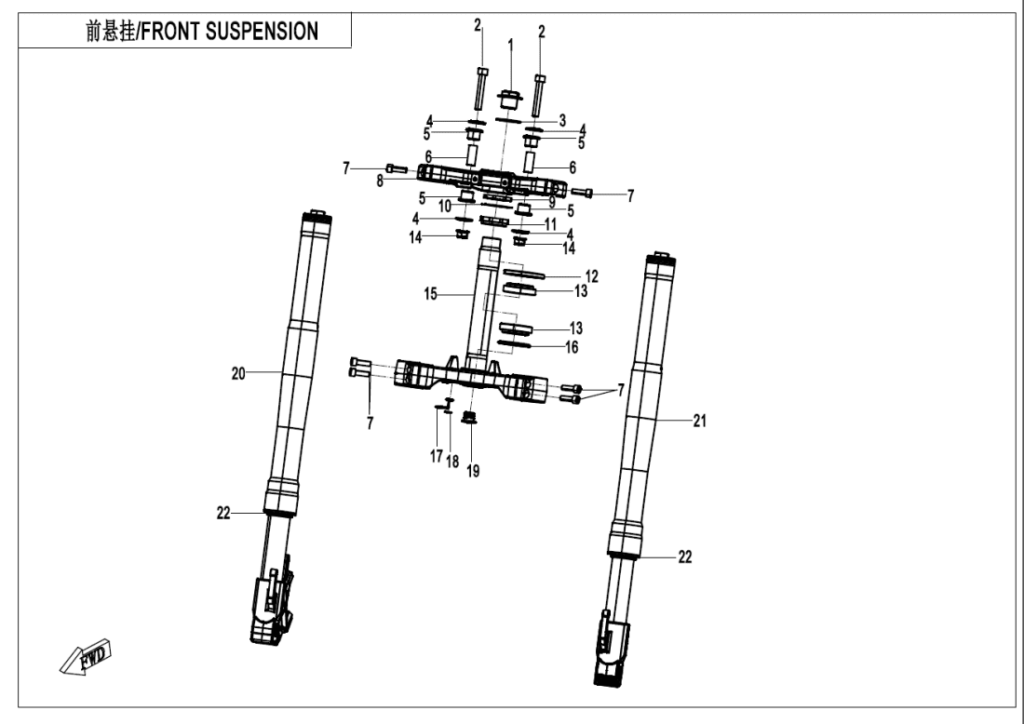

F05 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FIXING SCREW, UPPER TRIPLE CLAMP 6NTA-050003 | Skladem | 232,13 Kč | ||
| 02 | SCREW M10x1.25×60 30102-102060810 | Skladem | 31,07 Kč | ||
| 03 | Podložka A000-050004 | Skladem | 15,54 Kč | ||
| 04 | Podložka 6KJ0-050005 | Skladem | 31,07 Kč | ||
| 05 | DAMPER RUBBER, UPPER TRIPLE CLAMP 6KJ0-050004 | Skladem | 31,07 Kč | ||
| 06 | LINER, UPPER CONNECTING PLATE 6KJ0-050006-00001 | Skladem | 31,07 Kč | ||
| 07 | INNER HEX SCREW M8×25 30102-080025870 | Skladem | 43,52 Kč | ||
| 08 | UPPER TRIPLE CLAMP 6KIV-050001-2000-0BP00 | Skladem | 1 475,96 Kč | ||
| 09 | LOCK NUT 2 A000-050007 | Skladem | 108,75 Kč | ||
| 10 | Podložka A000-050008 | Skladem | 15,54 Kč | ||
| 11 | LOCK NUT 1 A000-050006 | Skladem | 93,22 Kč | ||
| 12 | DUST CAP, UPPER RETAINER A000-050009 | Skladem | 31,07 Kč | ||
| 13 | STEERING BEARING ASSY A000-050100-10000 | Skladem | 419,48 Kč | ||
| 14 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 15 | LOWER TRIPLE CLAMP 6KIV-050300-2000-0BP00 | Skladem | 2 547,97 Kč | ||
| 16 | ANTI-DUST CAP, LOWER RETAINING RING A000-050400 | Skladem | 62,15 Kč | ||
| 17 | FIXING WIRE, FRONT BRAKE HOSE 6KJ0-050011 | Skladem | 46,61 Kč | ||
| 18 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 19 | RUBBER PLUG 2 A000-050011 | Skladem | 46,61 Kč | ||
| 20 | FRONT RH SHOCK ABSORBER 6KIV-050600-2000-M1 | Skladem | 8 063,39 Kč | ||
| 21 | FRONT LH SHOCK ABSORBER 6KIV-050500-2000-M1 | Skladem | 8 063,39 Kč | ||
| 22 | DUST-PROOF CAP 6KMV-050500-B000-27 | Skladem | 77,68 Kč | ||
