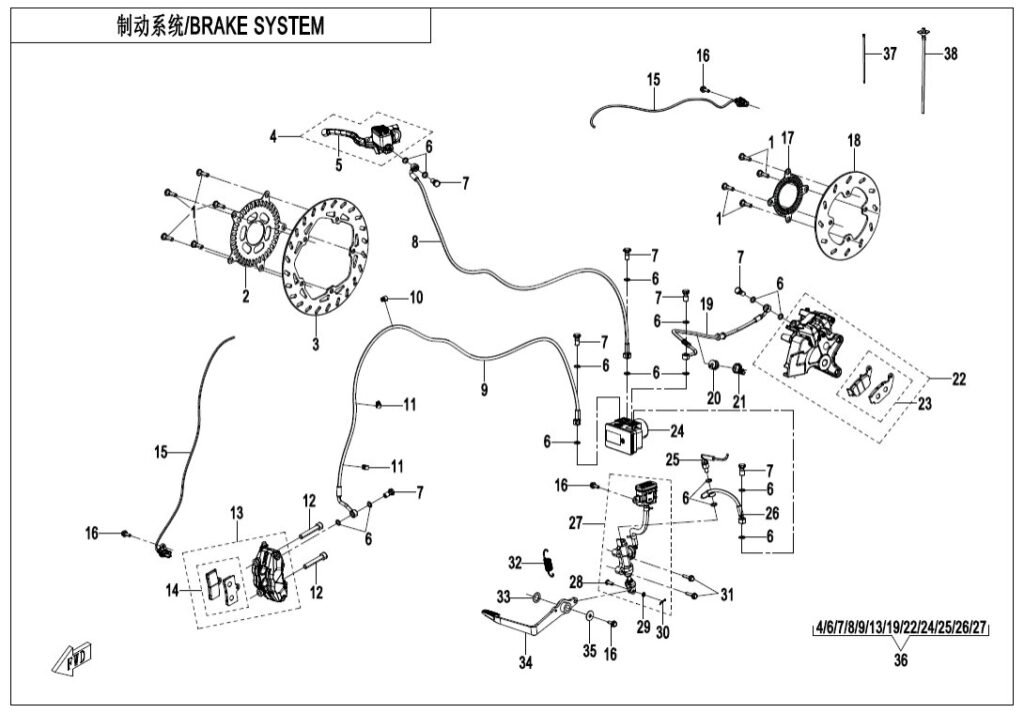

F08 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT, FRONT BRAKE DISC 6KJ0-080005 | Skladem | 31,07 Kč | ||
| 02 | INDUCTION PLATE, COUNTER 6KJ0-080004 | Skladem | 279,66 Kč | ||
| 03 | FRONT BRAKE DISC 6KJ0-080001-20000 | Skladem | 1 040,94 Kč | ||
| 04 | HAND BRAKE MASTER CYLINDER 6KMV-081100-B000-M1 | Skladem | 2 019,73 Kč | ||
| 05 | BRAKE LEVER 6KMV-081100-B000-20 | Skladem | 264,12 Kč | ||
| 06 | REATAINER 6KM#-081000-8100-20 | Skladem | 46,61 Kč | ||
| 07 | BOLT, FUEL PIPE 6KM#-080103-8101 | Skladem | 101,56 Kč | ||
| 08 | FRONT BRAKE FLUID OUTLET HOSE 6KIV-081010-2000-M1 | Skladem | 1 398,28 Kč | ||
| 09 | FRONT BRAKE FLUID INLET HOSE 6KIV-081020-2000-M1 | Skladem | 1 444,89 Kč | ||
| 10 | WIRE CLIP, BRAKE FLUID HOSE EAEV-080006-1000 | Skladem | 43,56 Kč | ||
| 11 | CLIP, BRAKE HOSE 6KJ0-080003-00001 | Skladem | 31,07 Kč | ||
| 12 | SCREW M10x1.25×60 30102-102060810 | Skladem | 31,07 Kč | ||
| 13 | FRONT BRAKE CALIPER ASSY 6KIV-081200-2000 | Skladem | 3 480,15 Kč | ||
| 14 | BRAKE PAD ASSY SH-6KIV-0812A0 | Skladem | 776,82 Kč | ||
| 15 | SPEED SENSOR 6NTV-080004-4101-M1 | Skladem | 668,07 Kč | ||
| 16 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 17 | REAR GEAR RING 6NTG-080009 | Skladem | 304,67 Kč | ||
| 18 | REAR BRAKE DISC 6KJ0-080002-10000 | Skladem | 826,95 Kč | ||
| 19 | REAR BRAKE FLUID INLET HOSE 6KIV-081040-2000-M1 | Skladem | 776,82 Kč | ||
| 20 | RUBBER OIL HOSE CLIP 6KM#-080002-8000 | Skladem | 31,07 Kč | ||
| 21 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 22 | REAR BRAKE CALIPER ASSY 6KMV-091100-B100 | Skladem | 3 107,28 Kč | ||
| 23 | REAR BRAKE PAD ASSY 6KMV-0911A0 | Skladem | 838,97 Kč | ||
| 24 | MAB EXECUTION UNIT 6KIV-081500-2000-M1 | Skladem | 14 386,71 Kč | ||
| 25 | HYDRAULIC SWITCH ASSY 6KMV-081700-C400-M1 | Skladem | 466,09 Kč | ||
| 26 | REAR BRAKE FLUID OUTLET HOSE 6KIV-081030-2000-M1 | Skladem | 543,77 Kč | ||
| 27 | REAR BRAKE MASTER CYLINDER 6KIV-091200-2000 | Skladem | 1 273,98 Kč | ||
| 28 | PIN SHAFT 30904-0602270 | Skladem | 46,61 Kč | ||
| 29 | WASHER 6x12x1.6 30300-060172 | Skladem | 15,54 Kč | ||
| 30 | COTTER PIN 30903-0201670 | Skladem | 62,15 Kč | ||
| 31 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
| 32 | RETURN SPRING 6100-080005 | Skladem | 72,60 Kč | ||
| 33 | WASHER 2 A000-080007-10000 | Skladem | 31,07 Kč | ||
| 34 | REAR BRAKE PEDAL ASSY MAUD SPIRIT BLACK 6KMV-080300-B000-0BP00 | Skladem | 450,56 Kč | ||
| 35 | WASHER 1 A000-080006-10000 | Skladem | 31,07 Kč | ||
| 36 | MAB HYDRAULIC BRAKE ASSY 6KIV-081000-2000-M1 | Skladem | 14 464,39 Kč | ||
| 37 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 38 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
