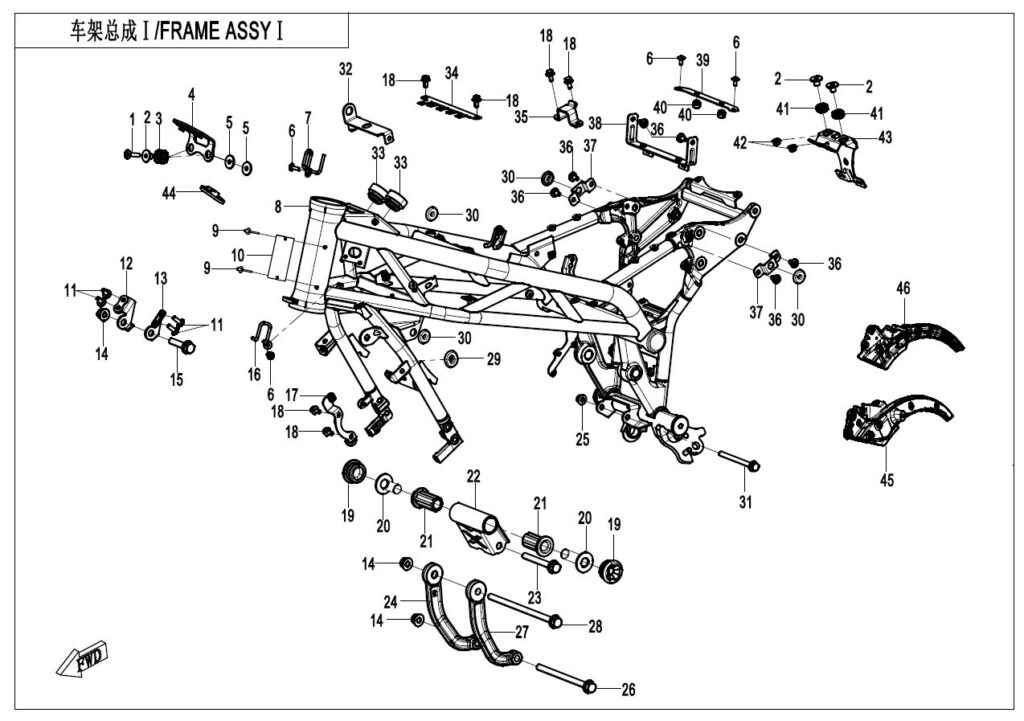

F03-1 FRAME 1
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | INNER HEX SCREW M6x25 6WWV-047002-5000 | Skladem | 15,54 Kč | ||
| 2 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 3 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 4 | DASHBOARD BRACKET 6KMV-030270-M300 | Skladem | 62,15 Kč | ||
| 5 | Podložka 30306-060142 | Skladem | 15,54 Kč | ||
| 6 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 7 | FRAME RH WIRE CLIP 6KMV-030008-M300 | Skladem | 31,07 Kč | ||
| 8 | FRONT FRAME ASSEMBLY 6KMV-031000-M301-01-0BP00 | Skladem | 15 458,72 Kč | ||
| 9 | SELF-PLUGGING RIVET 4.2X 8 30902-0420820 | Není skladem | 15,54 Kč | ||
| 10 | VIN PLATE 6KMV-190011-2800-10 | 1 | |||
| 10 | VIN PLATE 6KMV-190011-2800 | 1 | |||
| 11 | INNER HEX SCREW M6x16 6WWV-046802-5000 | Skladem | 15,54 Kč | ||
| 12 | HEADLIGHT RH BRACKET 6KMV-030220-M300 | Skladem | 31,07 Kč | ||
| 13 | HEADLIGHT LH BRACKET 6KMV-030210-M300 | Skladem | 31,07 Kč | ||
| 14 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 15 | BOLT M10x1.25×45 30006-102045810 | Skladem | 46,61 Kč | ||
| 16 | FRAME LH WIRE CLIP 6KMV-030007-M300 | Skladem | 31,07 Kč | ||
| 17 | RADIATOR RH GUARD LOWER BRACKET 6KMV-030014-M300 | Skladem | 46,61 Kč | ||
| 18 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 19 | FRONT DECO CLASP, FRAME 6GU#-140097-6000 | Skladem | 62,15 Kč | ||
| 20 | T-TYPE BUSHING ASSY 6KMV-030030-2000 | Skladem | 203,28 Kč | ||
| 21 | FRONT DAMPING RUBBER, ENGINE 6KMV-030003-2000 | Skladem | 201,97 Kč | ||
| 22 | FRONT CONNECTING BRACKET, ENGINE 6KMV-030010-2000 | Skladem | 295,19 Kč | ||
| 23 | Šroub 30006-102080810 | Skladem | 62,15 Kč | ||
| 24 | RH BRACKET, ENGINE 6KMV-030002-2001 | Skladem | 528,24 Kč | ||
| 25 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 26 | Šroub 30006-102140810 | Skladem | 93,22 Kč | ||
| 27 | LH BRACKET, ENGINE 6KMV-030001-2001 | Skladem | 528,24 Kč | ||
| 28 | BOLT M10x1.25×180 30006-102180810 | Skladem | 139,83 Kč | ||
| 29 | RUBBER HEAD 6KWV-041114-1000 | Skladem | 31,07 Kč | ||
| 30 | M6 RUBBER SLEEVE 6KMV-041112-3000 | Skladem | 15,54 Kč | ||
| 31 | BOLT M8x90 30006-080090810 | Skladem | 31,07 Kč | ||
| 32 | ABS BRACKET 6KMV-030250-M301 | Skladem | 124,29 Kč | ||
| 33 | CUSHION RUBBER WAHSER 6AQV-120002-7100 | Skladem | 31,07 Kč | ||
| 34 | CABLE CONNECTOR BRACKET 6KMV-030011-M300 | Skladem | 46,61 Kč | ||
| 35 | FRONT SEAT LIMIT PLATE 6KMV-030010-M300 | Skladem | 46,61 Kč | ||
| 36 | INNER HEX SCREW M6x12 6KM#-040702-8000 | Skladem | 31,07 Kč | ||
| 37 | SIDE COVER REAR BRACKET 6KMV-030006-M300 | Skladem | 31,07 Kč | ||
| 38 | BATTERY LOWER BRACKET 6KMV-030360-M300 | Skladem | 108,75 Kč | ||
| 39 | BATTERY PRESS PLATE 6KMV-030009-M300 | Skladem | 77,68 Kč | ||
| 40 | RUBBER 6WWV-045801-5000 | Skladem | 15,54 Kč | ||
| 41 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 42 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 43 | TAIL LIGHT BRACKET 6AQV-030370-7100 | Skladem | 261,36 Kč | ||
| 44 | DEAD BOLT PLATE 6AQV-033098-7100 | Skladem | 31,07 Kč | ||
| 45 | REAR LH FENDER BRACKET 6KMV-035000-M300 | Skladem | 4 319,12 Kč | ||
| 46 | REAR RH FENDER BRACKET 6KMV-036000-M300 | Skladem | 4 319,12 Kč | ||
