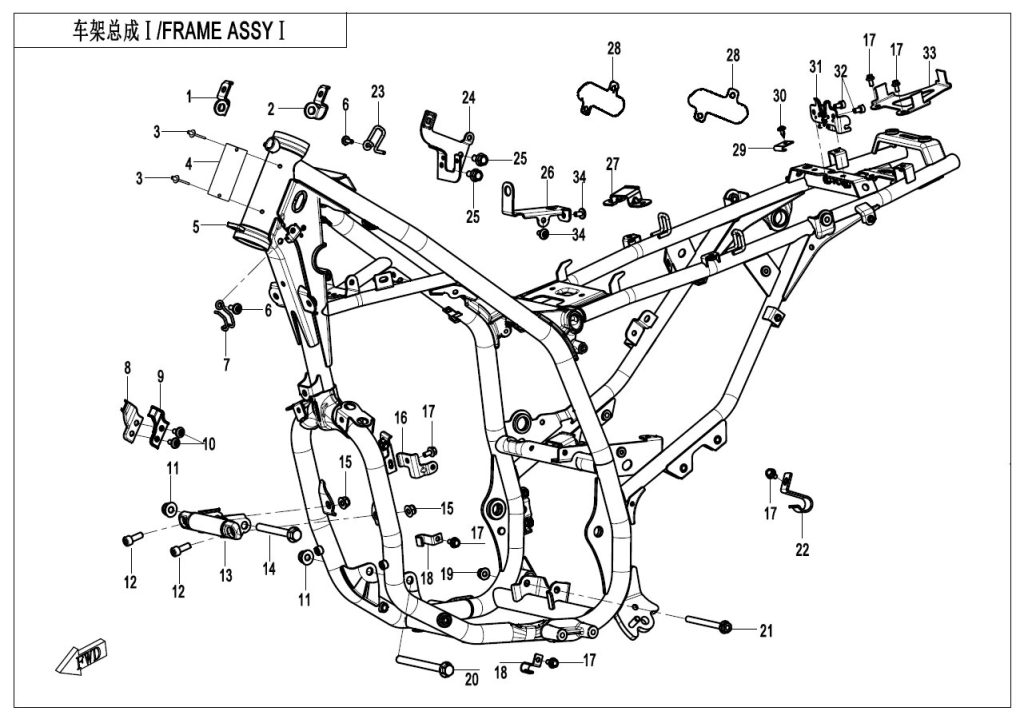

F03-1 FRAME 1
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT REFLECTOR RH BRACKET 6BMV-031741-1000 | Skladem | 46,61 Kč | ||
| 1 | FRONT REFLECTOR RH BRACKET 6BMV-031741-1001 | Skladem | |||
| 2 | FRONT REFLECTOR LH BRACKET 6BMV-031731-1000 | Skladem | 46,61 Kč | ||
| 2 | FRONT REFLECTOR LH BRACKET 6BMV-031731-1001 | Skladem | |||
| 3 | BLIND RIVET 30902-0400820 | Skladem | 15,54 Kč | ||
| 4 | VIN PLATE 6BMV-190011-1100 | Skladem | |||
| 5 | FRAME ASSY 6BMV-031000-1100-0BP00 | Skladem | 13 563,28 Kč | ||
| 6 | INNER HEX SCREW M6x16 6WWV-046802-5000 | Skladem | 15,54 Kč | ||
| 7 | MAIN CABLE CLIP 1 6BMV-035541-1000 | Skladem | 31,07 Kč | ||
| 8 | FRONT BRAKE FLUID BRACKETⅡ 6BMV-030851-1100 | Skladem | 62,15 Kč | ||
| 9 | FRONT BRAKE FLUID BRACKET 6BMV-030841-1100 | Skladem | 46,61 Kč | ||
| 10 | INNER HEX STEPPED SCREW M6x14 6WWV-046602-5000 | Skladem | 15,54 Kč | ||
| 11 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 12 | SCREW M8x20 30102-080020870 | Skladem | 15,54 Kč | ||
| 13 | ENGINE FRONT TRIPLE CLAMP ASSY 6BMV-030010-1001-0BP00 | Skladem | 372,87 Kč | ||
| 14 | BOLT 30006-102085110 | Skladem | 46,61 Kč | ||
| 15 | LOCK NUT 30202-080170 | Skladem | 31,07 Kč | ||
| 16 | CANISTER LOWER MOUNTING ASSY 6BMV-033630-1100 | Skladem | 46,61 Kč | ||
| 17 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 18 | OVERFLOW PIPE RETAINING CLIP 6BMV-031286-1000 | Skladem | 31,07 Kč | ||
| 19 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 20 | BOLT 30006-102115810 | Skladem | 62,15 Kč | ||
| 21 | BOLT M8x90 30006-080090810 | Skladem | 31,07 Kč | ||
| 22 | FIXING CLIP 6GUV-030012-5700 | Skladem | 31,07 Kč | ||
| 23 | FRAME LH WIRE CLIP 6KMV-030007-M300 | Skladem | 31,07 Kč | ||
| 24 | SECONDARY GULP VALVE BRACKET ASSY 6BMV-035680-1100 | Skladem | 155,36 Kč | ||
| 25 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 26 | ABS BRACKET 6BMV-030811-1100 | Skladem | 62,15 Kč | ||
| 27 | FRONT SEAT BRACKET 6BMV-031311-1000 | Skladem | 77,68 Kč | ||
| 28 | SIDE COVER FRONT DECO PLATE 6BMV-034115-1000 | Skladem | 77,68 Kč | ||
| 29 | TIE BAND BRACKET, TOOLS KIT A000-030005 | Skladem | 46,61 Kč | ||
| 30 | SELF-TAPPING SCREW 30110-481130070 | Skladem | 15,54 Kč | ||
| 31 | SEAT LOCK SEAT 6BLV-010320-1000-M1 | Skladem | 139,83 Kč | ||
| 32 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 33 | ECU BRACKET 6BMV-035601-1100 | Skladem | 62,15 Kč | ||
| 34 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
